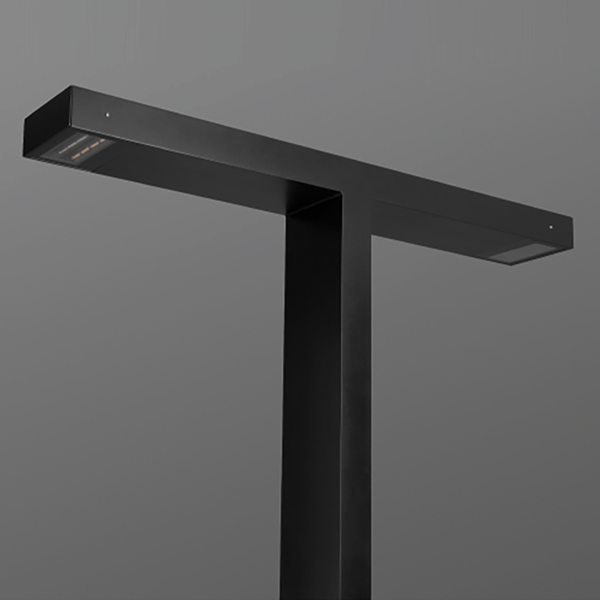

ANI T TYPE POLE

  • Technical Specifications
  • Pole
    Aluminium profile
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    4 mm Tempered Glass
  • Screws
    316L Stainless Steel
  • Glands
    PG 11
ORDER FORM
EMFA’s ANI pole mounted series have been designed for high efficiency and ease of installation incorporating the latest in LED technology and control systems. The special lens directs the light flow precisely and makes the whole luminaire system efficient. This compact and essential design is made of a combination of aluminium profile and die cast aluminium.

ACCESSORIES & IMAGES

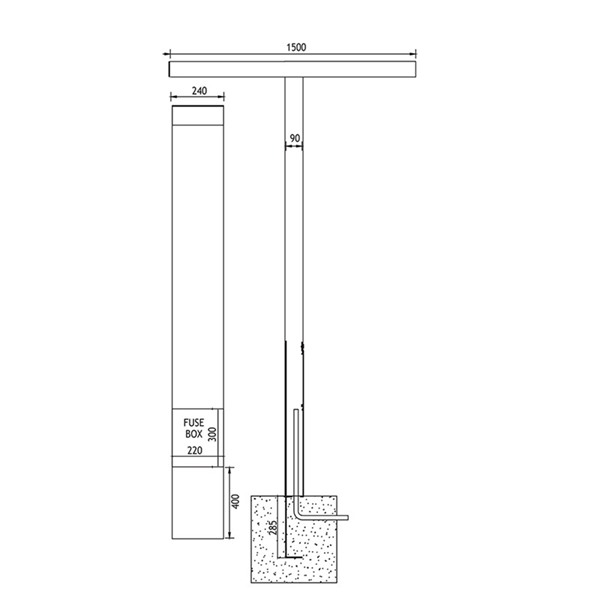

PRODUCT DRAWINGS

  • ANI T TYPE POLE
  • ANI T TYPE POLE
  • ANI T TYPE POLE
  • ANI T TYPE POLE
  • ANI T TYPE POLE

PRODUCT LIST & DOWNLOAD

  • Compare
    462001
    • Product Name
      4 T Type Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x24 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    462002
    • Product Name
      4 T Type Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x24 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    462011
    • Product Name
      4 T Type Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x48 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    462012
    • Product Name
      4 T Type Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x48 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    462101
    • Product Name
      4 T Type Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x24 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    462102
    • Product Name
      4 T Type Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x24 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    462111
    • Product Name
      4 T Type Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x48 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    462112
    • Product Name
      4 T Type Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x48 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    462201
    • Product Name
      4 T Type Pole (6000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x24 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    462202
    • Product Name
      4 T Type Pole (6000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x24 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    462211
    • Product Name
      4 T Type Pole (6000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x48 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    462212
    • Product Name
      4 T Type Pole (6000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      2x48 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP65
    • LED
      Linear LEDs
