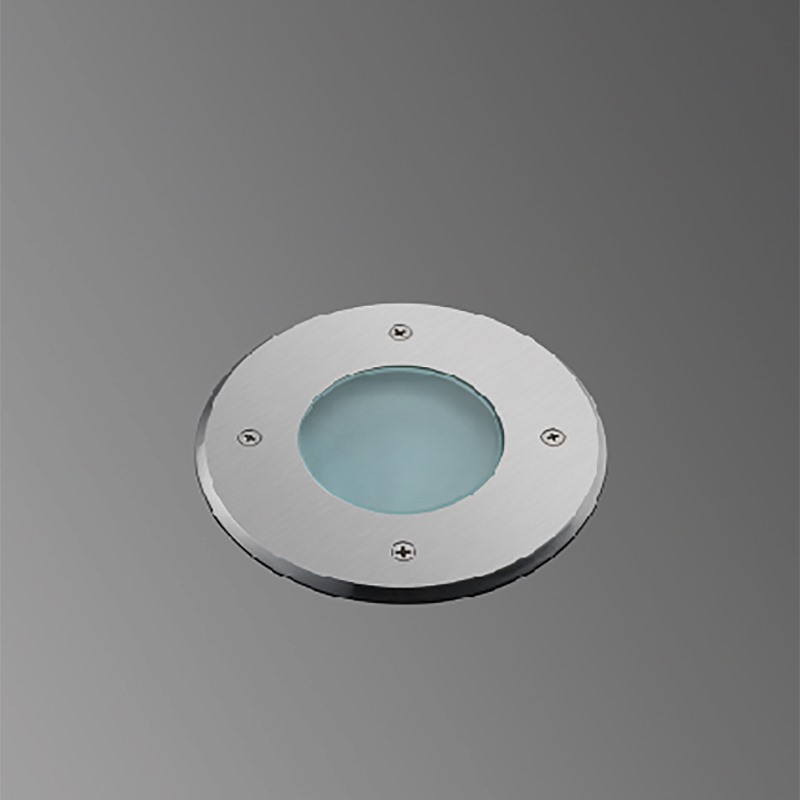

MILET - Walk Over

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    12 mm Tempered Glass
  • Glands
    1 x PG 9
  • Cover
    316L Stainless Steel

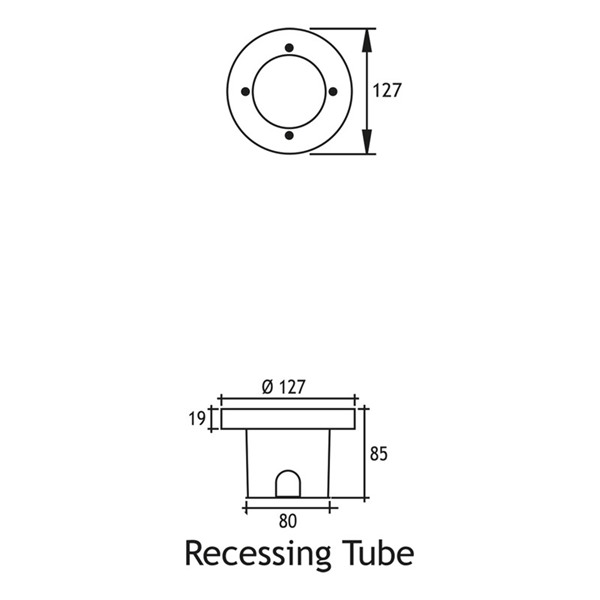

  • Recessing Box
    Polycarbonate
Customization” is EMFA’s standard

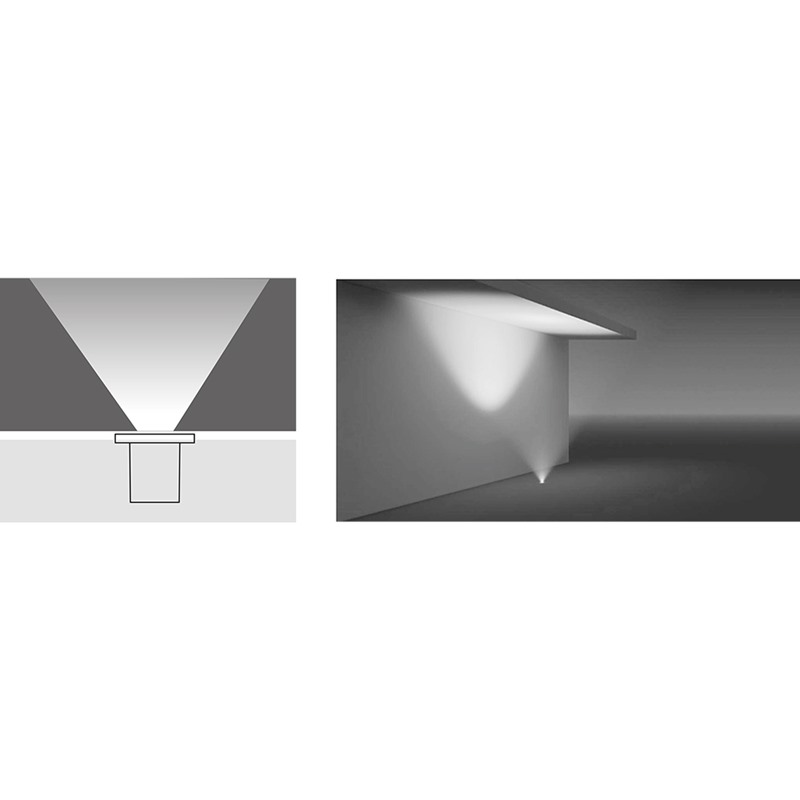

The Milet Recessed series consists of a range of LED sources to deliver the desired light effect to facades, columns, bridges, monuments, and trees. The fixtures are made of a combination of a 316L stainless steel cover and die cast aluminium body painted with electrostatic powder paint. Tempered glass, silicone gaskets and cast resin complete the fixture to make it IP67 IK10 and withstand rough environments. For the LED versions, a specially developed potted power cable is used to effectively bond with the cast resin and stop any water ingress. Alternatively, a PG9 cable gland allows for a secure connection of the on-site cable. A polycarbonate recessing box is included for installation into concrete or the ground. The LEDs used come in 4 different tones of white, as well as blue, red, green, amber and RGB. Several lenses from 10 to 40 degrees are available to choose from to achieve the desired light effect.

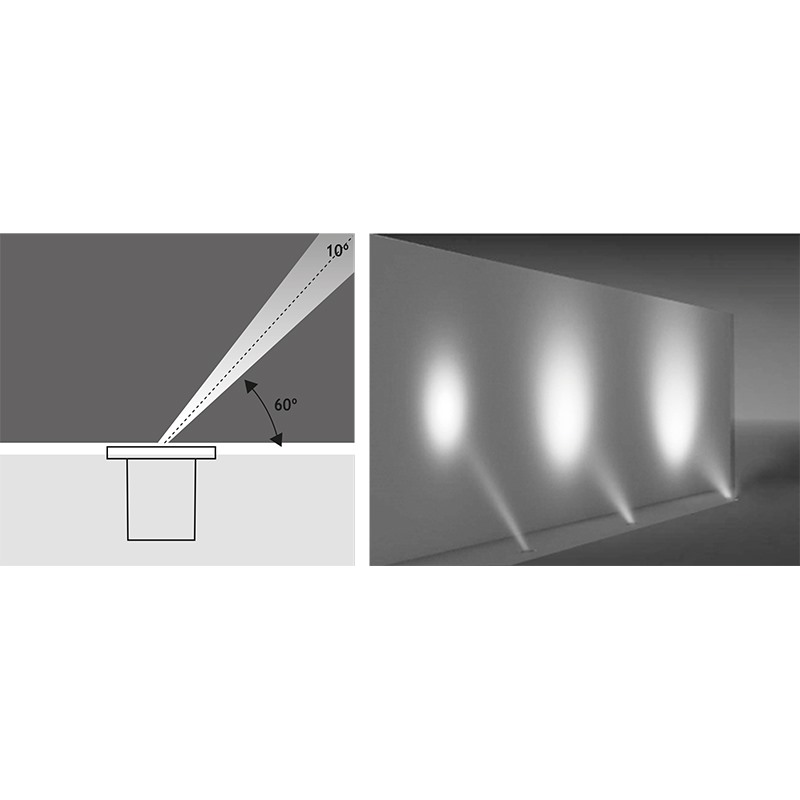

Asymmetric LEDs

In this catalogue EMFA is introducing the tilted LED fixtures. These fixtures give an asymmetrical light output to facades, columns, bridges, monuments, and trees without losing light to the sky. The die cast aluminium body has a fixed built in tilt to allow for proper heat dissipation of the LEDs that can run up to 350mA.

PRODUCT LIST & DOWNLOAD

  • Compare

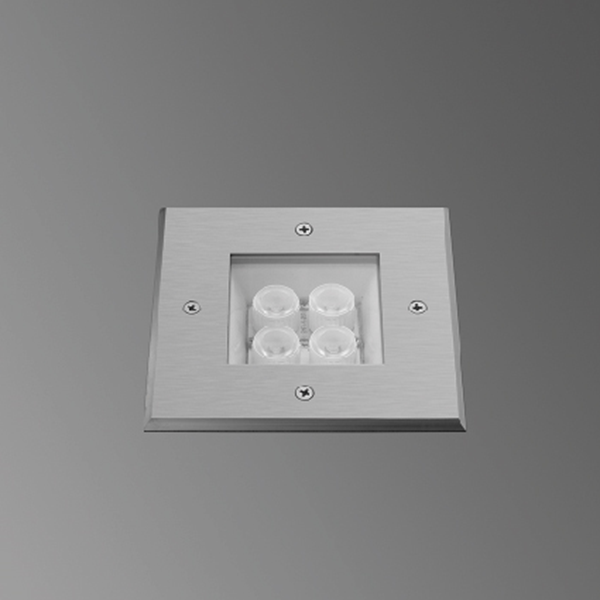

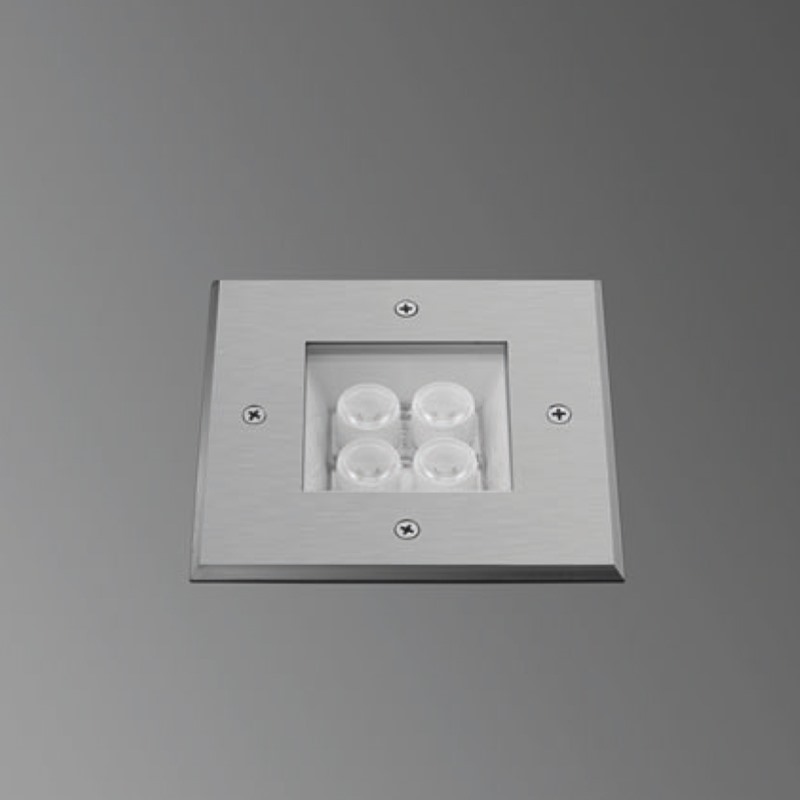

    MILET - Led - Walk Over
    • Product Name
      MILET - Led - Walk Over
    • Code Number
      425211
    • Power - Current
      4 W
    • Kelvin
      3000 K
    • Real Lumen Output
      380 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Square

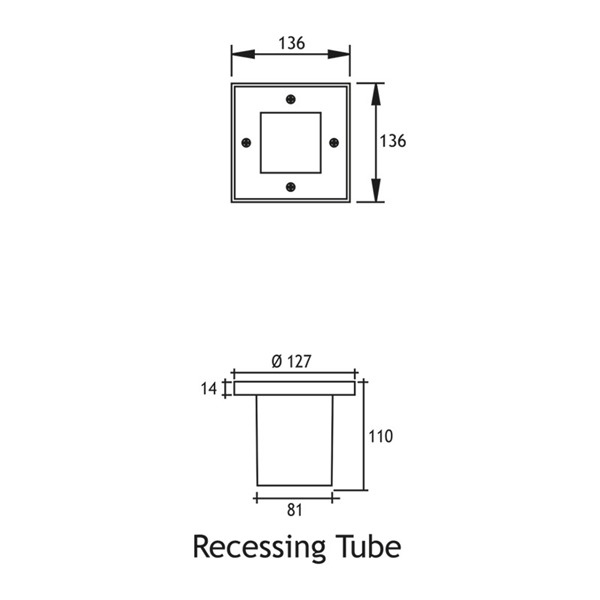

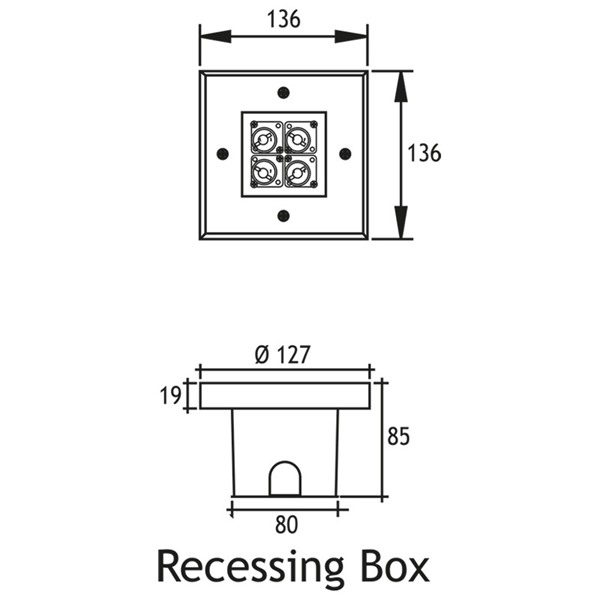

    • Dimension
      136 x 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare
    MILET - Led - Walk Over
    • Product Name
      MILET - Led - Walk Over
    • Code Number
      425216
    • Power - Current
      4 W
    • Kelvin
      4000 K
    • Real Lumen Output
      387 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Square
    • Dimension
      136 x 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare

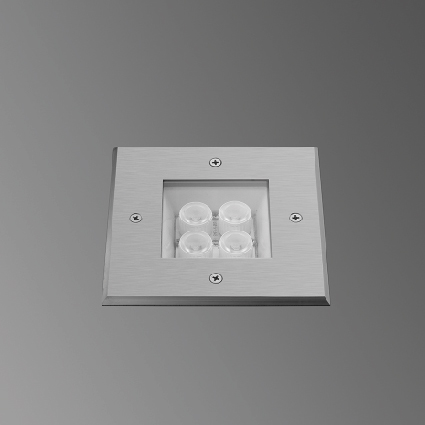

    MILET - Led - Walk Over
    • Product Name
      MILET - Led - Walk Over
    • Code Number
      425217
    • Power - Current
      4 W
    • Kelvin
      6000 K
    • Real Lumen Output
      395 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Square
    • Dimension
      136 x 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare

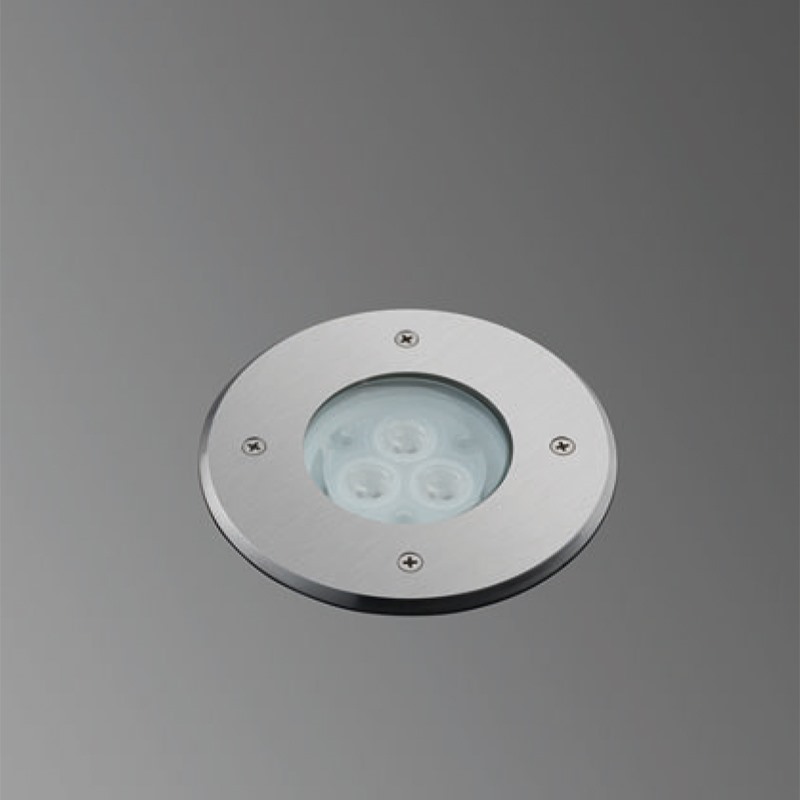

    MILET - Led - Walk Over
    • Product Name
      MILET - Led - Walk Over
    • Code Number
      425201
    • Power - Current
      4 W
    • Kelvin
      3000 K
    • Real Lumen Output
      380 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Round

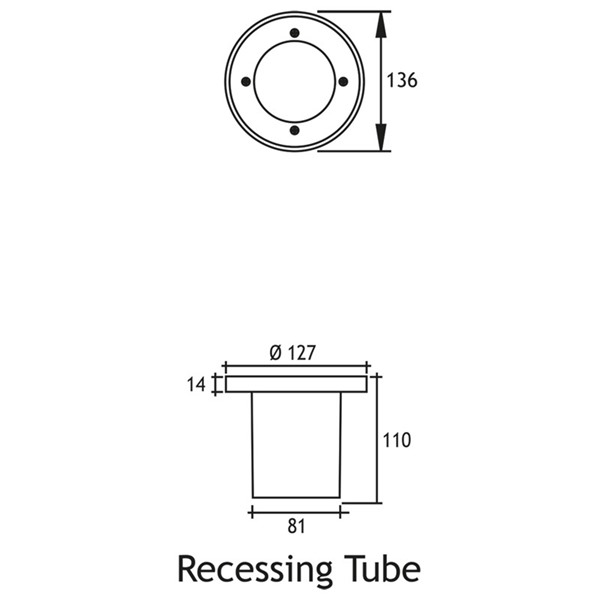

    • Dimension

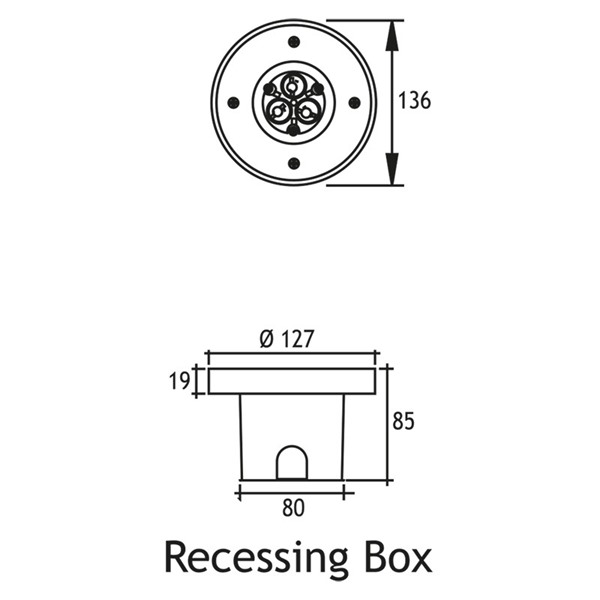

      Ø 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare
    MILET - Led - Walk Over
    • Product Name
      MILET - Led - Walk Over
    • Code Number
      425206
    • Power - Current
      4 W
    • Kelvin
      4000 K
    • Real Lumen Output
      387 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Round
    • Dimension
      Ø 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare

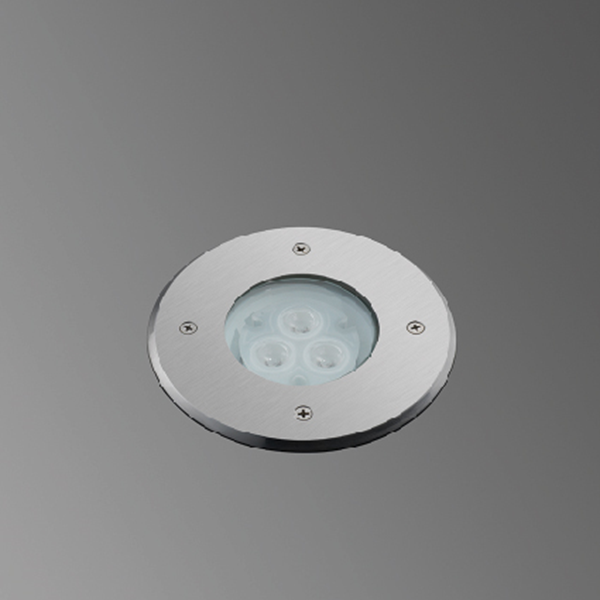

    MILET - Led - Walk Over
    • Product Name
      MILET - Led - Walk Over
    • Code Number
      425207
    • Power - Current
      4 W
    • Kelvin
      6000 K
    • Real Lumen Output
      395 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Round
    • Dimension
      Ø 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare
    MILET - Led - Walk Over
    • Product Name
      MILET - Led - Walk Over
    • Code Number
      425202
    • Power - Current
      4 W
    • Kelvin
      2700 K
    • Real Lumen Output
      380 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Round
    • Dimension
      Ø 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare
    MILET - Led - Walk Over
    • Product Name
      MILET - Led - Walk Over
    • Code Number
      425212
    • Power - Current
      4 W
    • Kelvin
      2700 K
    • Real Lumen Output
      380 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Square
    • Dimension
      136 x 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare

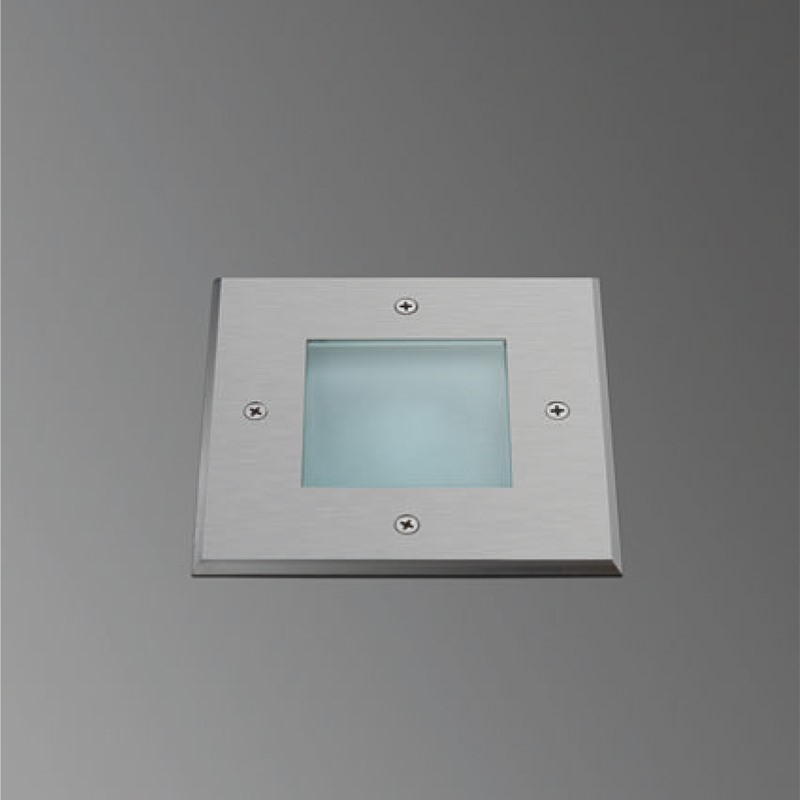

    MILET - Led Lamp - Walk Over
    • Product Name
      MILET - Led Lamp - Walk Over
    • Code Number
      316121
    • Power - Current
      Led Lamp
    • Lampholder
      G 9
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Square
    • Dimension
      136 x 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare

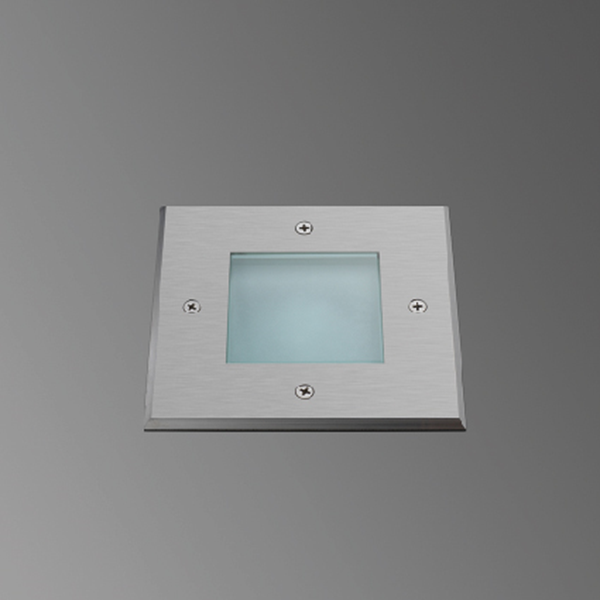

    MILET - Led Lamp - Walk Over
    • Product Name
      MILET - Led Lamp - Walk Over
    • Code Number
      316131
    • Power - Current
      Led Lamp
    • Lampholder
      Gu10
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Square
    • Dimension
      136 x 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare
    MILET - Led Lamp - Walk Over
    • Product Name
      MILET - Led Lamp - Walk Over
    • Code Number
      317121
    • Power - Current
      Led Lamp
    • Lampholder
      G 9
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Round
    • Dimension
      Ø 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare

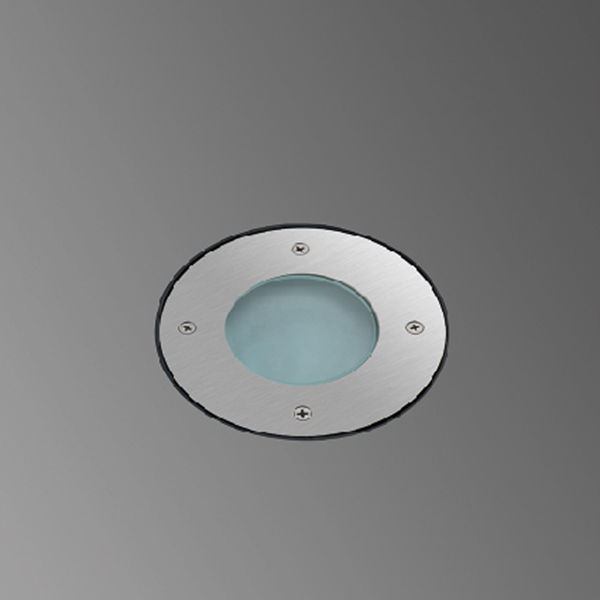

    MILET - Led Lamp - Walk Over
    • Product Name
      MILET - Led Lamp - Walk Over
    • Code Number
      317131
    • Power - Current
      Led Lamp
    • Lampholder
      Gu10
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Round
    • Dimension
      Ø 136 x 110 mm / Recessing Box Ø 127 mm
  • Compare

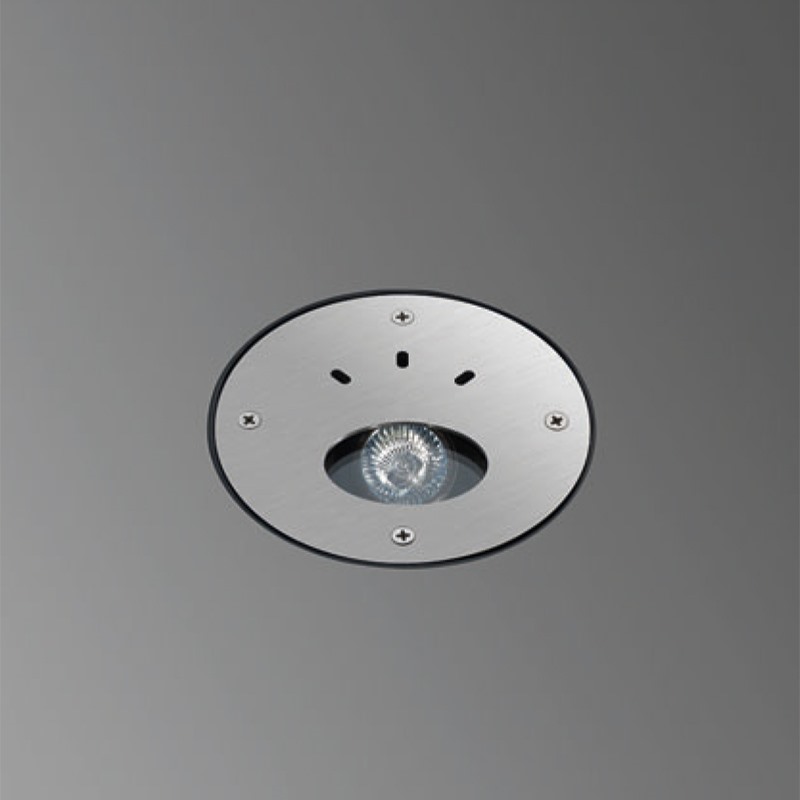

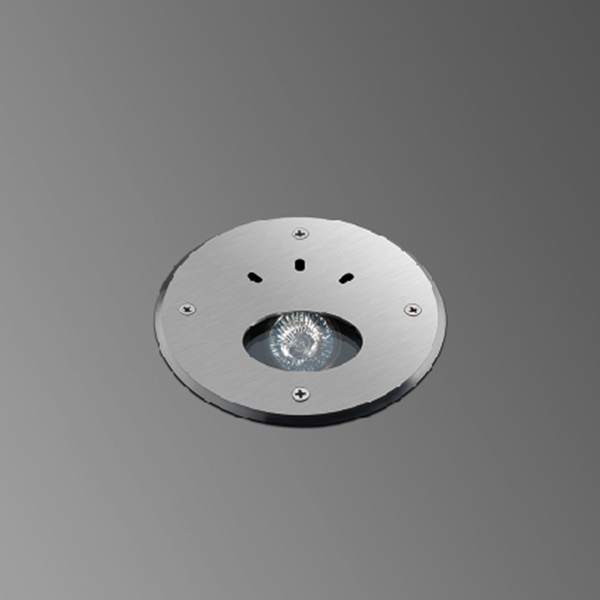

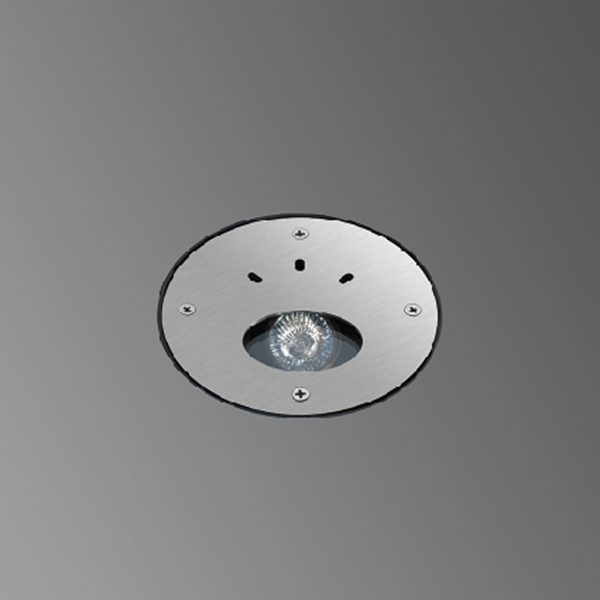

    MILET - Led Lamp - Walk Over
    • Product Name
      MILET - Led Lamp - Walk Over
    • Code Number
      319101
    • Power - Current
      Led Lamp
    • Lampholder
      Gu4 12V
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Mounting
      Step Mounted
    • Product Type
      Round
    • Dimension

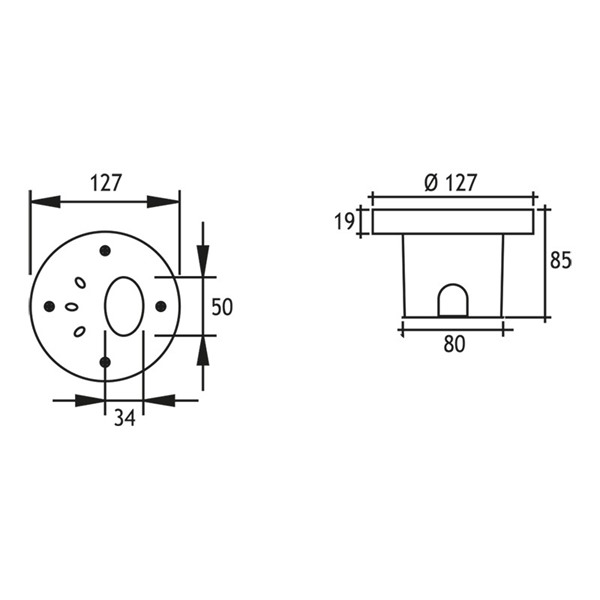

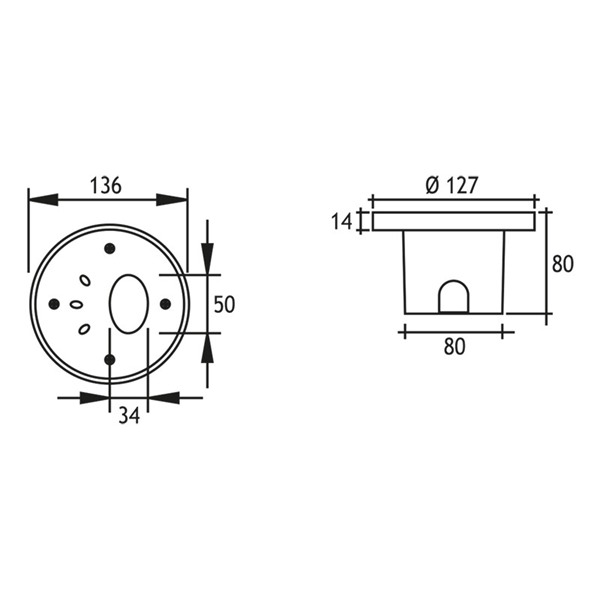

      Ø 136 (Step) / Ø 127 (Flush) x 110 mm / Recessing Box Ø 127 mm
  • Compare
    MILET - Led Lamp - Walk Over
    • Product Name
      MILET - Led Lamp - Walk Over
    • Code Number
      319201
    • Power - Current
      Led Lamp
    • Lampholder
      Gu4 12V
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Mounting
      Flush Mounted
    • Product Type
      Round
    • Dimension
      Ø 136 (Step) / Ø 127 (Flush) x 110 mm / Recessing Box Ø 127 mm
