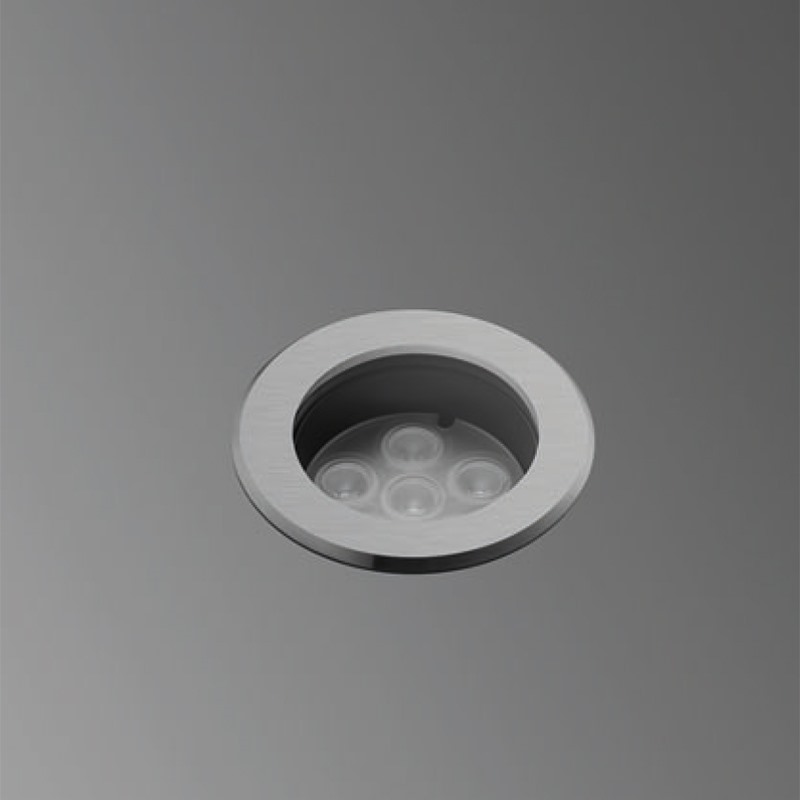

Patnos 3 Deep

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Screws
    316L Stainless steel
  • Cover
    316L Stainless steel

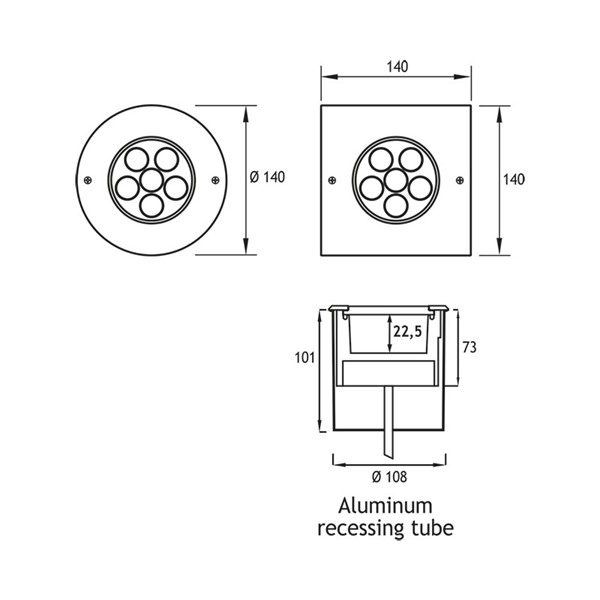

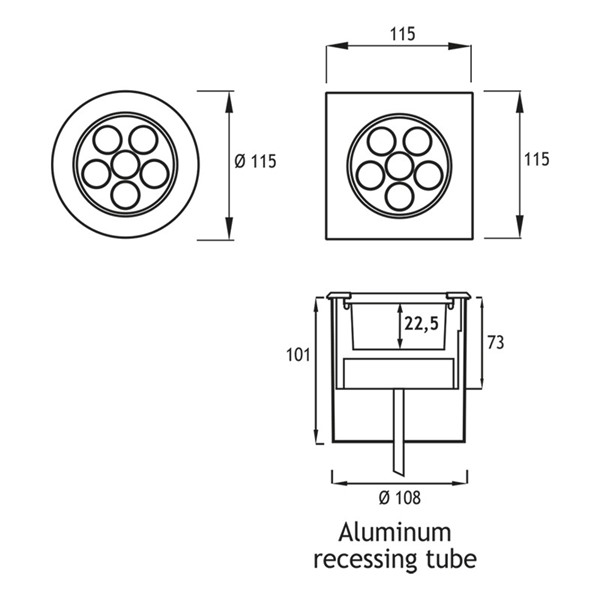

  • Recessing Box
    Aluminium
Customization” is EMFA’s standard

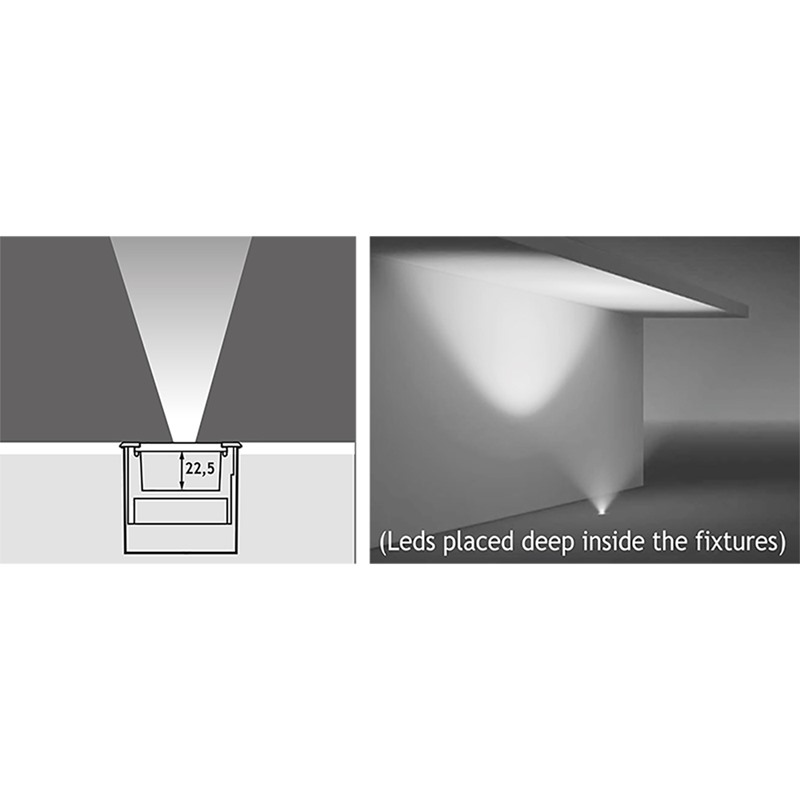

The Patnos series is an adaption of the Belkis Recessed series using less or no visible screws. No screws are visible on the cover if silicone is used to glue the fixture to the recessing tube. The series is designed to light walls, facades, columns, monuments, and trees. The fixtures are made of a combination of a 316L stainless steel cover and die cast aluminium body painted with electrostatic powder paint. Tempered glass, silicone gaskets and cast resin complete the fixture to make it IP67 IK10 and withstand rough environments. A specially developed potted power cable is used to effectively bond with the cast resin and stop any water ingress. The fixtures come with an aluminium recessing tube for easy mounting in the ground or concrete. The LEDs used come in 3 different tones of white, as well as blue, red, green, amber and RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired light effect.

Asymmetrical LEDs
In this catalogue EMFA is introducing the tilted LED fixtures. These fixtures give an asymmetrical light output to facades, columns, bridges, monuments, and trees without losing light to the sky. The die cast aluminium body has a fixed built in tilt to allow for proper heat dissipation of the LEDs that can run up to 700mA.

PRODUCT LIST & DOWNLOAD

  • Compare
    162401
    • Product Name
      Patnos 3
    • Mounting
      Fix to Recessing Tube with Silicone
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      3000 K
    • Lens
      10°,25°,40°
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Product Type

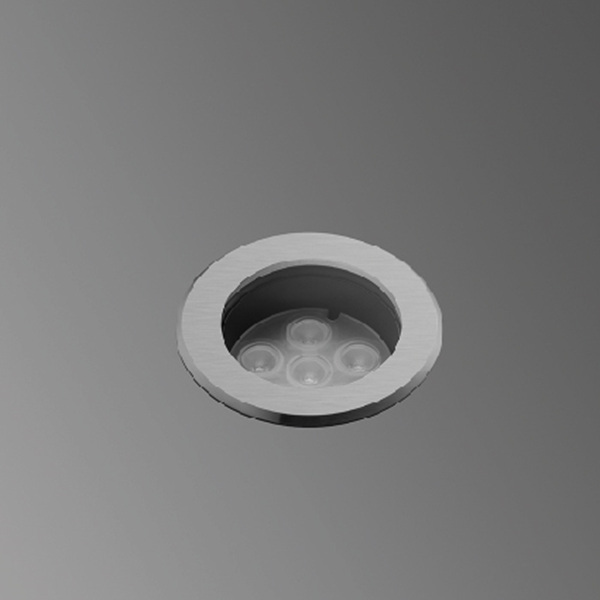

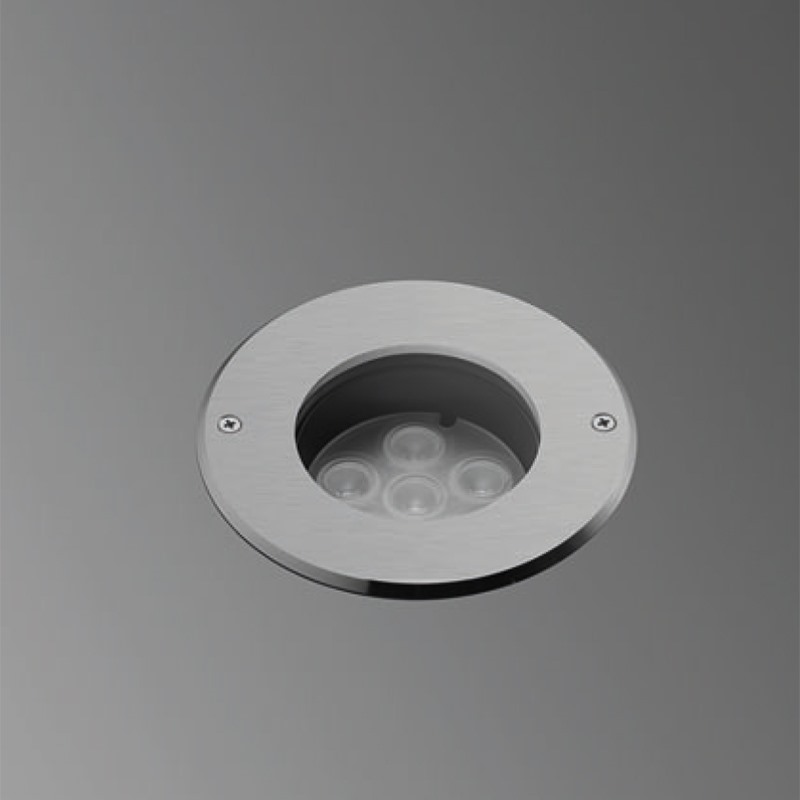

      Round
    • Tilt
      Symmetrical
    • IP
      IP67
  • Compare
    162402
    • Product Name
      Patnos 3
    • Mounting
      Fix to Recessing Tube with Silicone
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      4500 K
    • Lens
      10°,25°,40°
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Product Type
      Round
    • Tilt
      Symmetrical
    • IP
      IP67
  • Compare
    162403
    • Product Name
      Patnos 3
    • Mounting
      Fix to Recessing Tube with Silicone
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      6000 K
    • Lens
      10°,25°,40°
    • Lumen
      612 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Product Type
      Round
    • Tilt
      Symmetrical
    • IP
      IP67
  • Compare
    162411
    • Product Name
      Patnos 3
    • Mounting
      Fix to Recessing Tube with Silicone
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      3000 K
    • Lens
      10°,25°,40°
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Product Type

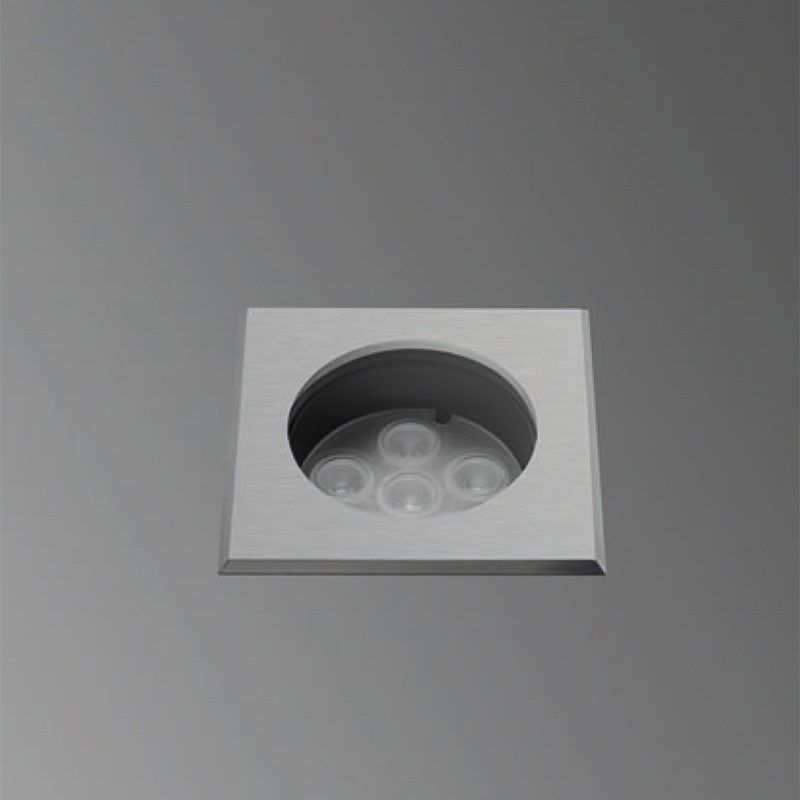

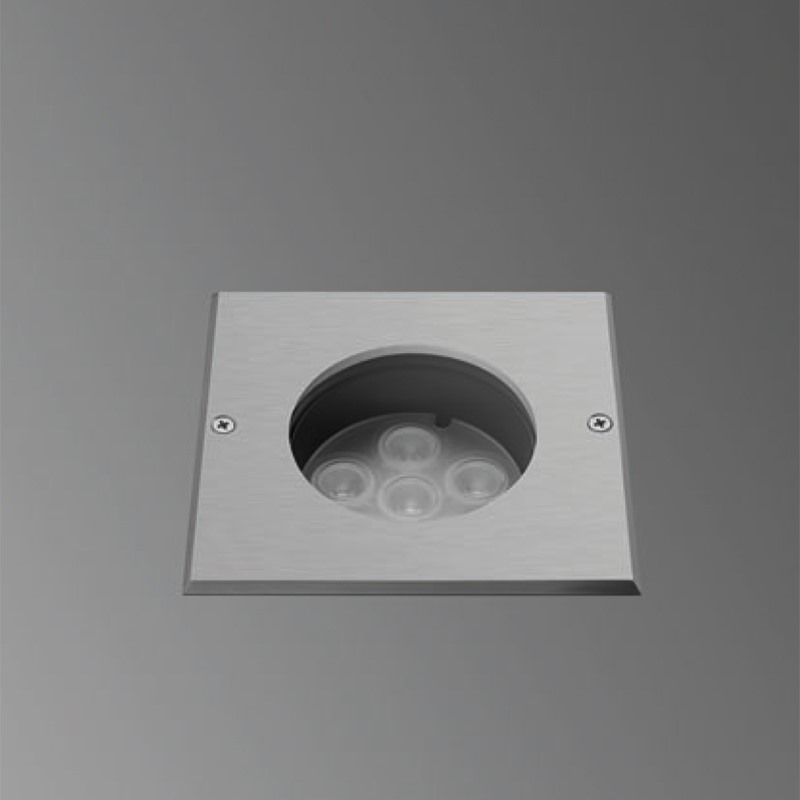

      Square
    • Tilt
      Symmetrical
    • IP
      IP67
  • Compare
    162412
    • Product Name
      Patnos 3
    • Mounting
      Fix to Recessing Tube with Silicone
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      4500 K
    • Lens
      10°,25°,40°
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Product Type
      Square
    • Tilt
      Symmetrical
    • IP
      IP67
  • Compare

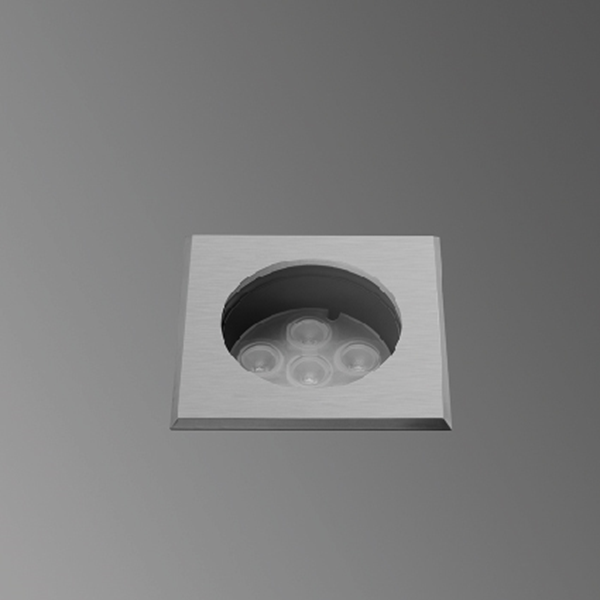

    162413
    • Product Name
      Patnos 3
    • Mounting
      Fix to Recessing Tube with Silicone
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      6000 K
    • Lens
      10°,25°,40°
    • Lumen
      612 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Product Type
      Square
    • Tilt
      Symmetrical
    • IP
      IP67
