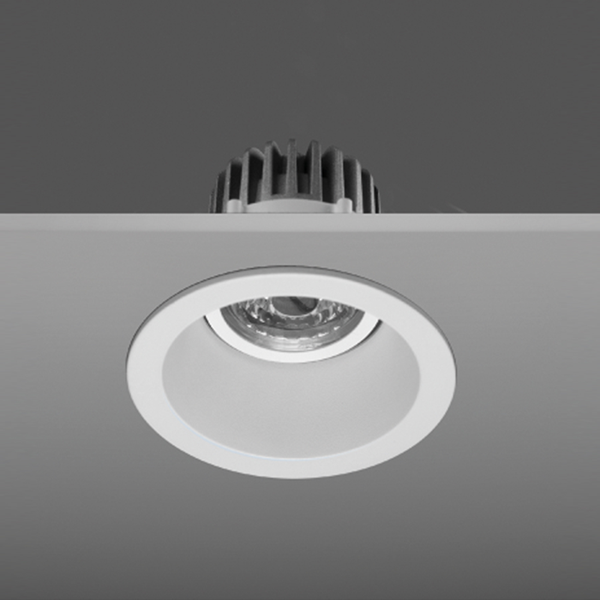

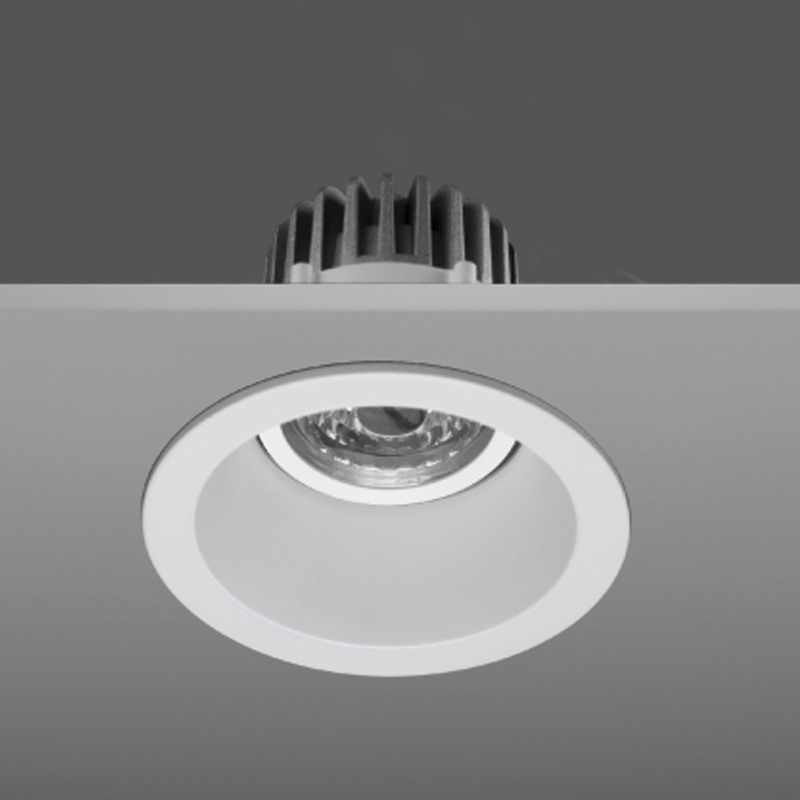

SATURN - Adjustable

  • Technical Specifications
  • Body
    Die cast aluminium
  • Paint
    Electrostatic powder paint RAL 9016 (available in other RAL colors)
  • Gear
    Non-Dimmable electronic LED driver (1-10V Dimmable and DALI drivers available on request)
  • Cable
    0.5m exiting from top of fixture
  • Springs
    Steel for mounting in ceilings of 1-25mm thickness
The Saturn LED Downlight is specially designed to provide highest energy efficiency in general lighting applications. Using latest LED technology in combination with special plastic moulding and paint application allows for around 90lm/W lighting output. The highly efficient diffuser provides a completely homogenous light output.

PRODUCT LIST & DOWNLOAD

  • Compare
    528101
    • Product Name
      SATURN - Adjustable
    • Power - Current
      6W COB LED
    • Color
      3000 K
    • Lumen
      460 lm
    • IP
      IP20
    • LED
      180 mA 6W / 250 mA 8W COB LED
  • Compare
    528102
    • Product Name
      SATURN - Adjustable
    • Power - Current
      6W COB LED
    • Color
      4000 K
    • Lumen
      510 lm
    • IP
      IP20
    • LED
      180 mA 6W / 250 mA 8W COB LED
  • Compare
    528103
    • Product Name
      SATURN - Adjustable
    • Power - Current
      6W COB LED
    • Color
      6000 K
    • Lumen
      545 lm
    • IP
      IP20
    • LED
      180 mA 6W / 250 mA 8W COB LED
  • Compare
    528111
    • Product Name
      SATURN - Adjustable
    • Power - Current
      8W COB LED
    • Color
      3000 K
    • Lumen
      520 lm
    • IP
      IP20
    • LED
      180 mA 6W / 250 mA 8W COB LED
  • Compare
    528112
    • Product Name
      SATURN - Adjustable
    • Power - Current
      8W COB LED
    • Color
      4000 K
    • Lumen
      560 lm
    • IP
      IP20
    • LED
      180 mA 6W / 250 mA 8W COB LED
  • Compare
    528113
    • Product Name
      SATURN - Adjustable
    • Power - Current
      8W COB LED
    • Color
      6000 K
    • Lumen
      644 lm
    • IP
      IP20
    • LED
      180 mA 6W / 250 mA 8W COB LED
