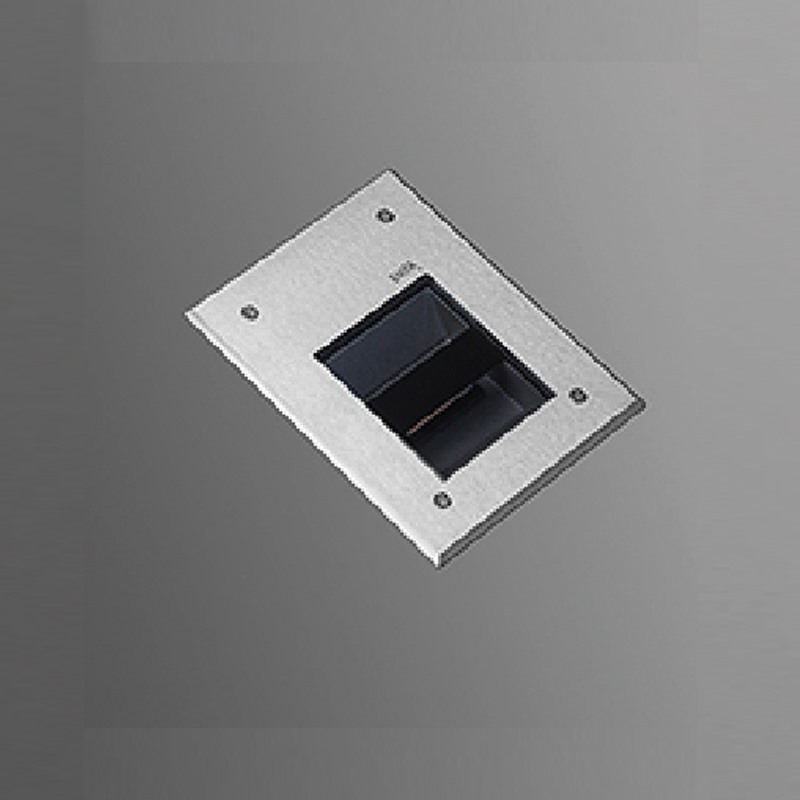

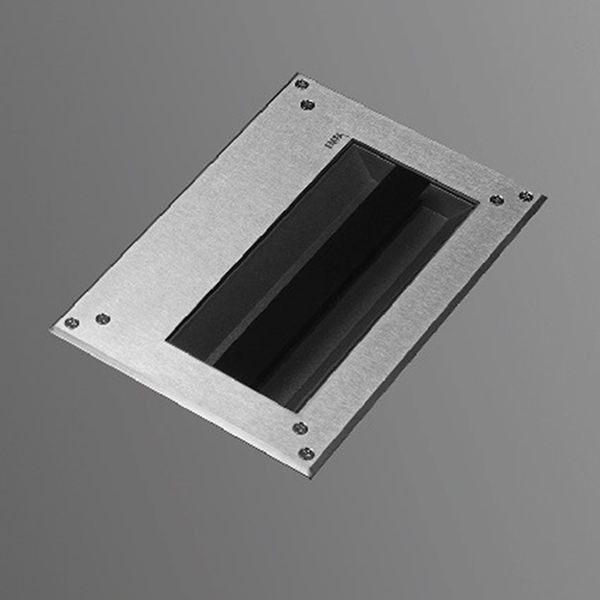

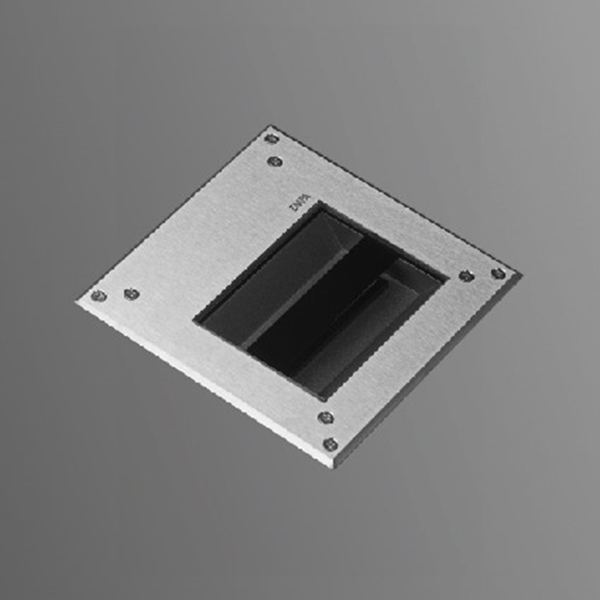

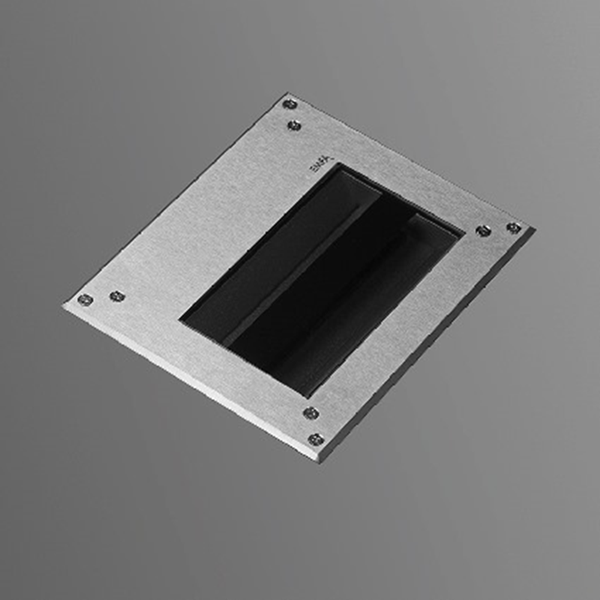

ANI 1-2-3-4 - Walk Over

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    8 mm Tempered Glass
  • Screws
    316L Stainless Steel
  • Cover
    316L Stainless steel
ORDER FORM
Customization” is EMFA’s standard
EMFA’s Ani step mounted series is specially designed to deliver low-glare lighting to facades, columns, monuments, and trees with minimal installation depth and narrow trim. The fixture is made of a combination of 316L stainless steel and die cast aluminium. The tilted design reduces the glare of the LED’s The Linear LEDs with special lenseS gives excellent wallwashing effect. An anti-slip glass is available upon request.

ACCESSORIES & IMAGES

PRODUCT DRAWINGS

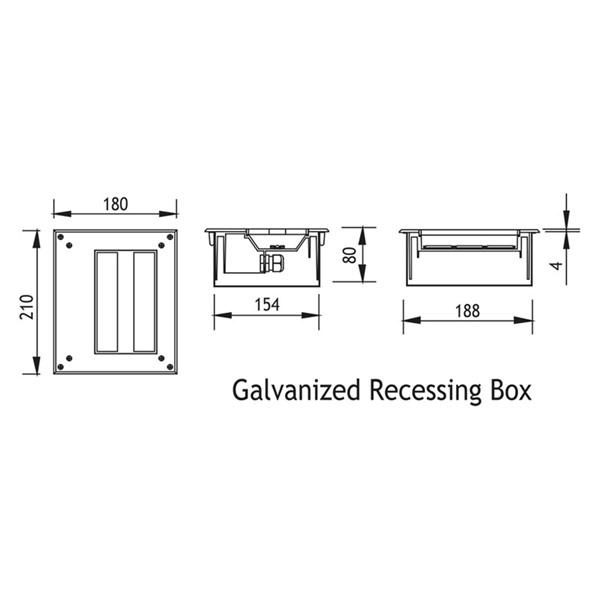

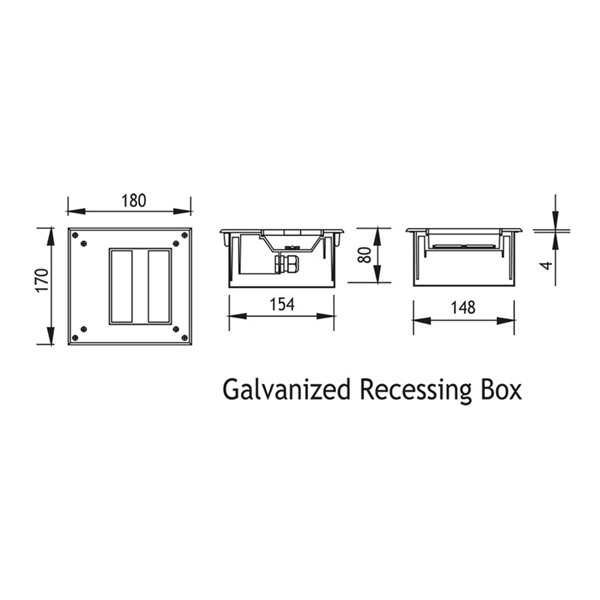

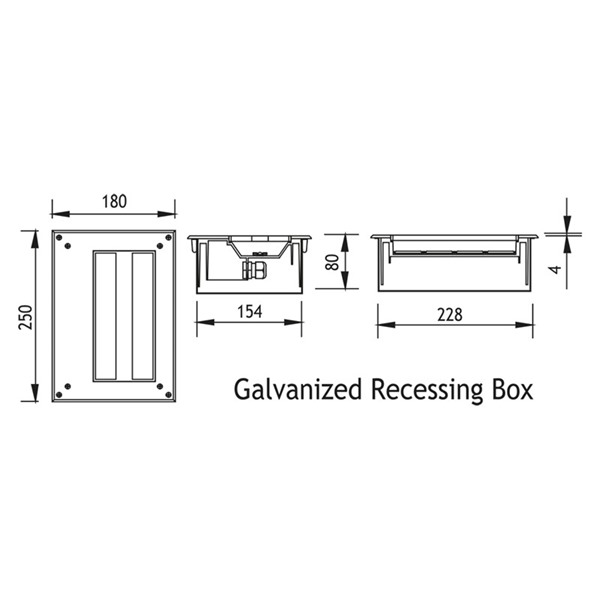

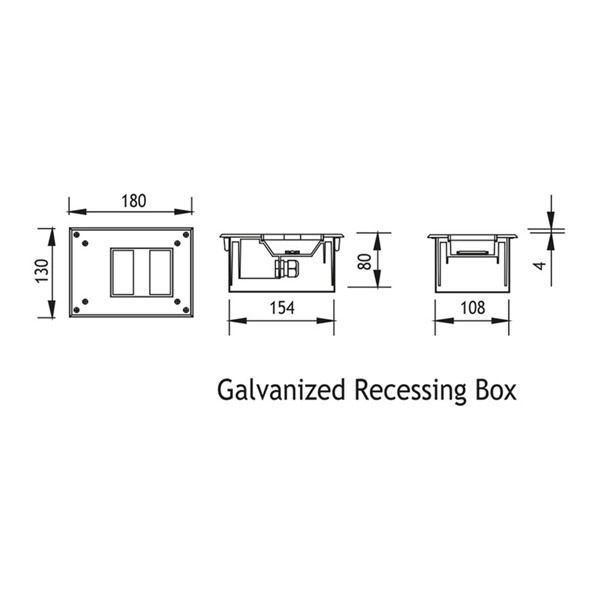

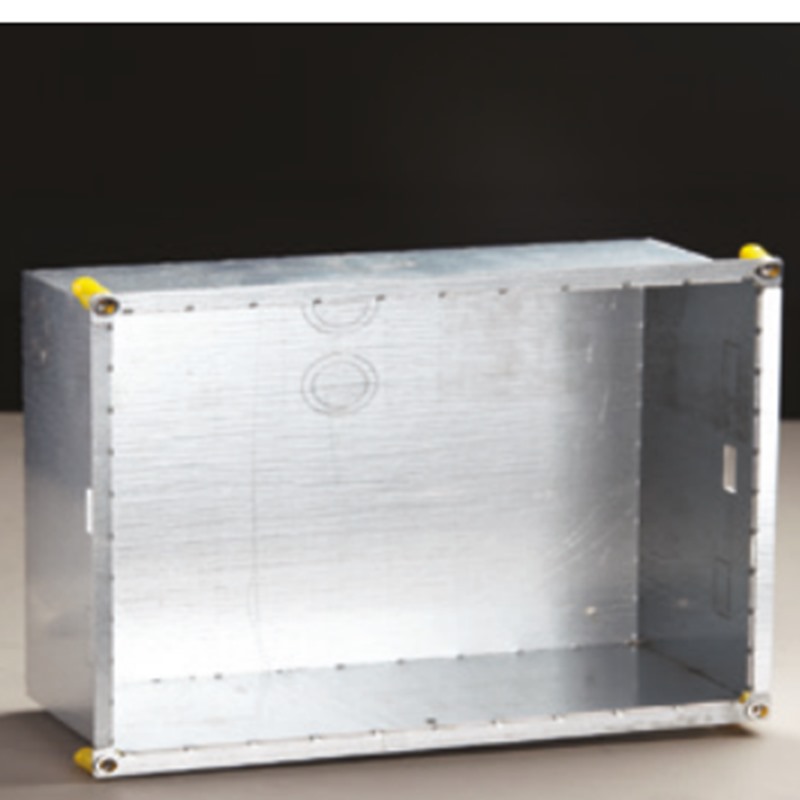

  • Galvanized Recessing Box

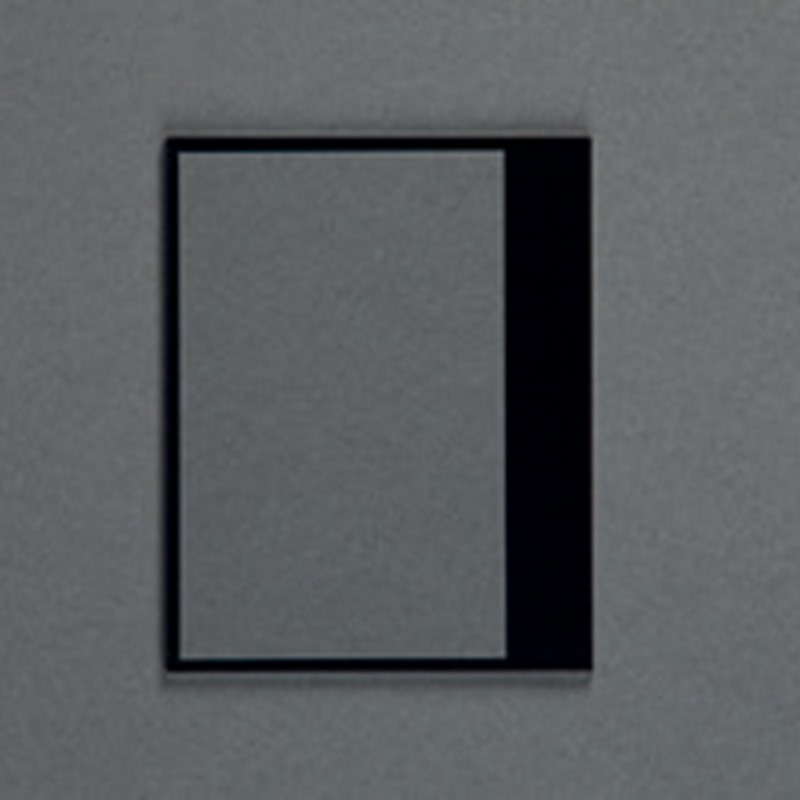

  • Asym. Glass
  • Trenched Glass

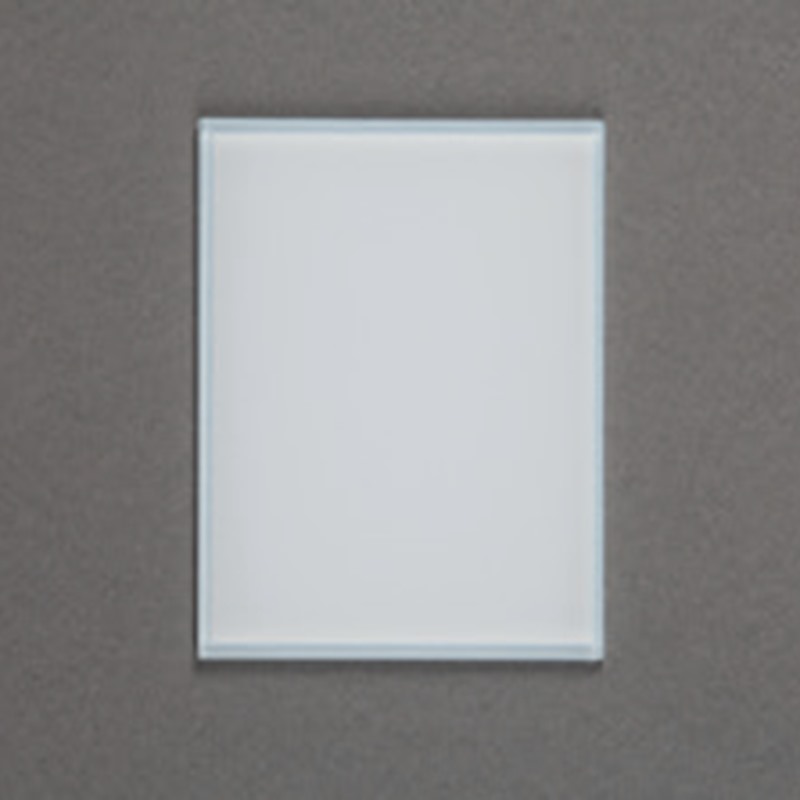

  • Milky Glass

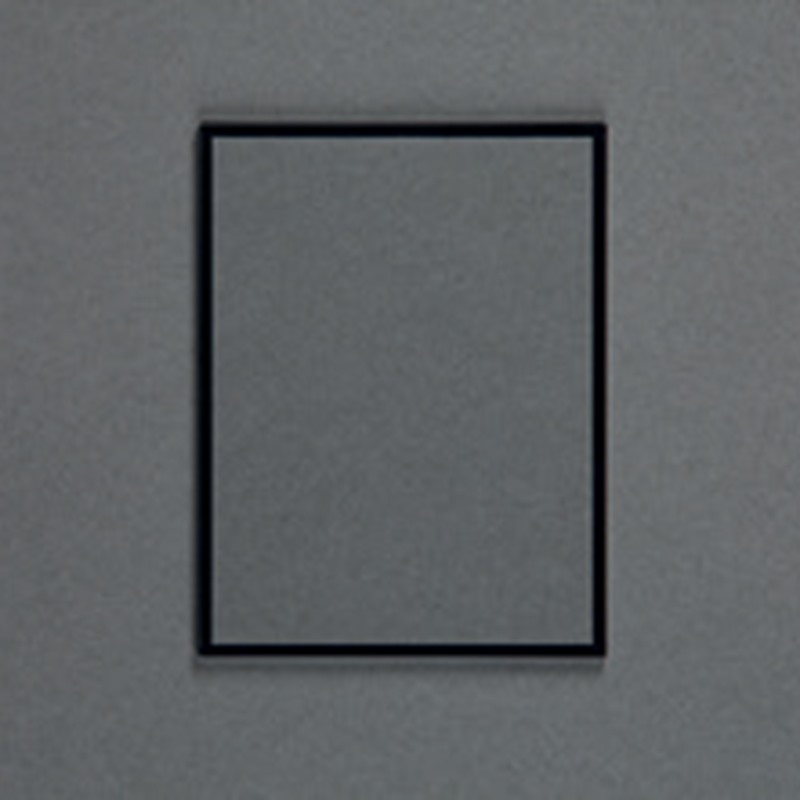

  • Clear Glass

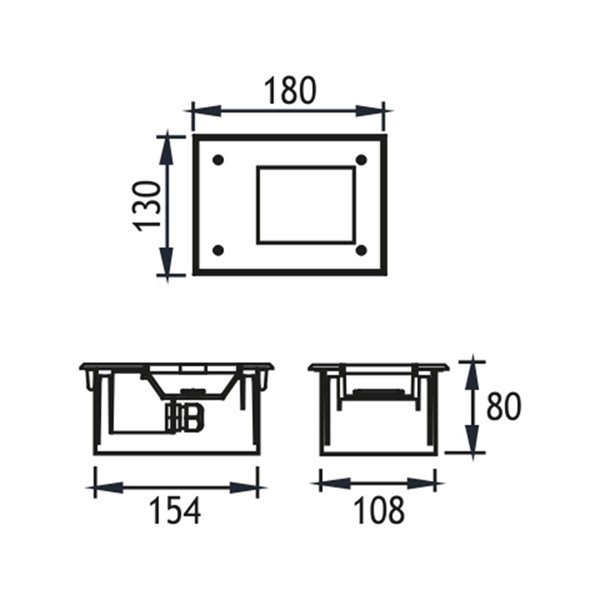

  • ANI 1
  • ANI 2
  • ANI 3

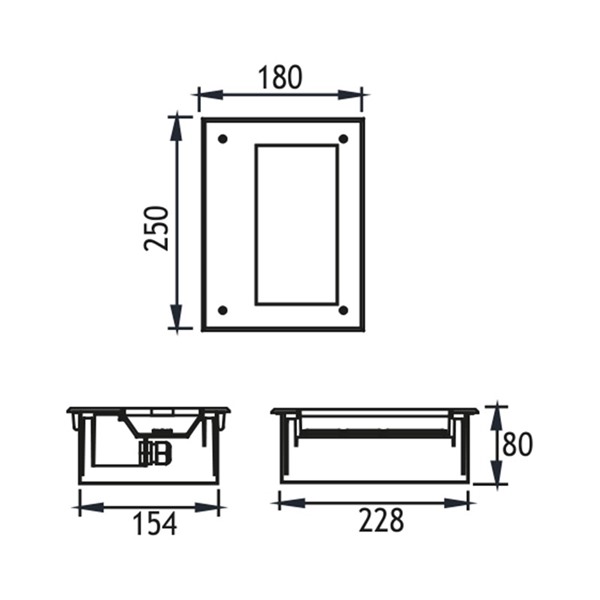

  • ANI 4

PRODUCT LIST & DOWNLOAD

  • Compare

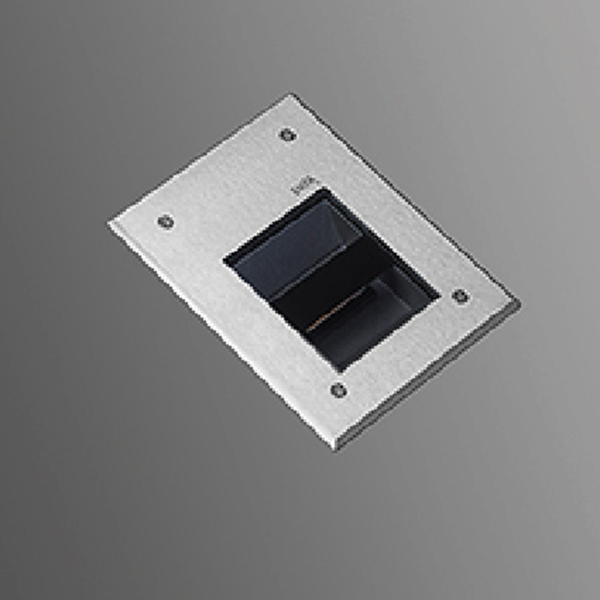

    ANI 1 - Walk Over
    • Product Name
      ANI 1 - Walk Over
    • Code Number
      451001
    • Power - Current
      6 W
    • Kelvin
      3000 K
    • Real Lumen Output
      570 lm
    • Tilt
      Symmetrical
    • Beam Angle

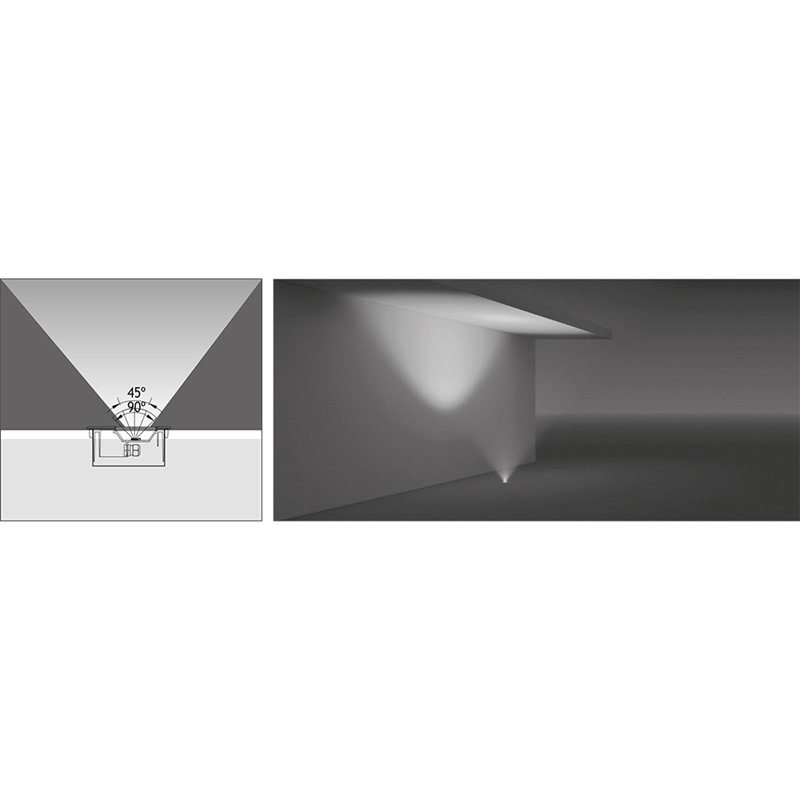

      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 1 - Walk Over
    • Product Name
      ANI 1 - Walk Over
    • Code Number
      451011
    • Power - Current
      12 W
    • Kelvin
      3000 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 1 - Walk Over
    • Product Name
      ANI 1 - Walk Over
    • Code Number
      451002
    • Power - Current
      6 W
    • Kelvin
      4000 K
    • Real Lumen Output
      581 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 1 - Walk Over
    • Product Name
      ANI 1 - Walk Over
    • Code Number
      451012
    • Power - Current
      12 W
    • Kelvin
      4000 K
    • Real Lumen Output
      1195 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 1 - Walk Over
    • Product Name
      ANI 1 - Walk Over
    • Code Number
      451003
    • Power - Current
      6 W
    • Kelvin
      2700 K
    • Real Lumen Output
      570 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 1 - Walk Over
    • Product Name
      ANI 1 - Walk Over
    • Code Number
      451013
    • Power - Current
      12 W
    • Kelvin
      2700 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 2 - Walk Over
    • Product Name
      ANI 2 - Walk Over
    • Code Number
      451103
    • Power - Current
      6 W
    • Kelvin
      2700 K
    • Real Lumen Output
      570 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension

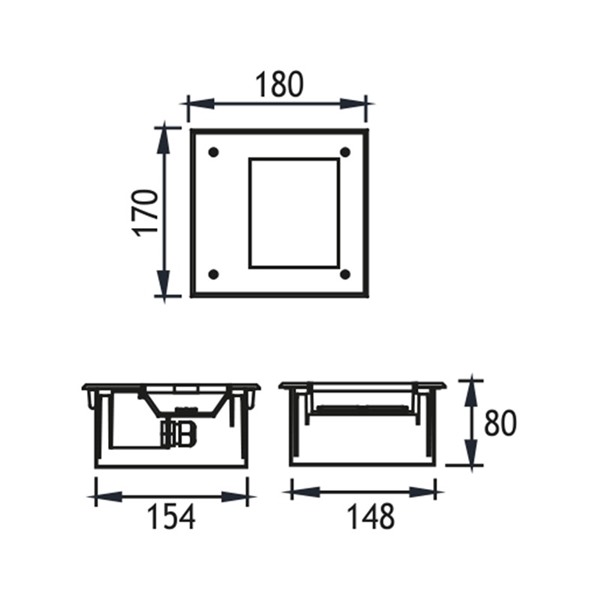

      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare
    ANI 2 - Walk Over
    • Product Name
      ANI 2 - Walk Over
    • Code Number
      451113
    • Power - Current
      12 W
    • Kelvin
      2700 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare
    ANI 2 - Walk Over
    • Product Name
      ANI 2 - Walk Over
    • Code Number
      451101
    • Power - Current
      6 W
    • Kelvin
      3000 K
    • Real Lumen Output
      570 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare
    ANI 2 - Walk Over
    • Product Name
      ANI 2 - Walk Over
    • Code Number
      451111
    • Power - Current
      12 W
    • Kelvin
      3000 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare
    ANI 2 - Walk Over
    • Product Name
      ANI 2 - Walk Over
    • Code Number
      451102
    • Power - Current
      6 W
    • Kelvin
      4000 K
    • Real Lumen Output
      581 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare
    ANI 2 - Walk Over
    • Product Name
      ANI 2 - Walk Over
    • Code Number
      451112
    • Power - Current
      12 W
    • Kelvin
      4000 K
    • Real Lumen Output
      1195 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare
    ANI 3 - Walk Over
    • Product Name
      ANI 3 - Walk Over
    • Code Number
      451201
    • Power - Current
      12 W
    • Kelvin
      3000 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension

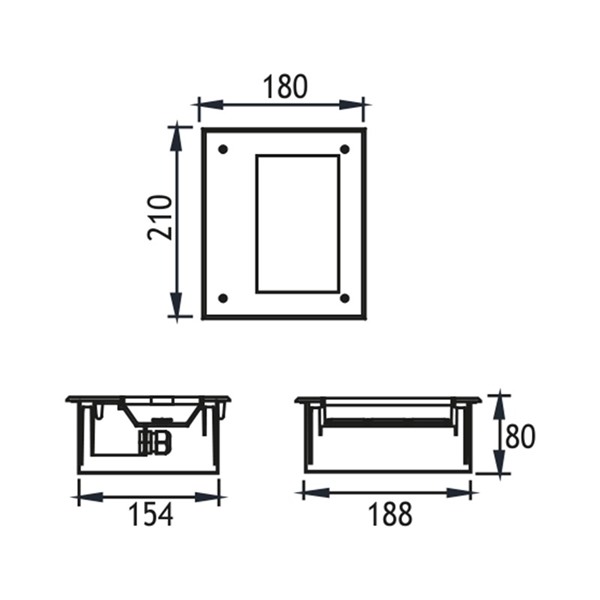

      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare
    ANI 3 - Walk Over
    • Product Name
      ANI 3 - Walk Over
    • Code Number
      451211
    • Power - Current
      24 W
    • Kelvin
      3000 K
    • Real Lumen Output
      2280 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare
    ANI 3 - Walk Over
    • Product Name
      ANI 3 - Walk Over
    • Code Number
      451202
    • Power - Current
      12 W
    • Kelvin
      4000 K
    • Real Lumen Output
      1195 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare
    ANI 3 - Walk Over
    • Product Name
      ANI 3 - Walk Over
    • Code Number
      451212
    • Power - Current
      24 W
    • Kelvin
      4000 K
    • Real Lumen Output
      2320 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare
    ANI 3 - Walk Over
    • Product Name
      ANI 3 - Walk Over
    • Code Number
      451203
    • Power - Current
      12 W
    • Kelvin
      2700 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare
    ANI 3 - Walk Over
    • Product Name
      ANI 3 - Walk Over
    • Code Number
      451213
    • Power - Current
      24 W
    • Kelvin
      2700 K
    • Real Lumen Output
      2280 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare
    ANI 4 - Walk Over
    • Product Name
      ANI 4 - Walk Over
    • Code Number
      451321
    • Power - Current
      24 W
    • Kelvin
      2700 K
    • Real Lumen Output
      2280 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
  • Compare
    ANI 4 - Walk Over
    • Product Name
      ANI 4 - Walk Over
    • Code Number
      451331
    • Power - Current
      24 W
    • Kelvin
      3000 K
    • Real Lumen Output
      2280 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
  • Compare
    ANI 4 - Walk Over
    • Product Name
      ANI 4 - Walk Over
    • Code Number
      451301
    • Power - Current
      24 W
    • Kelvin
      4000 K
    • Real Lumen Output
      2320 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
  • Compare
    ANI 4 - Walk Over
    • Product Name
      ANI 4 - Walk Over
    • Code Number
      451311
    • Power - Current
      36 W
    • Kelvin
      2700 K
    • Real Lumen Output
      3420 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
  • Compare

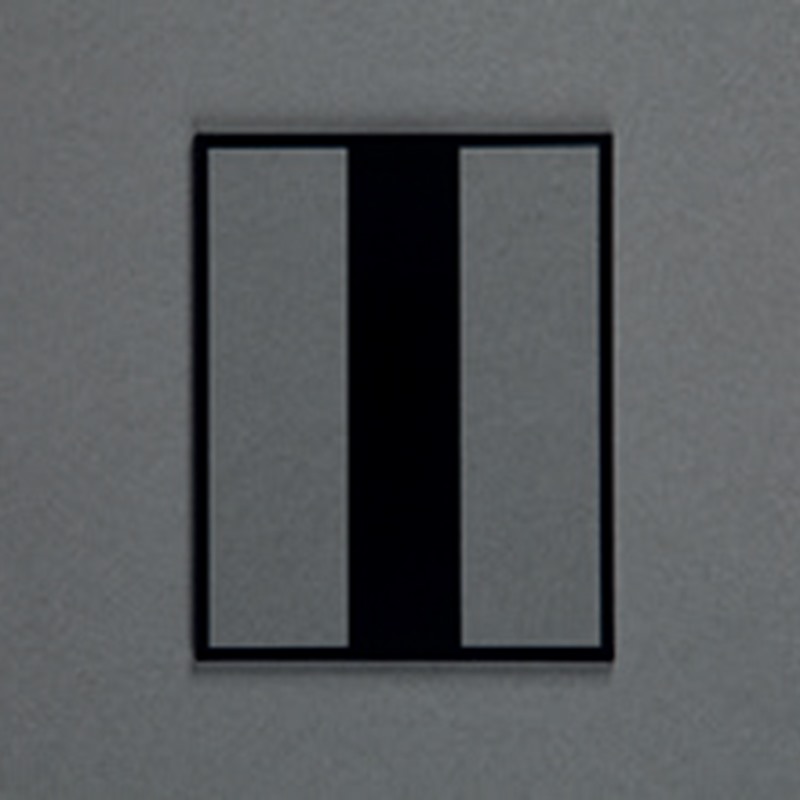

    ANI 4 - Walk Over
    • Product Name
      ANI 4 - Walk Over
    • Code Number
      451302
    • Power - Current
      36 W
    • Kelvin
      3000 K
    • Real Lumen Output
      3420 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
  • Compare
    ANI 4 - Walk Over
    • Product Name
      ANI 4 - Walk Over
    • Code Number
      451312
    • Power - Current
      36 W
    • Kelvin
      4000 K
    • Real Lumen Output
      3520 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
Emfa 2025 © All Rights Reserved.
KVKK Politikası | ONKV Politikası
web design grimor
