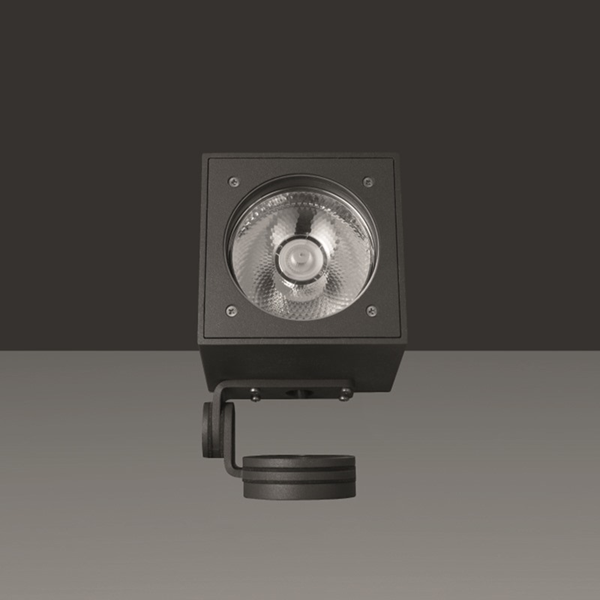

SQUARE - Spots

  • Technical Specifications
  • Body
    Die cast aluminium
  • Product Name
    SQUARE - Spots
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Paint
    Electrostatic powder
"Customization" is EMFA's standard
EMFA offers many combinations for each fixture, as all fixtures are made in house. A combination of 6 standard paint colors, 8 LED colors, 2 wattages, and 5 or more lenses and reflectors are available to make the fixture suitable for the required application. This is done without increasing lead-time and is available for large as well as small quantities.

PRODUCT LIST & DOWNLOAD

  • Compare
    SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Product Name
      SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Code Number
      434101
    • CRI
      >80 or >90
    • Power - Current
      6W LED
    • Color
      3000 K
    • Kelvin
      3000K
    • Lens
      10°,25°,40°
    • Voltage
      240V A.C with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • Real Lumen Output
      570 lm
    • IP
      IP67
  • Compare
    SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Product Name
      SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Code Number
      434113
    • CRI
      >80 or >90
    • Power - Current
      12W LED
    • Color
      2700 K
    • Kelvin
      2700K
    • Lens
      10°,25°,40°
    • Voltage
      240V A.C with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • Real Lumen Output
      1140 lm
    • IP
      IP67
  • Compare
    SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Product Name
      SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Code Number
      434111
    • CRI
      >80 or >90
    • Power - Current
      12W LED
    • Color
      3000 K
    • Kelvin
      3000K
    • Lens
      10°,25°,40°
    • Voltage
      240V A.C with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • Real Lumen Output
      1140 lm
    • IP
      IP67
  • Compare
    SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Product Name
      SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Code Number
      434112
    • CRI
      >80 or >90
    • Power - Current
      12W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°,25°,40°
    • Voltage
      240V A.C with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • Real Lumen Output
      1185 lm
    • IP
      IP67
  • Compare
    SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Product Name
      SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Code Number
      434102
    • CRI
      >80 or >90
    • Power - Current
      6W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°,25°,40°
    • Voltage
      240V A.C with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • Real Lumen Output
      580 lm
    • IP
      IP67
  • Compare
    SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Product Name
      SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Code Number
      434103
    • CRI
      >80 or >90
    • Power - Current
      6W LED
    • Color
      2700 K
    • Kelvin
      2700K
    • Lens
      10°,25°,40°
    • Voltage
      240V A.C with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • Real Lumen Output
      570 lm
    • IP
      IP67
  • Compare
    SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Product Name
      SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Code Number
      434104
    • CRI
      >80 or >90
    • Power - Current
      6W LED
    • Color
      6000 K
    • Kelvin
      6000K
    • Lens
      10°,25°,40°
    • Voltage
      240V A.C with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • Real Lumen Output
      592 lm
    • IP
      IP67
  • Compare
    SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Product Name
      SQUARE - Led Spot With Tir Lens Led Driver In Head
    • Code Number
      434114
    • CRI
      >80 or >90
    • Power - Current
      12W LED
    • Color
      6000 K
    • Kelvin
      6000K
    • Lens
      10°,25°,40°
    • Voltage
      240V A.C with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • Real Lumen Output
      1192 lm
    • IP
      IP67
