KNIDOS - Drive Over

  • Technical Specifications
  • Body
    Glass reinforced polyester
  • Product Name
    KNIDOS - Drive Over
  • Gaskets
    Silicone
  • Diffusers
    12mm Tempered Glass
  • Screws
    316L Stainless steel
  • Cover
    316L Stainless steel
ORDER FORM
"Customization” is EMFA’s standard"

EMFA offers many combinations for each fixture, as all fixtures are made in house. A combination of 2 finishes of stainless steel, 8 LED colors, 2 wattages, and 5 or more lenses and reflectors are available to make the fixture suitable for the required application. This is done without increasing lead-time and is available for large as well as small quantities.

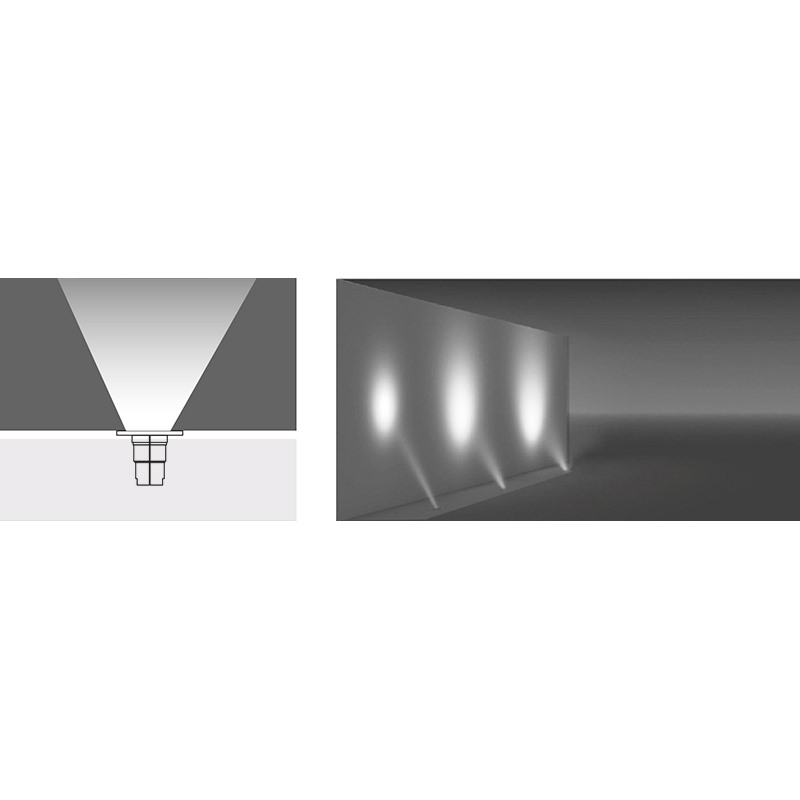

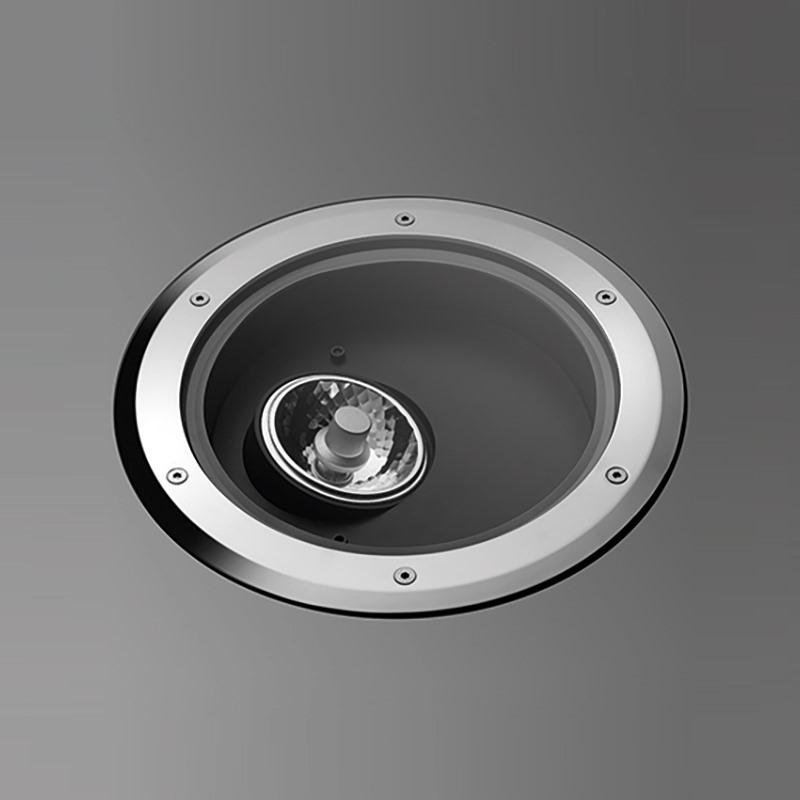

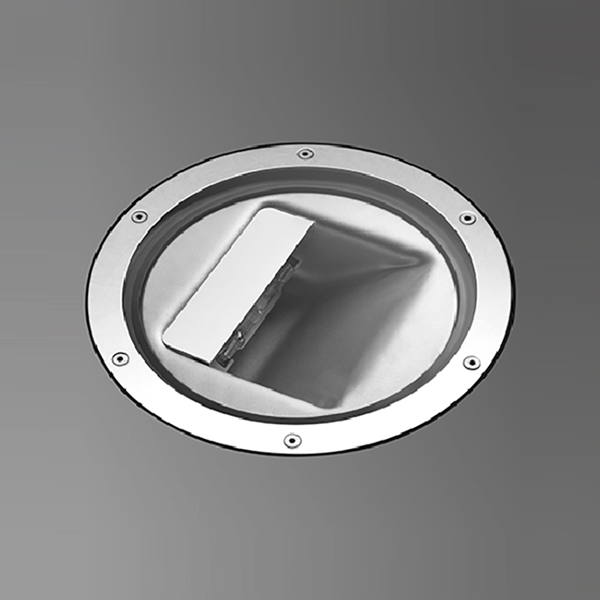

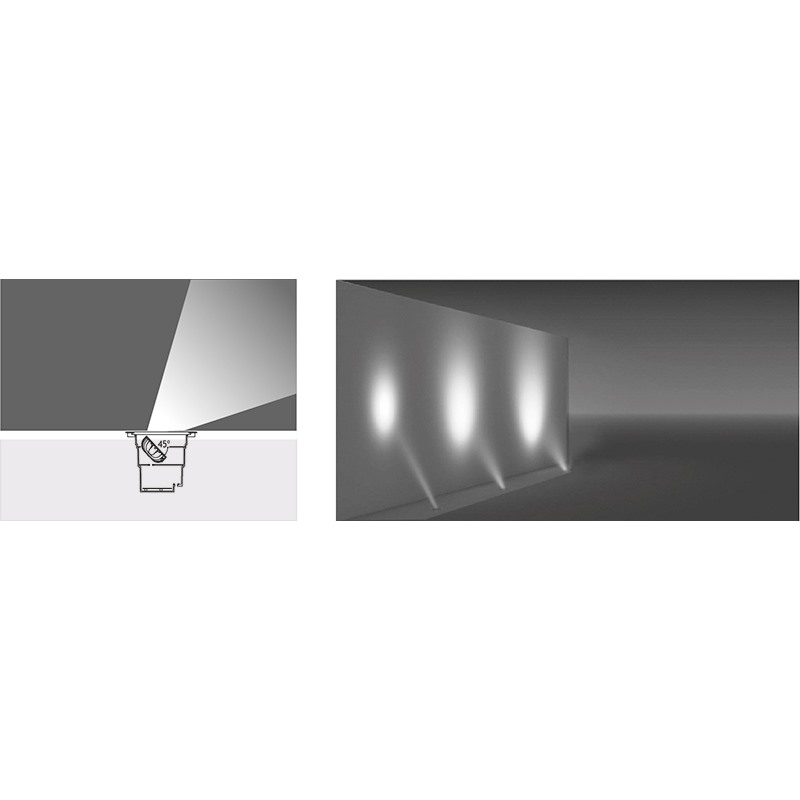

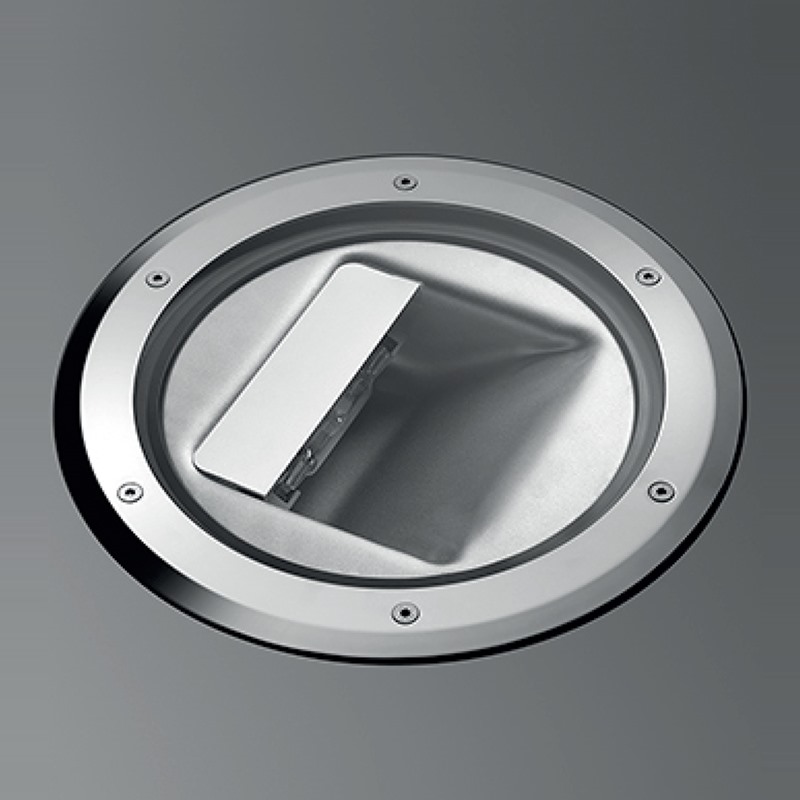

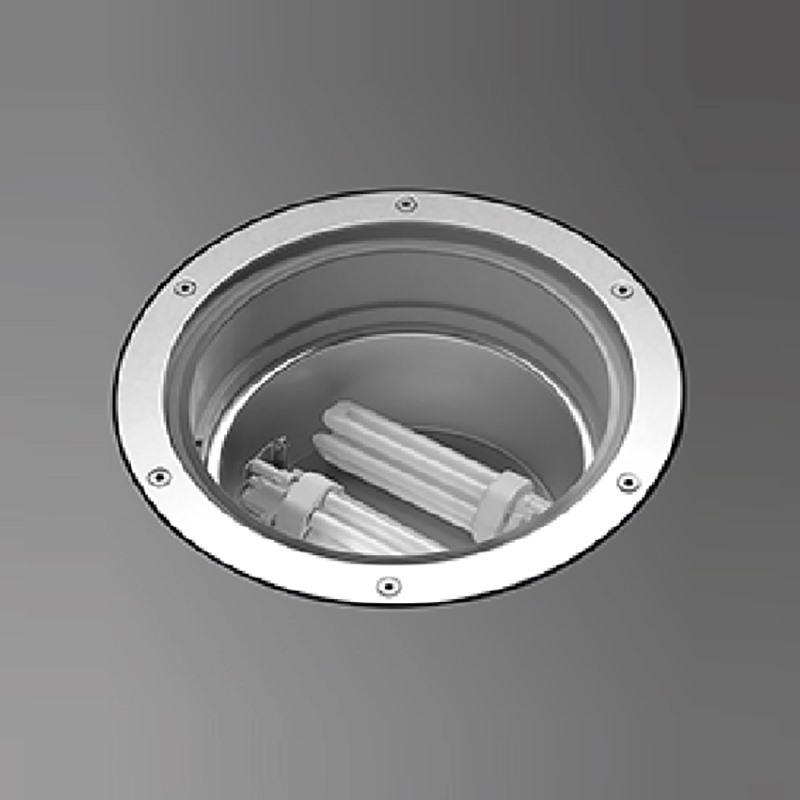

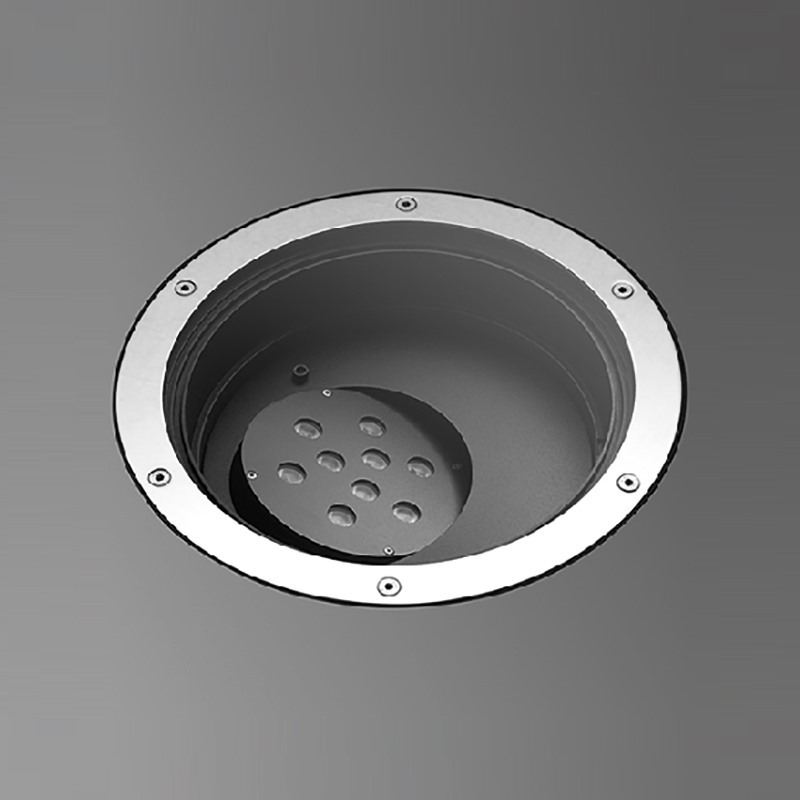

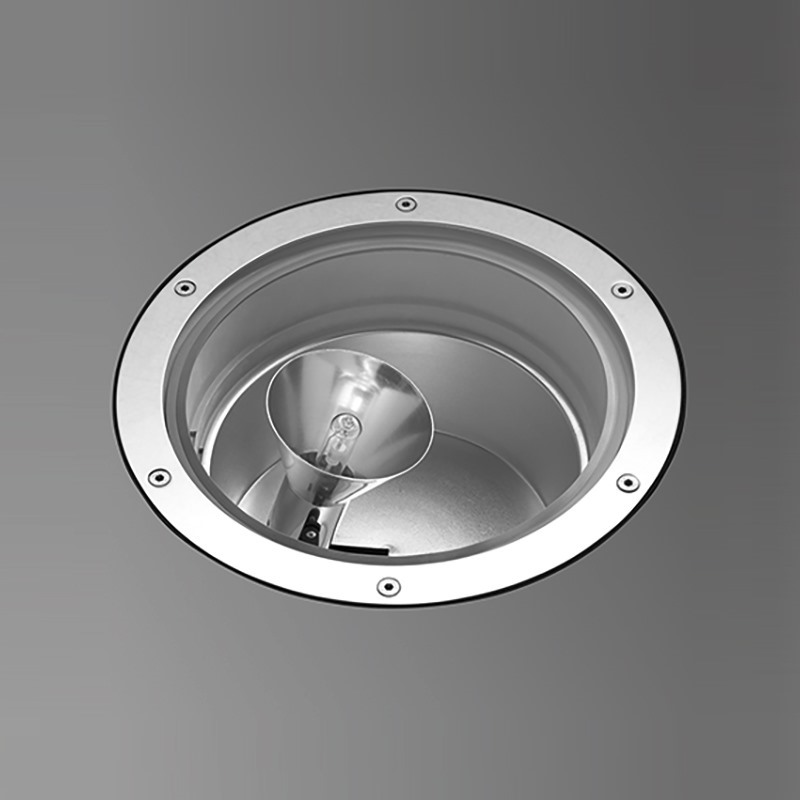

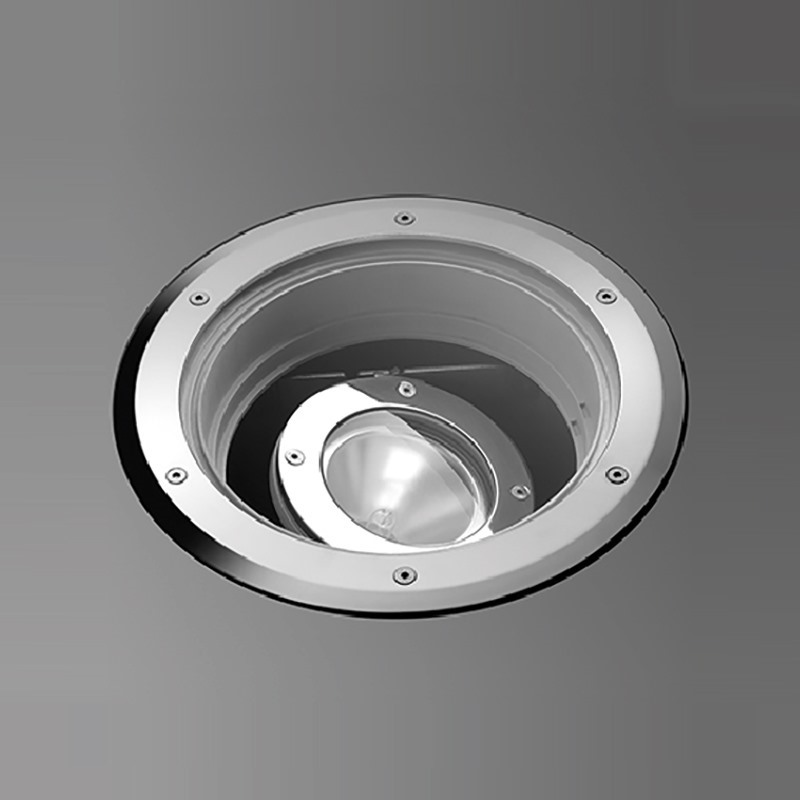

ACCESSORIES & IMAGES

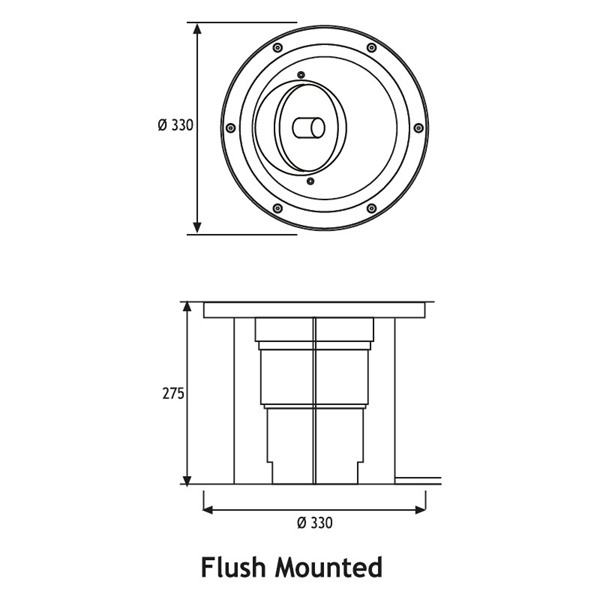

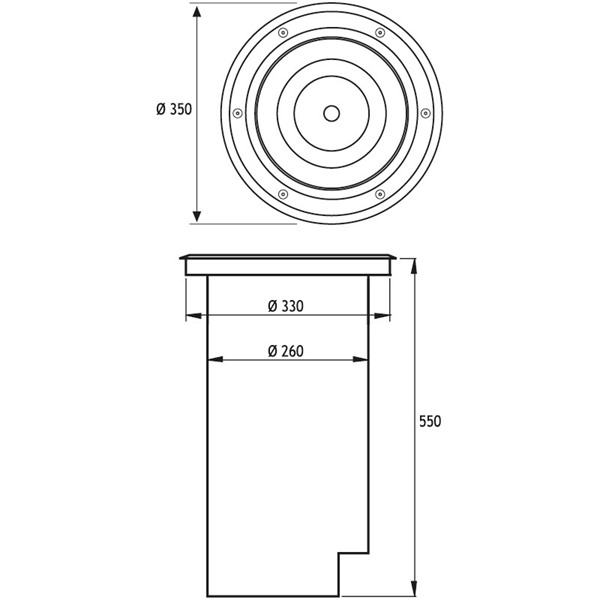

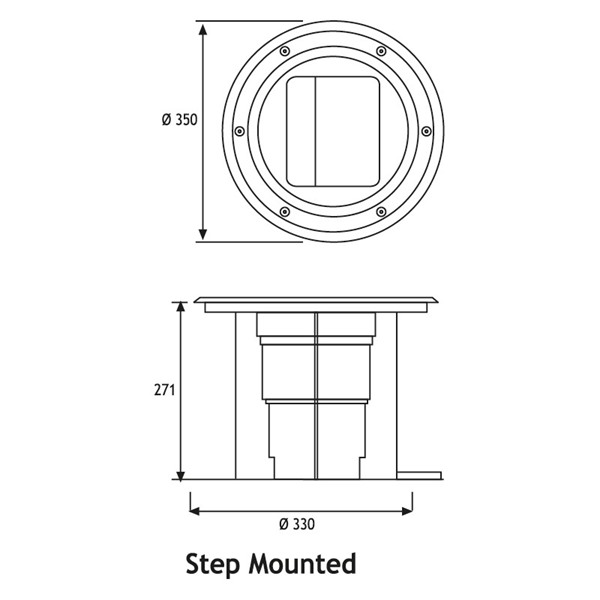

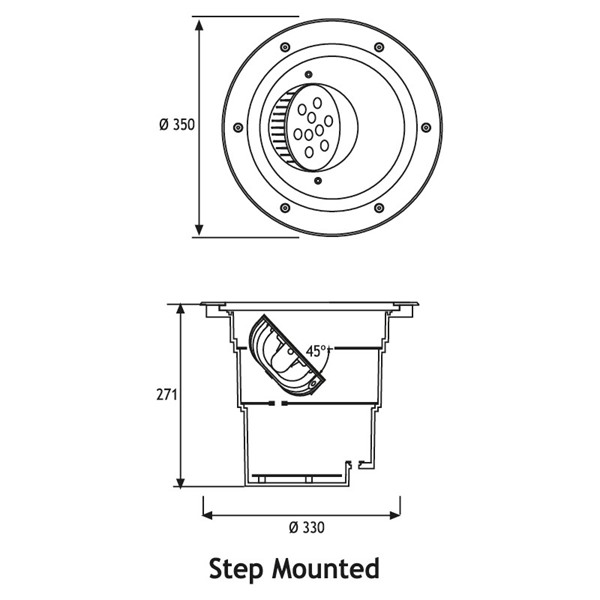

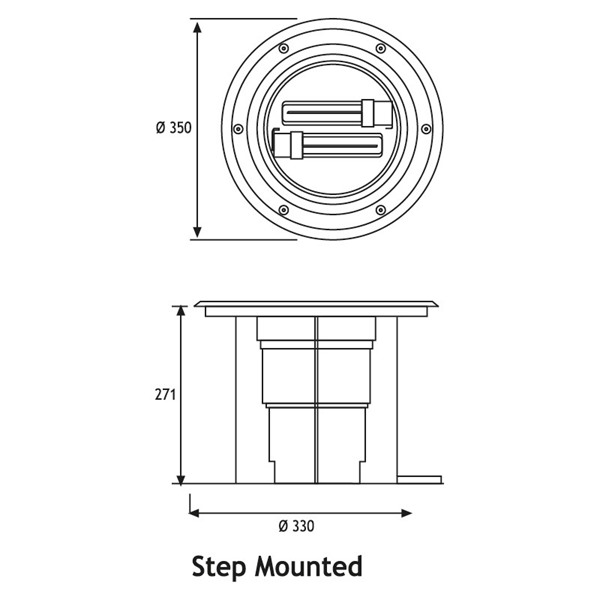

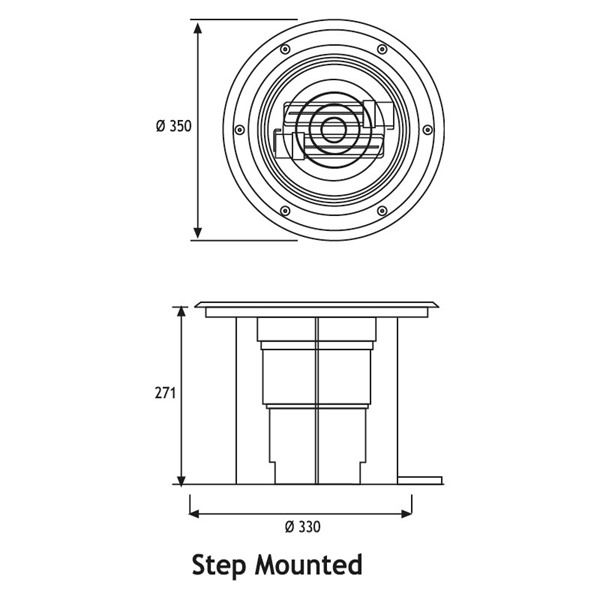

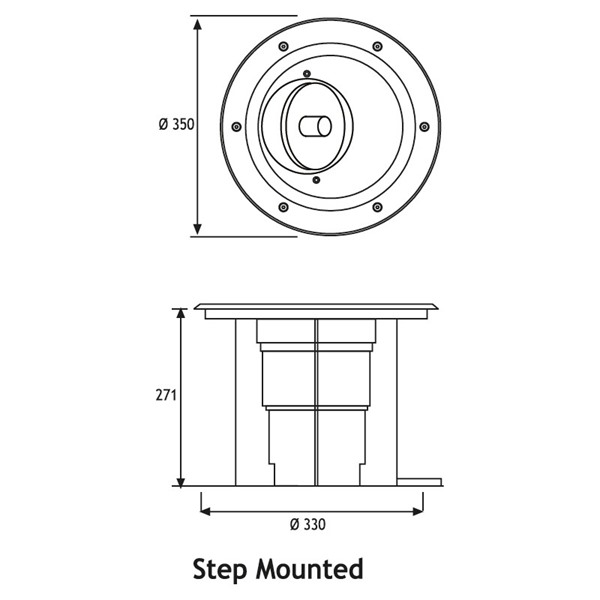

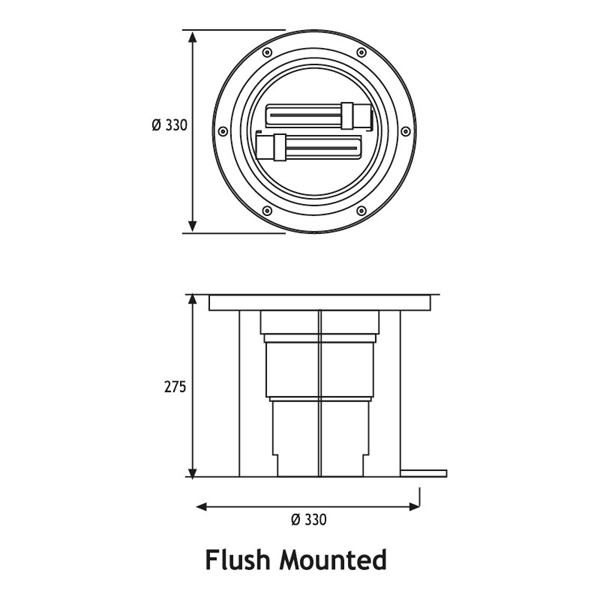

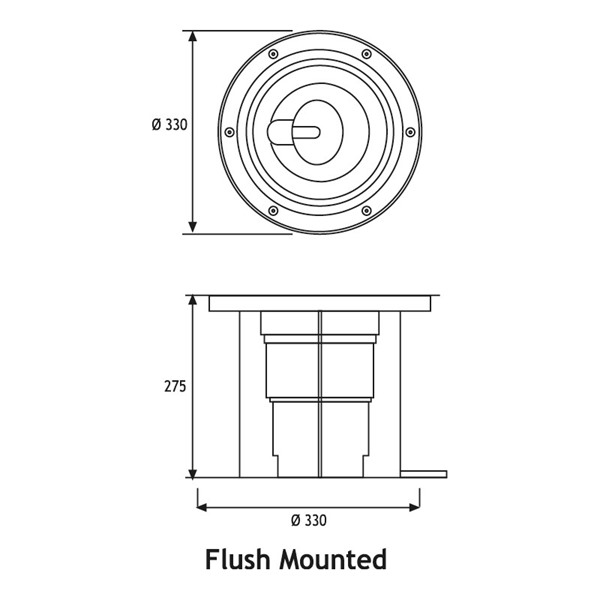

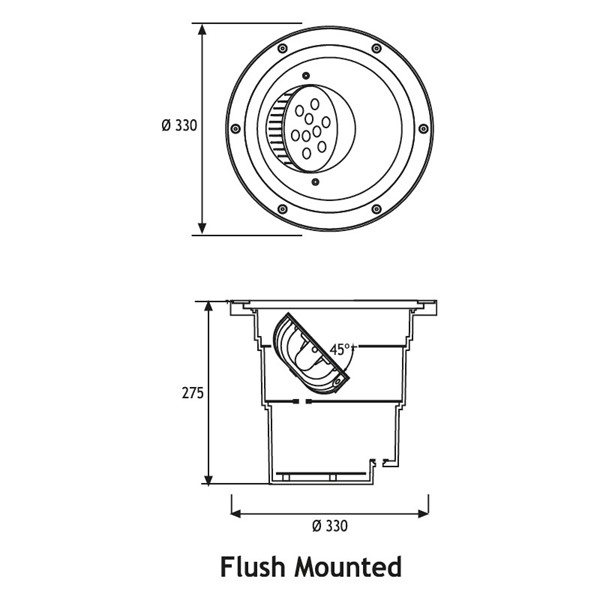

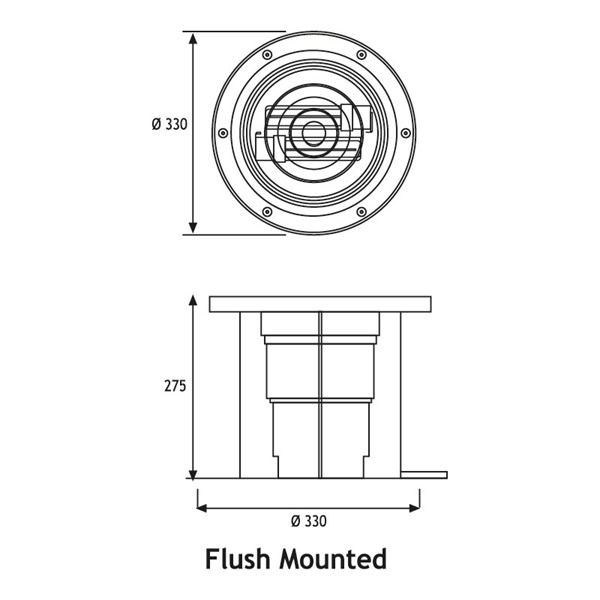

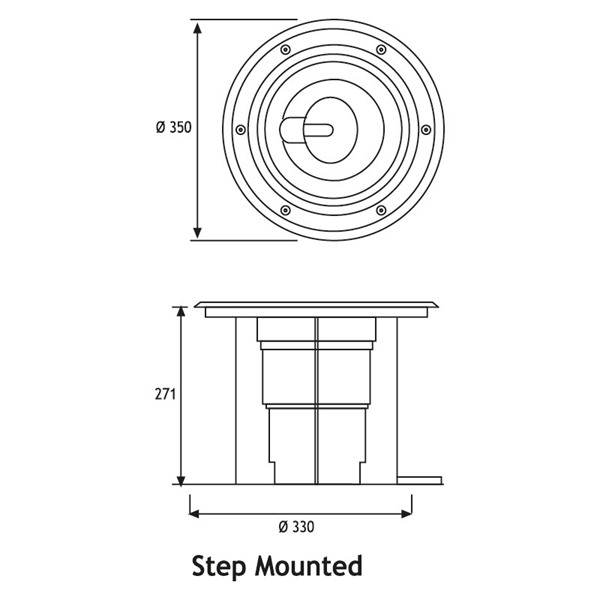

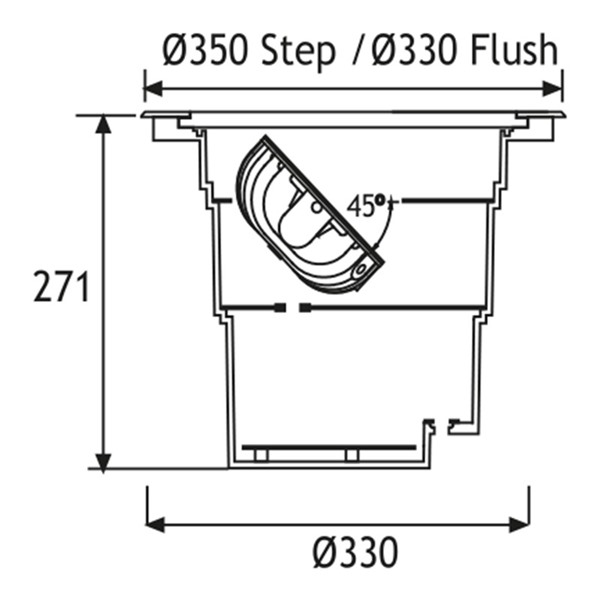

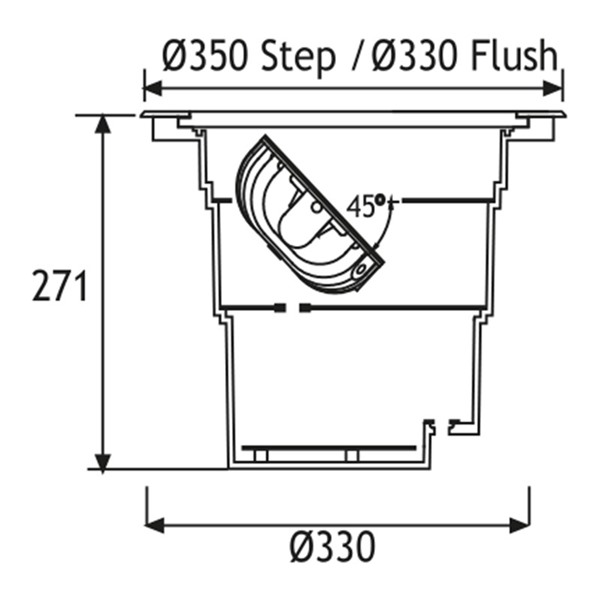

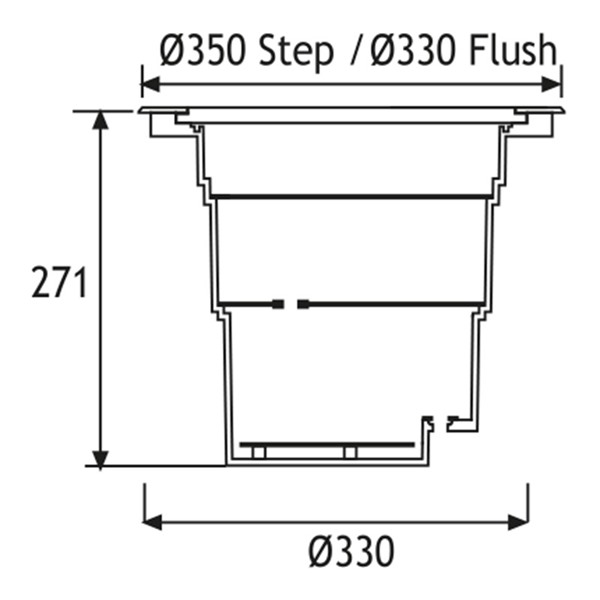

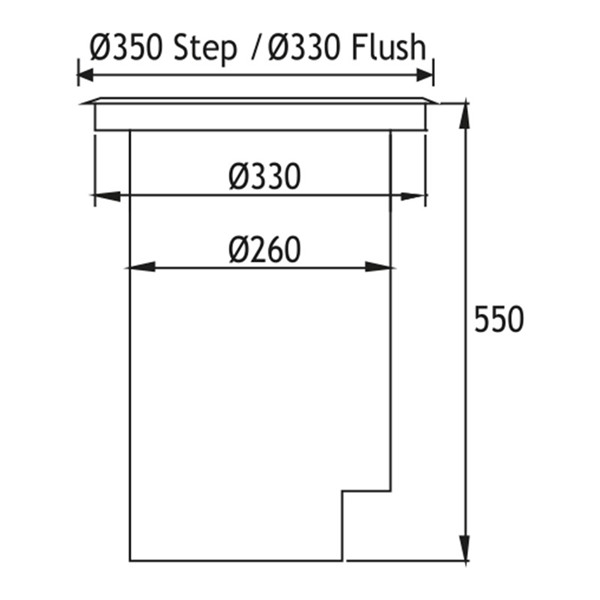

PRODUCT DRAWINGS

  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over
  • KNIDOS - Drive Over

PRODUCT LIST & DOWNLOAD

  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258001
    • Power - Current
      9x350 mA (9 W)
    • Color
      3000K
    • Kelvin
      3000K
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Lumen
      765 lm
    • Real Lumen Output
      810 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258011
    • Power - Current
      9 x 350 mA (9W)
    • Color
      3000K
    • Kelvin
      3000K
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Lumen
      765 lm
    • Real Lumen Output
      810 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258002
    • Power - Current
      9x350 mA (9 W)
    • Color
      4500K
    • Kelvin
      4000K
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Lumen
      765 lm
    • Real Lumen Output
      891 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258012
    • Power - Current
      9 x 350 mA (9W)
    • Color
      4500K
    • Kelvin
      4000K
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Lumen
      765 lm
    • Real Lumen Output
      891 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258003
    • Power - Current
      9 x 350 mA (9W)
    • Color
      6000K
    • Kelvin
      2700K
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Lumen
      918 lm
    • Real Lumen Output
      810 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258013
    • Power - Current
      9 x 350 mA (9W)
    • Color
      6000K
    • Kelvin
      2700K
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Lumen
      918 lm
    • Real Lumen Output
      810 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258031
    • Power - Current
      18W
    • Color
      6000K
    • Kelvin
      2700K
    • Lens
      10°, 25°, 40°
    • Lumen
      918 lm
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Real Lumen Output
      1620 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258032
    • Power - Current
      18W
    • Color
      3000K
    • Kelvin
      3000K
    • Lens
      10°, 25°, 40°
    • Lumen
      765 lm
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Real Lumen Output
      1620 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258033
    • Power - Current
      18W
    • Color
      4500K
    • Kelvin
      4000K
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Lumen
      765 lm
    • Real Lumen Output
      1782 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258021
    • Power - Current
      18W
    • Color
      6000K
    • Kelvin
      2700K
    • Lens
      10°, 25°, 40°
    • Lumen
      918 lm
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Real Lumen Output
      1620 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258022
    • Power - Current
      18W
    • Color
      3000K
    • Kelvin
      3000K
    • Lens
      10°, 25°, 40°
    • Lumen
      765 lm
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Real Lumen Output
      1620 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Led Fixtures - Drive Over
    • Product Name
      KNIDOS - Adjustable Led Fixtures - Drive Over
    • Code Number
      258023
    • Power - Current
      18W
    • Color
      4500K
    • Kelvin
      4000K
    • Lens
      10°, 25°, 40°
    • Lumen
      765 lm
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • Real Lumen Output
      1782 lm
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS - Adjustable Spotlighter - Drive Over
    • Product Name
      KNIDOS - Adjustable Spotlighter - Drive Over
    • Mounting
      Flush Mounted
    • Temp
      102°
    • Gear
      Electronic
    • Code Number
      254301
    • Power - Current
      35W
    • Voltage
      240 V A.C
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
    • Lamp
      METAL HALIDE CDMR-111 35W 10° or 40°
    • Lampholder
      Gx8.5
  • Compare
    KNIDOS - Adjustable Spotlighter - Drive Over
    • Product Name
      KNIDOS - Adjustable Spotlighter - Drive Over
    • Mounting
      Step Mounted
    • Temp
      102°
    • Gear
      Electronic
    • Code Number
      254311
    • Power - Current
      35W
    • Voltage
      240 V A.C
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
    • Lamp
      METAL HALIDE CDMR-111 35W 10° or 40°
    • Lampholder
      Gx8.5
  • Compare
    KNIDOS - Adjustable Spotlighter - Drive Over
    • Product Name
      KNIDOS - Adjustable Spotlighter - Drive Over
    • Mounting
      Flush Mounted
    • Temp
      102°
    • Gear
      Electronic
    • Code Number
      254401
    • Power - Current
      70W
    • Voltage
      240 V A.C
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
    • Lamp
      METAL HALIDE CDMR-111 70W 10° or 40°
    • Lampholder
      Gx8.5
  • Compare
    KNIDOS - Adjustable Spotlighter - Drive Over
    • Product Name
      KNIDOS - Adjustable Spotlighter - Drive Over
    • Mounting
      Step Mounted
    • Temp
      102°
    • Gear
      Electronic
    • Code Number
      254411
    • Power - Current
      70W
    • Voltage
      240 V A.C
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
    • Lamp
      METAL HALIDE CDMR-111 70W 10° or 40°
    • Lampholder
      Gx8.5
  • Compare
    KNIDOS - Symmetrical Uplighter With Louvre - Drive Over
    • Product Name
      KNIDOS - Symmetrical Uplighter With Louvre - Drive Over
    • Mounting
      Flush Mounted
    • Reflector
      Asymmetric 50°
    • Temp
      105°C
    • Code Number
      251101
    • Power - Current
      35W
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
    • Lamp
      COMPACT FLUO. 2x42W
    • Lampholder
      Rx 7s
  • Compare
    KNIDOS - Wall Washer - Drive Over
    • Product Name
      KNIDOS - Wall Washer - Drive Over
    • Mounting
      Step Mounted
    • Reflector
      Asymmetric 50°
    • Temp
      105°C
    • Code Number
      251201
    • Power - Current
      35W
    • Voltage
      240 V A.C
    • IP
      IP67
    • Dimension
      O350(Step)/O330(Flush)x271mm
    • Lamp
      METAL HALIDE 70W
    • Lampholder
      Rx 7s
  • Compare
    KNIDOS - Wall Washer - Drive Over
    • Product Name
      KNIDOS - Wall Washer - Drive Over
    • Mounting
      Flush Mounted
    • Reflector
      Asymmetric 50°
    • Temp
      176°C
    • Code Number
      251111
    • Power - Current
      70W
    • Voltage
      240 V A.C
    • IP
      IP67
    • Lamp
      METAL HALIDE 150W
    • Lampholder
      Rx 7s-24
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS (STEP MOUNTED) - Drive Over
    • Product Name
      KNIDOS (STEP MOUNTED) - Drive Over
    • Mounting
      Step Mounted
    • Reflector
      Asymmetric 50°
    • Temp
      176°C
    • Code Number
      251211
    • Power - Current
      70W
    • Voltage
      240 V A.C
    • IP
      IP67
    • Lamp
      METAL HALIDE 150W
    • Lampholder
      Rx 7s-24
    • Dimension
      O350(Step)/O330(Flush)x271mm
  • Compare
    KNIDOS COOL GLASS - Adjustable Spotlighter - Drive Over
    • Product Name
      KNIDOS COOL GLASS - Adjustable Spotlighter - Drive Over
    • Mounting
      Step Mounted
    • Reflector
      30° or 42°
    • Temp
      45°
    • Code Number
      257111
    • Power - Current
      70W
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP67
    • Dimension
      O330/O260x550mm
    • Lamp
      METAL HALIDE 70W
    • Lampholder
      G12 Adjustable ± 15°
  • Compare
    KNIDOS COOL GLASS - Adjustable Spotlighter - Drive Over
    • Product Name
      KNIDOS COOL GLASS - Adjustable Spotlighter - Drive Over
    • Mounting
      Step Mounted
    • Reflector
      30° or 42°
    • Temp
      45°
    • Code Number
      257101
    • Power - Current
      35W
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP67
    • Dimension
      O330/O260x550mm
    • Lamp
      METAL HALIDE 35W
    • Lampholder
      G12 Adjustable ± 15°
  • Compare
    KNIDOS COOL GLASS - Adjustable Spotlighter - Drive Over
    • Product Name
      KNIDOS COOL GLASS - Adjustable Spotlighter - Drive Over
    • Mounting
      Step Mounted
    • Reflector
      30° or 42°
    • Temp
      45°
    • Code Number
      257001
    • Power - Current
      35W
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP67
    • Lamp
      METAL HALIDE 35W
    • Dimension
      O330/O260x550mm
    • Lampholder
      G12 Adjustable ± 15°
  • Compare
    KNIDOS COOL GLASS - Adjustable Spotlighter - Drive Over
    • Product Name
      KNIDOS COOL GLASS - Adjustable Spotlighter - Drive Over
    • Mounting
      Step Mounted
    • Reflector
      30° or 42°
    • Temp
      45°
    • Code Number
      257011
    • Power - Current
      70W
    • Lens
      10°, 25°, 40°
    • Voltage
      240 V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP67
    • Lamp
      METAL HALIDE 70W
    • Dimension
      O330/O260x550mm
    • Lampholder
      G12 Adjustable ± 15°
Emfa 2025 © All Rights Reserved.
KVKK Politikası | ONKV Politikası
web design grimor
