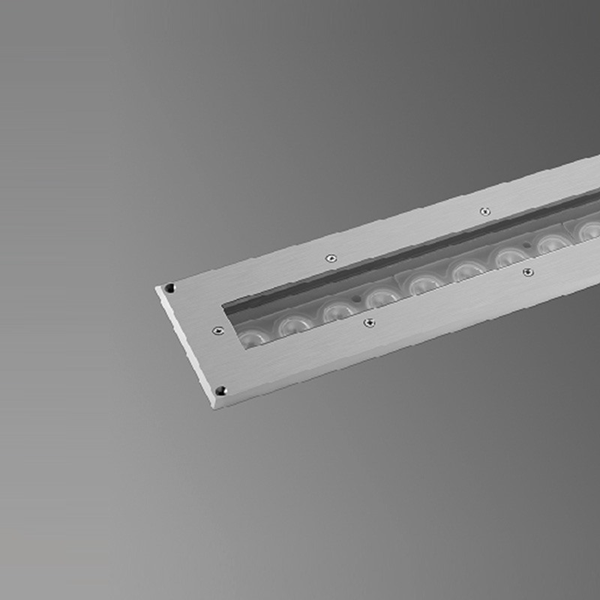

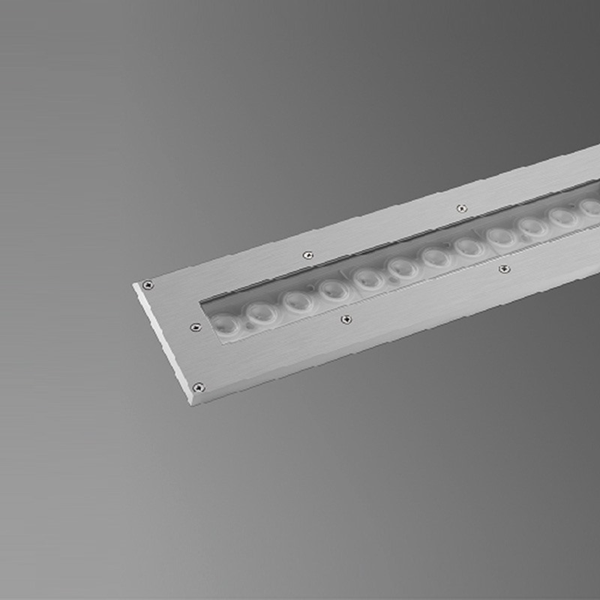

MIRA 1 - Drive Over

  • Technical Specifications
  • Product Name
    MIRA 1 - Drive Over
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    12 mm Tempered Glass
  • Screws
    316L Stainless steel
  • Cover
    316L Stainless steel
  • Recessing Tube
    Stainless steel
The Mira series consists of a range of LED and fluorescent sources to deliver the desired light effect to facades, columns, bridges, monuments, and signs. The series is made of a die cast aluminium body with electrostatic powder paint finished with a 316L stainless steel cover. The recessed versions are for drive over up to 20 kN including a stainless steel recessing box. The surface mounted verisons come with integrated electronic ballasts and a specially developed potted power cable to effectively bond with the cast resin and stop any water ingress. The LEDs used come in 3 different tones of white, as well as blue, red, green, amber and RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired the light effect.

PRODUCT LIST & DOWNLOAD

  • Compare
    MIRA 1 - Led - Drive Over
    • Product Name
      MIRA 1 - Led - Drive Over
    • Code Number
      430111
    • Power - Current
      12 W
    • Kelvin
      3000 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      400 x 95 x 70 mm / Recessing Box 370 x 65 x 100 mm
  • Compare
    MIRA 1 - Led - Drive Over
    • Product Name
      MIRA 1 - Led - Drive Over
    • Code Number
      430116
    • Power - Current
      12 W
    • Kelvin
      4000 K
    • Real Lumen Output
      1160 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      400 x 95 x 70 mm / Recessing Box 370 x 65 x 100 mm
  • Compare
    MIRA 1 - Led - Drive Over
    • Product Name
      MIRA 1 - Led - Drive Over
    • Code Number
      430117
    • Power - Current
      12 W
    • Kelvin
      6000 K
    • Real Lumen Output
      1185 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      400 x 95 x 70 mm / Recessing Box 370 x 65 x 100 mm
  • Compare
    MIRA 1 - Led - Drive Over
    • Product Name
      MIRA 1 - Led - Drive Over
    • Code Number
      430161
    • Power - Current
      27 W
    • Color
      RGB
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • Lens
      25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      400 x 95 x 70 mm / Recessing Box 370 x 65 x 100 mm
  • Compare
    MIRA 1 - Led - Drive Over
    • Product Name
      MIRA 1 - Led - Drive Over
    • Code Number
      430351
    • Power - Current
      12 W
    • Kelvin
      3000 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      400 x 95 x 70 mm / Recessing Box 370 x 65 x 100 mm
  • Compare
    MIRA 1 - Led - Drive Over
    • Product Name
      MIRA 1 - Led - Drive Over
    • Code Number
      430352
    • Power - Current
      12 W
    • Kelvin
      4000 K
    • Real Lumen Output
      1160 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      400 x 95 x 70 mm / Recessing Box 370 x 65 x 100 mm
  • Compare
    MIRA 1 - Led - Drive Over
    • Product Name
      MIRA 1 - Led - Drive Over
    • Code Number
      430353
    • Power - Current
      12 W
    • Kelvin
      6000 K
    • Real Lumen Output
      1185 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      400 x 95 x 70 mm / Recessing Box 370 x 65 x 100 mm
  • Compare
    MIRA 1 - Led - Drive Over
    • Product Name
      MIRA 1 - Led - Drive Over
    • Code Number
      430361
    • Power - Current
      27 W
    • Color
      RGB
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • Lens
      25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      400 x 95 x 70 mm / Recessing Box 370 x 65 x 100 mm
  • Compare
    MIRA 1 - Led - Drive Over
    • Product Name
      MIRA 1 - Led - Drive Over
    • Code Number
      430118
    • Power - Current
      12 W
    • Kelvin
      2700 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Symmetrical
    • Beam Angle
      45° / 60° / 90°
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      400 x 95 x 70 mm / Recessing Box 370 x 65 x 100 mm
  • Compare
    MIRA 1 - Led - Drive Over
    • Product Name
      MIRA 1 - Led - Drive Over
    • Code Number
      430354
    • Power - Current
      12 W
    • Kelvin
      2700 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      400 x 95 x 70 mm / Recessing Box 370 x 65 x 100 mm
