TEOS SURFACE MOUNTED

  • Technical Specifications
  • Cable
    0.5m 3x0,75 mm H05VV-F
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    Polycarbonate
  • Screws
    316L Stainless steel
  • Glands
    2 x PG 13.5
  • Cover
    Die cast aluminium
  • Recessing Tube
    Electrostatic powder paint

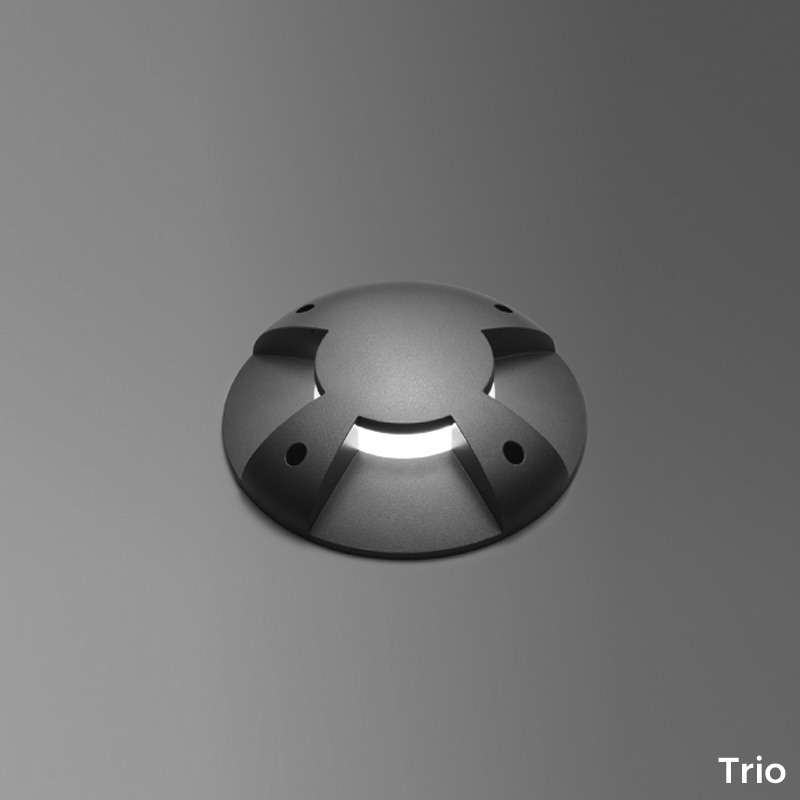

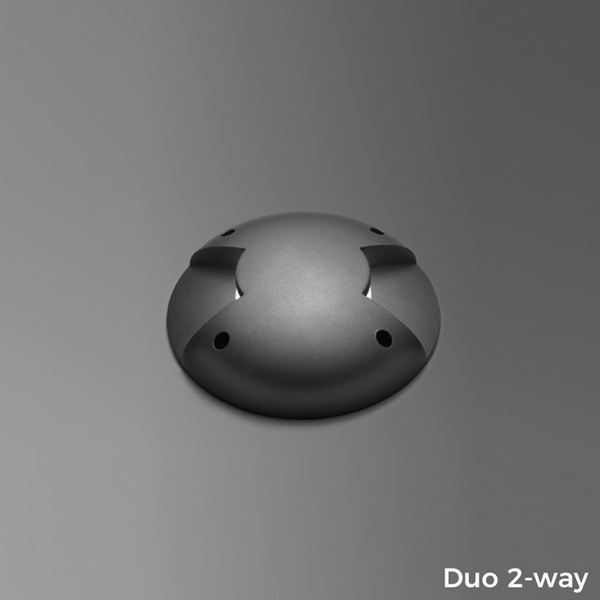

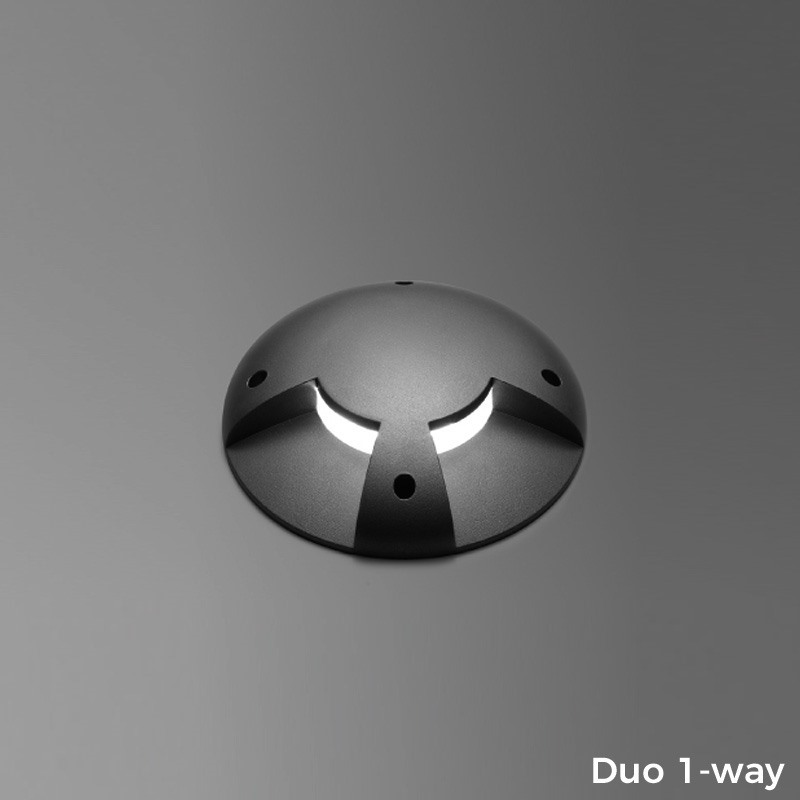

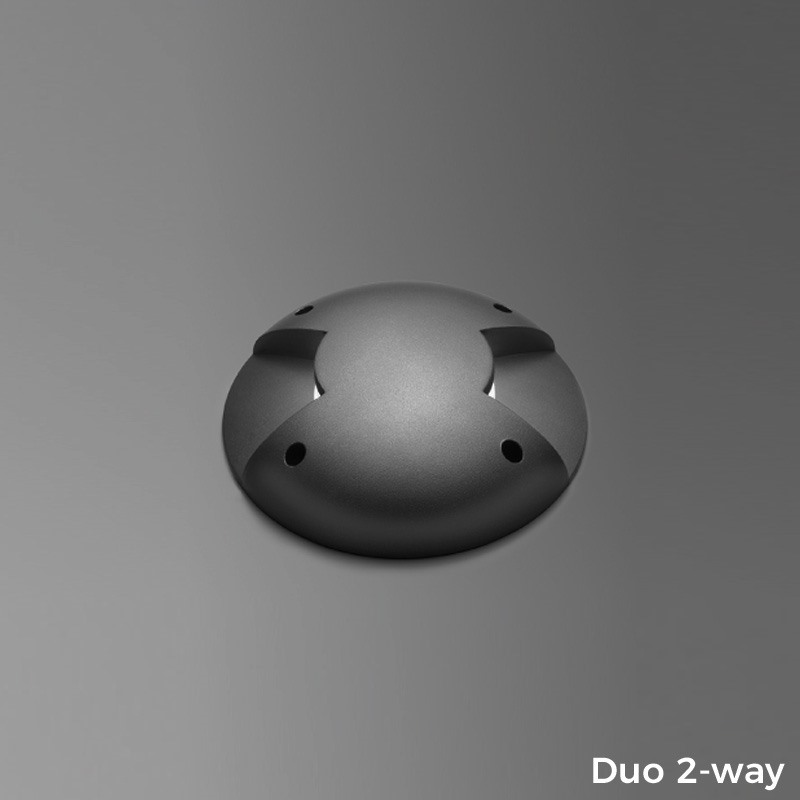

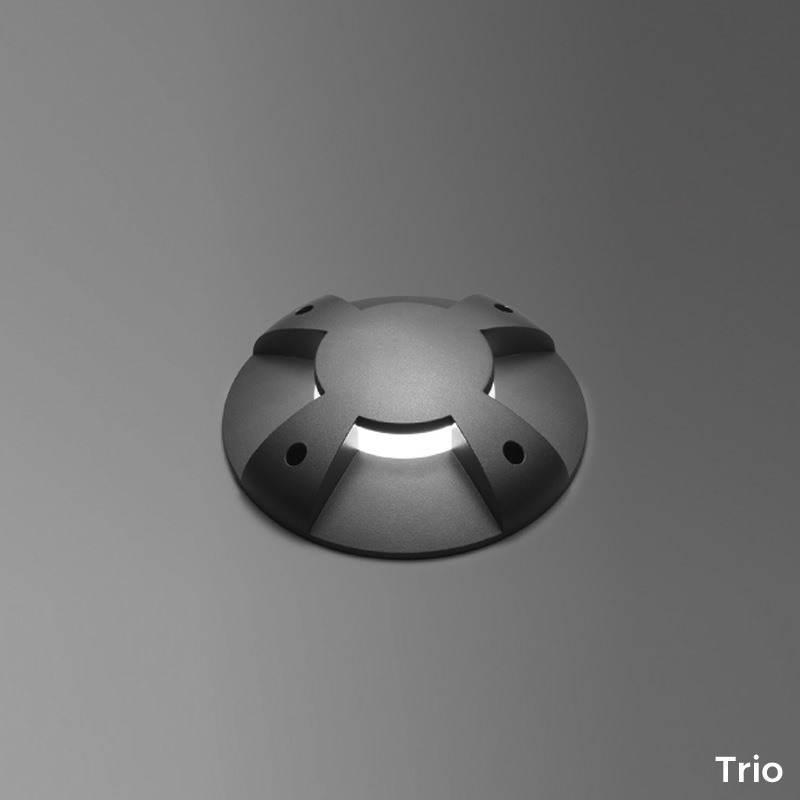

EMFA’s Teos 3 Surface Drive Over LED Fixture is specially designed to deliver high output LED light to ground surfaces of roads, carparks and pathways. This heavy duty fixture is designed to withstand the weight of large vehicles. Its robust construction allows for a maximum static load of 5000kg. The body and head of the fixture are made of die cast aluminium, while the recessing tube is made of steel to withstand the repeated impact of driving vehicles’ tires. The high power LEDs are positioned and angled to provide maximum light output. The electronic LED driver is housed in the base of the fixture. The fixture comes with 2 x PG13.5 cable glands and 0.5m cable.

PRODUCT LIST & DOWNLOAD

  • Compare
    180242
    • Product Name
      TEOS Surface Mounted Drive Over Fixtures
    • Power - Current

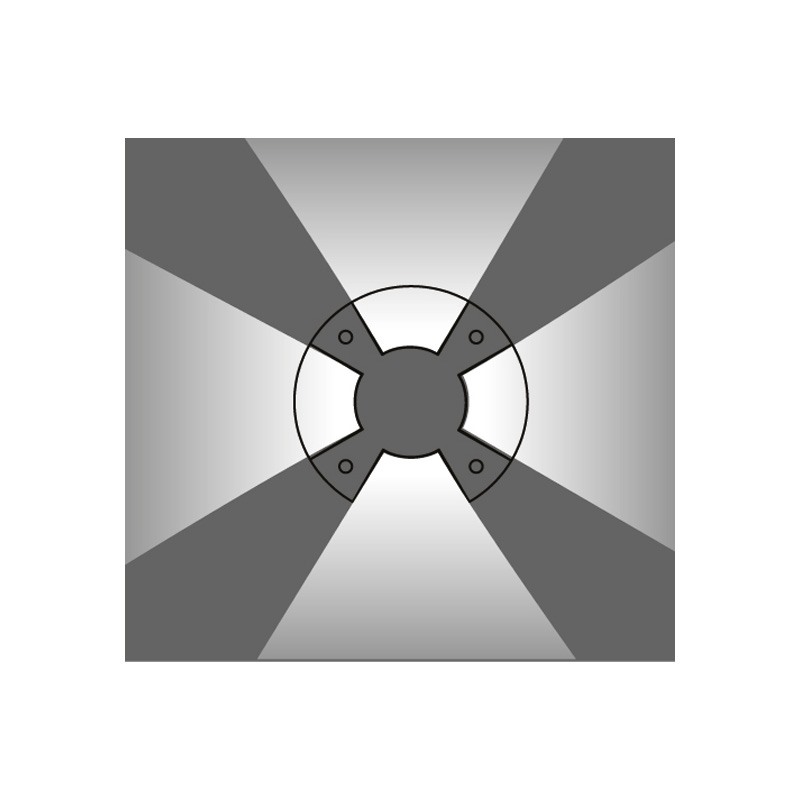

      Quad 4 x 350 mA (16W) LED
    • Color
      5000 K
    • Lumen
      768 lm
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      0.5m 3x0,75 mm H05VV-F
    • IP
      IP67
    • Diffusers
      Polycarbonate
  • Compare
    TEOS 3
    • Product Name
      TEOS Surface Mounted Drive Over Fixtures
    • Power - Current
      1 x 350 mA (4W) LED
    • Kelvin
      3000K
    • Color
      3000 K
    • Real Lumen Output
      380 lm
    • Lumen
      165 lm
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      0.5m 3x0,75 mm H05VV-F
    • IP
      IP67
    • Diffusers
      Polycarbonate
  • Compare
    TEOS 3
    • Product Name
      TEOS Surface Mounted Drive Over Fixtures
    • Power - Current

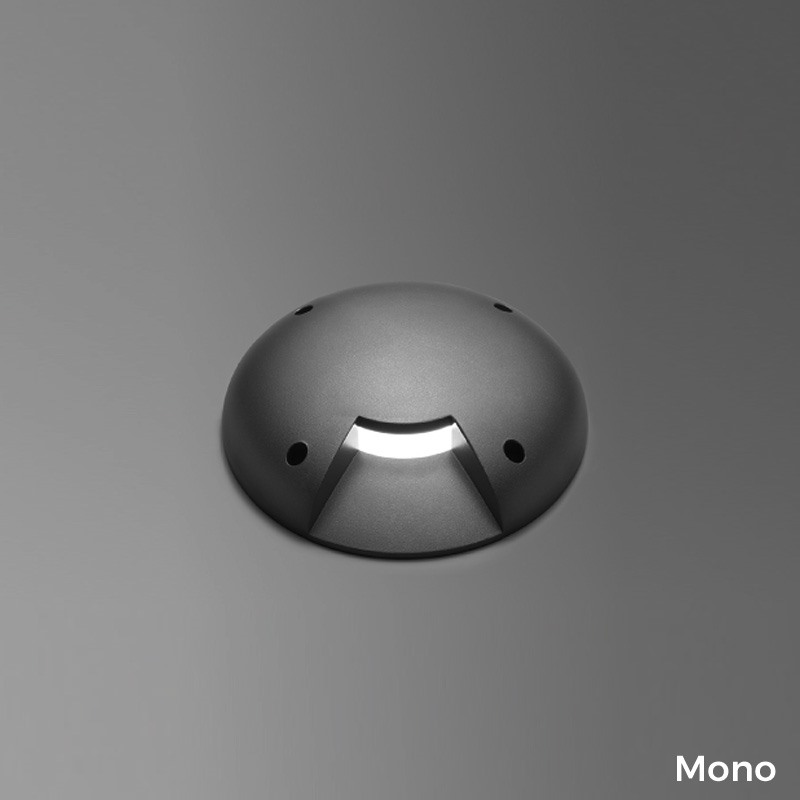

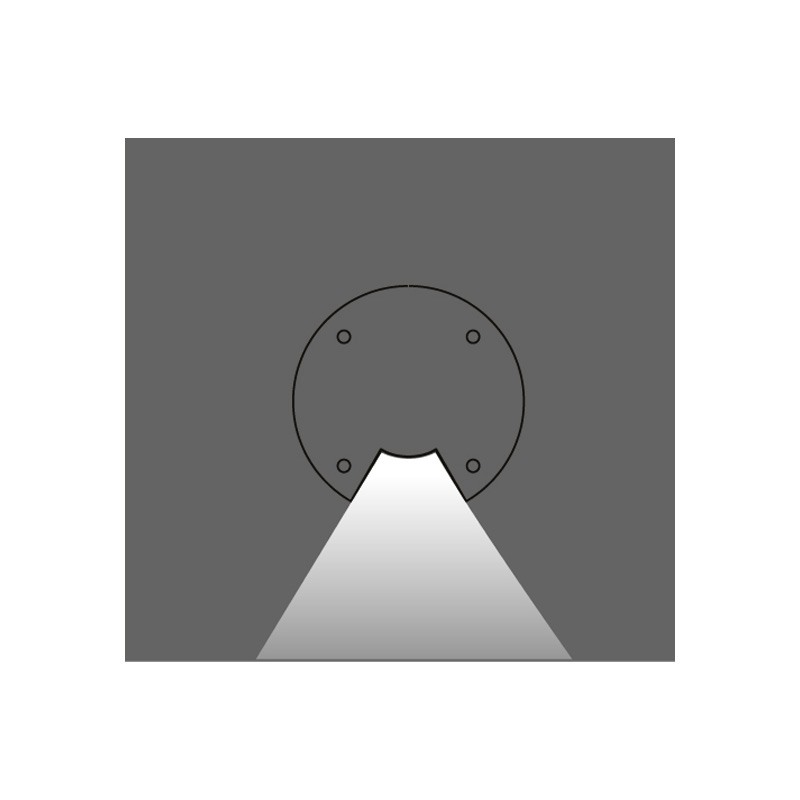

      Mono 1 x 350 mA (4W) LED
    • Kelvin
      3000K
    • Color
      5000 K
    • Real Lumen Output
      380 lm
    • Lumen
      192 lm
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      0.5m 3x0,75 mm H05VV-F
    • IP
      IP67
    • Diffusers
      Polycarbonate
  • Compare
    TEOS 3
    • Product Name
      TEOS Surface Mounted Drive Over Fixtures
    • Power - Current
      Mono 1 x 350 mA (4W) LED
    • Kelvin
      4000K
    • Color
      5000 K
    • Real Lumen Output
      380 lm
    • Lumen
      192 lm
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      0.5m 3x0,75 mm H05VV-F
    • IP
      IP67
    • Diffusers
      Polycarbonate
  • Compare
    TEOS 3
    • Product Name
      TEOS Surface Mounted Drive Over Fixtures
    • Power - Current
      4W
    • Kelvin
      4000K
    • Color
      5000 K
    • Real Lumen Output
      380 lm
    • Lumen
      384 lm
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      0.5m 3x0,75 mm H05VV-F
    • IP
      IP67
    • Diffusers
      Polycarbonate
  • Compare
    TEOS 3
    • Product Name
      TEOS Surface Mounted Drive Over Fixtures
    • Power - Current
      4W
    • Kelvin
      3000K
    • Color
      3000 K
    • Real Lumen Output
      380 lm
    • Lumen
      330 lm
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      0.5m 3x0,75 mm H05VV-F
    • IP
      IP67
    • Diffusers
      Polycarbonate
  • Compare
    TEOS 3
    • Product Name
      TEOS Surface Mounted Drive Over Fixtures
    • Power - Current
      4W
    • Kelvin
      4000K
    • Color
      5000 K
    • Real Lumen Output
      380 lm
    • Lumen
      384 lm
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      0.5m 3x0,75 mm H05VV-F
    • IP
      IP67
    • Diffusers
      Polycarbonate
  • Compare
    TEOS 3
    • Product Name
      TEOS Surface Mounted Drive Over Fixtures
    • Power - Current
      4W
    • Kelvin
      4000K
    • Color
      5000 K
    • Real Lumen Output
      380 lm
    • Lumen
      576 lm
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      0.5m 3x0,75 mm H05VV-F
    • IP
      IP67
    • Diffusers
      Polycarbonate
  • Compare
    TEOS 3
    • Product Name
      TEOS Surface Mounted Drive Over Fixtures
    • Power - Current
      4W
    • Kelvin
      3000K
    • Color
      3000 K
    • Real Lumen Output
      380 lm
    • Lumen
      495 lm
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      0.5m 3x0,75 mm H05VV-F
    • IP
      IP67
    • Diffusers
      Polycarbonate
  • Compare
    TEOS 3
    • Product Name
      TEOS Surface Mounted Drive Over Fixtures
    • Power - Current
      4W
    • Kelvin
      3000K
    • Color
      3000 K
    • Real Lumen Output
      380 lm
    • Lumen
      660 lm
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      0.5m 3x0,75 mm H05VV-F
    • IP
      IP67
    • Diffusers
      Polycarbonate
