ASSOS 4 - Drive Over

  • Technical Specifications
  • Product Name
    ASSOS 4 - Drive Over
  • Body
    Die cast aluminium or aluminium profile with die cast aluminium bottom and connection box.
  • Gaskets
    Silicone
  • Diffusers
    15 mm Tempered Glass
  • Screws
    316L Stainless steel
  • Glands
    2 x PG 13.5
  • Cover
    Die cast aluminium / 316L Stainless Steel
  • Recessing Tube
    Polyamide 6
"Customization” is EMFA’s standard"

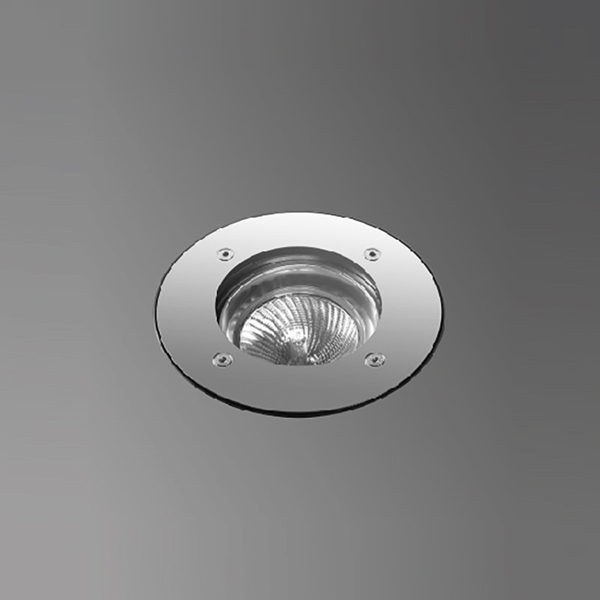

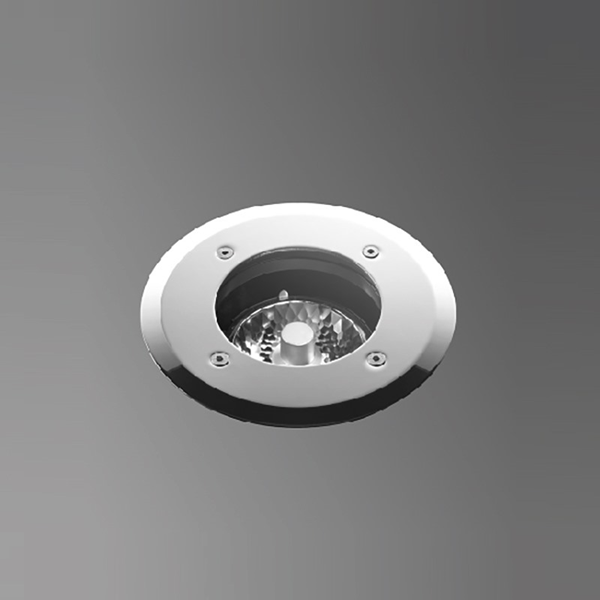

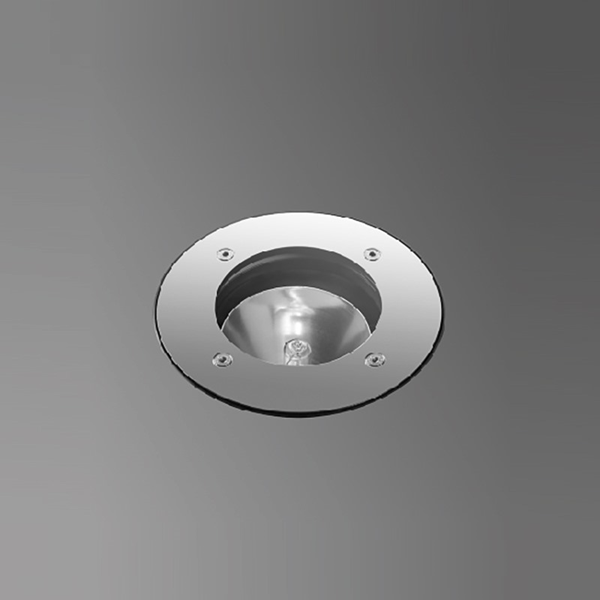

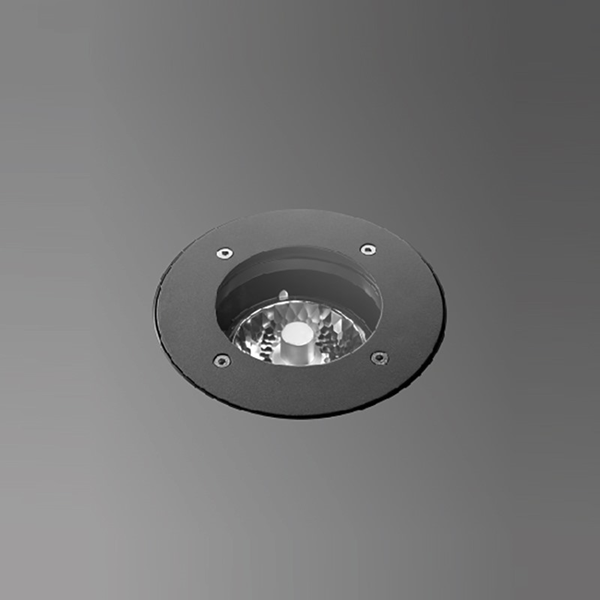

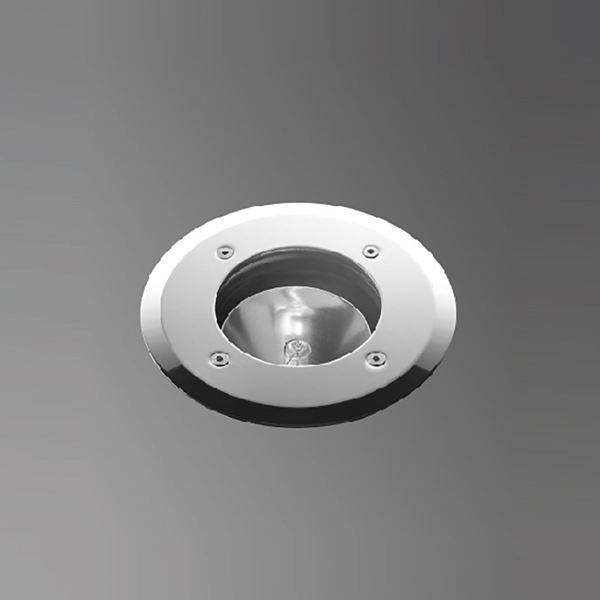

EMFA’s Assos 4 series is specially designed to light facades, columns, monuments and trees. The fixture can be equipped with metal halide, halogen or fluorescent lamps. The fixture has 3 different options of cover: 316 stainless steel, die cast aluminium or bronze in combination with the die cast aluminium body which allows for IP67 and IK10 and a load of 15kN. The fixture comes with a polyamide recessing tube for easy mounting in the ground or concrete. A louvre can be ordered separately to reduce the glare of the lamps. An anti-slip glass is available upon request.

PRODUCT LIST & DOWNLOAD

  • Compare
    ASSOS 4 - Led Lamp - Drive Over
    • Product Name
      ASSOS 4 - Led Lamp - Drive Over
    • Code Number
      221311
    • Power - Current
      PAR30 Led Lamp
    • Lampholder
      E27 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Alum
    • Dimension
      208 x 238 mm
  • Compare
    ASSOS 4 - Led Lamp - Drive Over
    • Product Name
      ASSOS 4 - Led Lamp - Drive Over
    • Code Number
      221321
    • Power - Current
      PAR30 Led Lamp
    • Lampholder
      E27 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Inox
    • Dimension
      208 x 238 mm
  • Compare
    ASSOS 4 - Metal Halide - Drive Over
    • Product Name
      ASSOS 4 - Metal Halide - Drive Over
    • Code Number
      206271
    • Power - Current
      35 W Metal Halide
    • Lampholder
      Gx8.5 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Alum
    • Dimension
      208 x 375 mm
  • Compare
    ASSOS 4 - Metal Halide - Drive Over
    • Product Name
      ASSOS 4 - Metal Halide - Drive Over
    • Code Number
      207271
    • Power - Current
      35 W Metal Halide
    • Lampholder
      Gx8.5 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Inox
    • Dimension
      208 x 375 mm
  • Compare
    ASSOS 4 - Metal Halide - Drive Over
    • Product Name
      ASSOS 4 - Metal Halide - Drive Over
    • Code Number
      206241
    • Power - Current
      35 W Metal Halide
    • Lampholder
      G 12 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Alum
    • Dimension
      208 x 375 mm
  • Compare
    ASSOS 4 - Metal Halide - Drive Over
    • Product Name
      ASSOS 4 - Metal Halide - Drive Over
    • Code Number
      207241
    • Power - Current
      35 W Metal Halide
    • Lampholder
      G 12 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Inox
    • Dimension
      208 x 375 mm
  • Compare
    ASSOS 4 - Metal Halide - Drive Over
    • Product Name
      ASSOS 4 - Metal Halide - Drive Over
    • Code Number
      206251
    • Power - Current
      70 W Metal Halide
    • Lampholder
      G 12 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Alum
    • Dimension
      208 x 375 mm
  • Compare
    ASSOS 4 - Metal Halide - Drive Over
    • Product Name
      ASSOS 4 - Metal Halide - Drive Over
    • Code Number
      206261
    • Power - Current
      150 W Metal Halide
    • Lampholder
      G 12 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Alum
    • Dimension
      208 x 375 mm
  • Compare
    ASSOS 4 - Metal Halide - Drive Over
    • Product Name
      ASSOS 4 - Metal Halide - Drive Over
    • Code Number
      207251
    • Power - Current
      70 W Metal Halide
    • Lampholder
      G 12 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Inox
    • Dimension
      208 x 375 mm
  • Compare
    ASSOS 4 - Metal Halide - Drive Over
    • Product Name
      ASSOS 4 - Metal Halide - Drive Over
    • Code Number
      207261
    • Power - Current
      150 W Metal Halide
    • Lampholder
      G 12 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Inox
    • Dimension
      208 x 375 mm
  • Compare
    ASSOS 4 - Metal Halide - Drive Over
    • Product Name
      ASSOS 4 - Metal Halide - Drive Over
    • Code Number
      206231
    • Power - Current
      70 W Metal Halide
    • Lampholder
      Gx8.5 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Alum
    • Dimension
      208 x 375 mm
  • Compare
    ASSOS 4 - Metal Halide - Drive Over
    • Product Name
      ASSOS 4 - Metal Halide - Drive Over
    • Code Number
      207231
    • Power - Current
      70 W Metal Halide
    • Lampholder
      Gx8.5 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Product Type
      Inox
    • Dimension
      208 x 375 mm
