TRIATHLON 4

  • Technical Specifications
  • Gear
    Non-Dimmable electronic LED driver (1-10V Dimmable and DALI drivers available on request)
  • Cable
    0.5m exiting from top of fixture
  • Body
    Die cast aluminium
  • Diffusers
    High efficiency frosted acrylic diffuser with 90º beam angle
  • Paint
    Electrostatic powder paint RAL 9016 (available in other RAL colors)
  • Springs
    Steel for mounting in ceilings of 1-25mm thickness

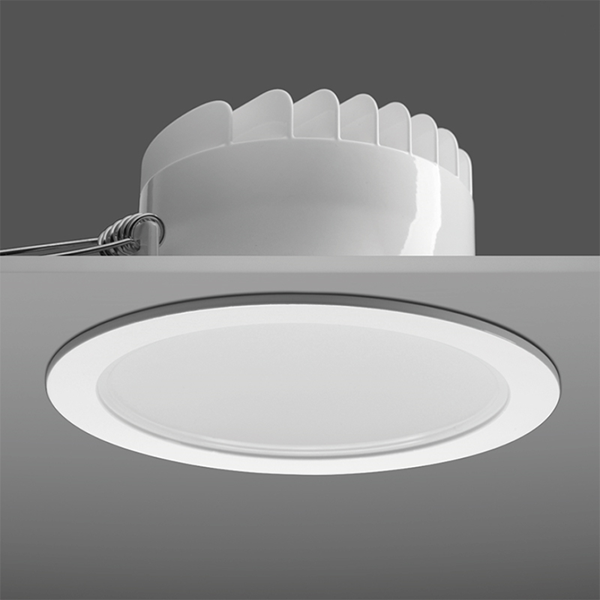

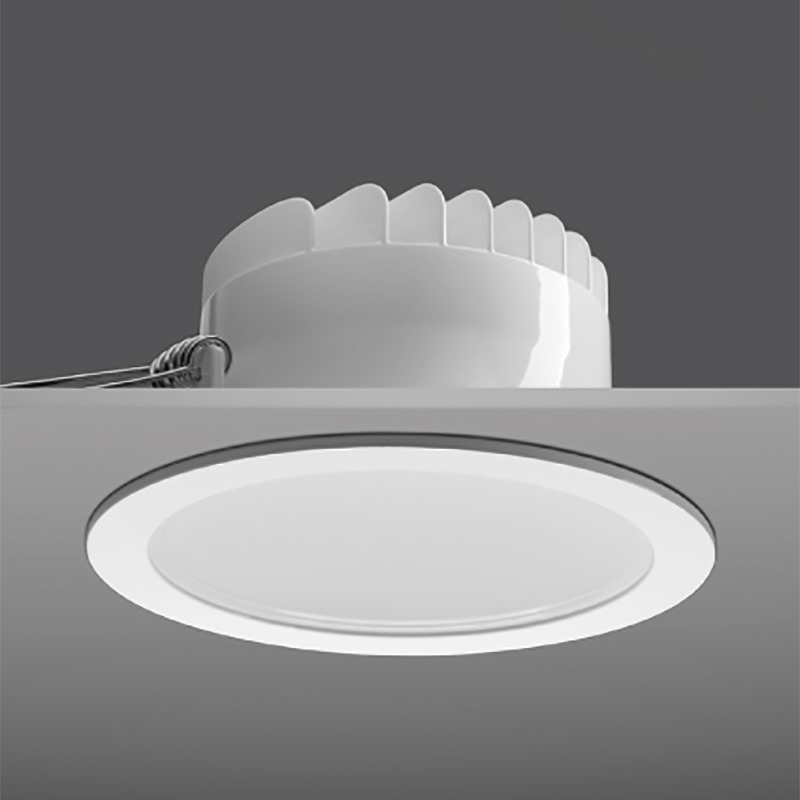

The Triathlon LED Downlight is specially designed to provide highest energy efficiency in general lighting applications. Using latest LED technology in combination with special plastic moulding and paint application allows for around 90lm/W lighting output. The highly efficient diffuser provides a completely homogenous light output. The simple installation method allows for easy installation into ceilings from 1-25mm thickness. One can choose from three compact sizes, 120mm, 150mm, and 175mm to achieve the desired lighting level.

PRODUCT LIST & DOWNLOAD

  • Compare
    TRIATHLON
    • Product Name
      TRIATHLON 4
    • Power - Current
      11W - 350 mA
    • Kelvin
      2700K
    • Color
      2700 K
    • Real Lumen Output
      1045 lm
    • Lumen
      1280 lm
    • Reflector
      90°
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
    • Voltage
      240 V A.C
    • IP
      IP55
  • Compare
    TRIATHLON
    • Product Name
      TRIATHLON 4
    • Power - Current
      11W - 350 mA
    • Kelvin
      3000K
    • Color
      3000 K
    • Real Lumen Output
      1045 lm
    • Lumen
      1280 lm
    • Reflector
      90°
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
    • Voltage
      240 V A.C
    • IP
      IP55
  • Compare
    TRIATHLON
    • Product Name
      TRIATHLON 4
    • Power - Current
      16W - 500 mA
    • Kelvin
      2700K
    • Color
      2700 K
    • Real Lumen Output
      1520 lm
    • Lumen
      1600 lm
    • Reflector
      90°
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
    • Voltage
      240 V A.C
    • IP
      IP55
  • Compare
    TRIATHLON
    • Product Name
      TRIATHLON 4
    • Power - Current
      16W - 500 mA
    • Kelvin
      3000K
    • Color
      3000 K
    • Real Lumen Output
      1520 lm
    • Lumen
      1600 lm
    • Reflector
      90°
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
    • Voltage
      240 V A.C
    • IP
      IP55
  • Compare
    TRIATHLON
    • Product Name
      TRIATHLON 4
    • Power - Current
      20W - 700 mA
    • Kelvin
      2700K
    • Color
      2700 K
    • Real Lumen Output
      1900 lm
    • Lumen
      1900 lm
    • Reflector
      90°
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
    • Voltage
      240 V A.C
    • IP
      IP55
  • Compare
    TRIATHLON
    • Product Name
      TRIATHLON 4
    • Power - Current
      20W - 700 mA
    • Kelvin
      3000K
    • Color
      3000 K
    • Real Lumen Output
      1900 lm
    • Lumen
      1900 lm
    • Reflector
      90°
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
    • Voltage
      240 V A.C
    • IP
      IP55
