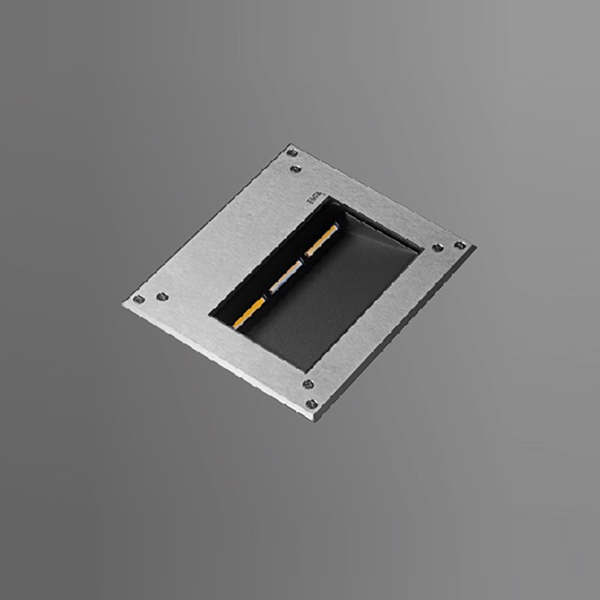

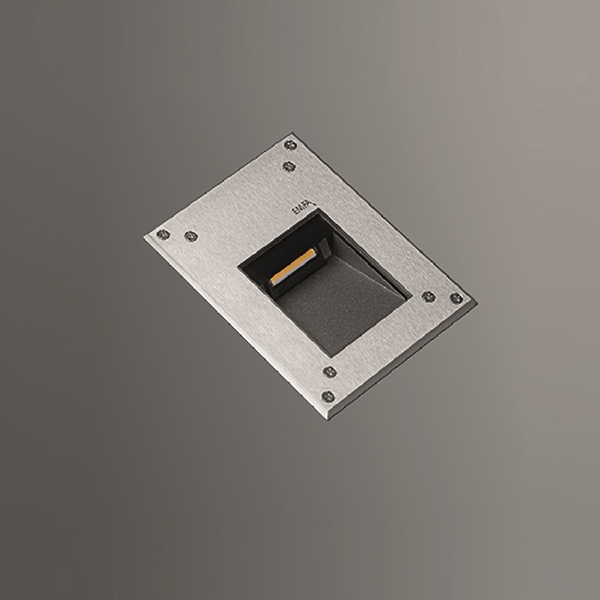

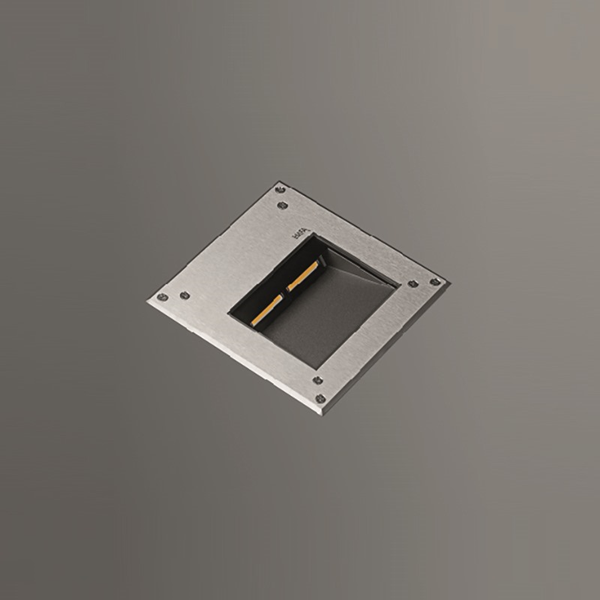

ANI 1-2-3-4 ASYM - Drive Over

  • Technical Specifications
  • Body
    Die cast aluminium
  • Product Name
    ANI 1-2-3-4 ASYM - Drive Over
  • Gaskets
    Silicone
  • Diffusers
    8 mm Tempered Glass
  • Screws
    316L Stainless Steel
  • Cover
    316L Stainless Steel
ORDER FORM
“Customization” is EMFA’s standard

EMFA offers many combinations for each fixture, as all fixtures are made in house. A combination of 6 standard paint colors, 8 LED colors, and 2 wattages, and available to make the fixture suitable for the required application. This is done without increasing lead-time and is available for large as well as small quantities.

ACCESSORIES & IMAGES

PRODUCT DRAWINGS

  • ANI 1-2-3-4 ASYM - Drive Over
  • ANI 1-2-3-4 ASYM - Drive Over
  • ANI 1-2-3-4 ASYM - Drive Over
  • ANI 1-2-3-4 ASYM - Drive Over
  • ANI 1-2-3-4 ASYM - Drive Over

PRODUCT LIST & DOWNLOAD

  • Compare
    ANI 1 - Drive Over
    • Product Name
      ANI 1 - Drive Over
    • Code Number
      450512
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      12W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1195 lm
    • Nominal Lumen Output
      1679 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x130mm / Recessing Box 154x108x80mm (ANI 1)
  • Compare
    ANI 1 - Drive Over
    • Product Name
      ANI 1 - Drive Over
    • Code Number
      450503
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      6W
    • Kelvin
      2700K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      570 lm
    • Nominal Lumen Output
      850 lm
    • IP
      IP67
    • Dimension
      180x130mm / Recessing Box 154x108x80mm (ANI 1)
    • LED
      Linear LEDs
  • Compare
    ANI 1 - Drive Over
    • Product Name
      ANI 1 - Drive Over
    • Code Number
      450513
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      12W
    • Kelvin
      2700K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1140 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP67
    • Dimension
      180x130mm / Recessing Box 154x108x80mm (ANI 1)
    • LED
      Linear LEDs
  • Compare
    ANI 1 - Drive Over
    • Product Name
      ANI 1 - Drive Over
    • Code Number
      450501
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      6W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      570 lm
    • Nominal Lumen Output
      850 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x130mm / Recessing Box 154x108x80mm (ANI 1)
  • Compare
    ANI 1 - Drive Over
    • Product Name
      ANI 1 - Drive Over
    • Code Number
      450502
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      6W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      690 lm
    • Nominal Lumen Output
      977 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x130mm / Recessing Box 154x108x80mm (ANI 1)
  • Compare
    ANI 1 - Drive Over
    • Product Name
      ANI 1 - Drive Over
    • Code Number
      450511
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      12W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1140 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x130mm / Recessing Box 154x108x80mm (ANI 1)
  • Compare
    ANI 2 - Drive Over
    • Product Name
      ANI 2 - Drive Over
    • Code Number
      450603
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      12W
    • Kelvin
      2700K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1140 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP67
    • Dimension
      180x170mm / Recessing Box 154x148x80mm (ANI 2)
    • LED
      Linear LEDs
  • Compare
    ANI 2 - Drive Over
    • Product Name
      ANI 2 - Drive Over
    • Code Number
      450613
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      24W
    • Kelvin
      2700K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      2280 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x170mm / Recessing Box 154x148x80mm (ANI 2)
  • Compare
    ANI 2 - Drive Over
    • Product Name
      ANI 2 - Drive Over
    • Code Number
      450601
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      12W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1140 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x170mm / Recessing Box 154x148x80mm (ANI 2)
  • Compare
    ANI 2 - Drive Over
    • Product Name
      ANI 2 - Drive Over
    • Code Number
      450602
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      12W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1195 lm
    • Nominal Lumen Output
      1679 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x170mm / Recessing Box 154x148x80mm (ANI 2)
  • Compare
    ANI 2 - Drive Over
    • Product Name
      ANI 2 - Drive Over
    • Code Number
      450611
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      24W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      2280 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x170mm / Recessing Box 154x148x80mm (ANI 2)
  • Compare
    ANI 2 - Drive Over
    • Product Name
      ANI 2 - Drive Over
    • Code Number
      450612
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      24W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      2320 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x170mm / Recessing Box 154x148x80mm (ANI 2)
  • Compare
    ANI 3 - Drive Over
    • Product Name
      ANI 3 - Drive Over
    • Code Number
      450702
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      18W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1790 lm
    • Nominal Lumen Output
      1955 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x210mm / Recessing Box 154x188x80mm (ANI 3)
  • Compare
    ANI 3 - Drive Over
    • Product Name
      ANI 3 - Drive Over
    • Code Number
      450712
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      36W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      3520 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x210mm / Recessing Box 154x188x80mm (ANI 3)
  • Compare
    ANI 3 - Drive Over
    • Product Name
      ANI 3 - Drive Over
    • Code Number
      450711
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      36W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      3420 lm
    • Nominal Lumen Output
      3300 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x210mm / Recessing Box 154x188x80mm (ANI 3)
  • Compare
    ANI 3 - Drive Over
    • Product Name
      ANI 3 - Drive Over
    • Code Number
      450703
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      18W
    • Kelvin
      2700K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1710 lm
    • Nominal Lumen Output
      1955 lm
    • IP
      IP67
    • Dimension
      180x210mm / Recessing Box 154x188x80mm (ANI 3)
    • LED
      Linear LEDs
  • Compare
    ANI 3 - Drive Over
    • Product Name
      ANI 3 - Drive Over
    • Code Number
      450713
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      36W
    • Kelvin
      2700K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      3420 lm
    • Nominal Lumen Output
      3300 lm
    • IP
      IP67
    • Dimension
      180x210mm / Recessing Box 154x188x80mm (ANI 3)
    • LED
      Linear LEDs
  • Compare
    ANI 3 - Drive Over
    • Product Name
      ANI 3 - Drive Over
    • Code Number
      450701
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      18W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1710 lm
    • Nominal Lumen Output
      1955 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x210mm / Recessing Box 154x188x80mm (ANI 3)
  • Compare
    ANI 4 - Drive Over
    • Product Name
      ANI 4 - Drive Over
    • Code Number
      450803
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      24W
    • Kelvin
      2700K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      2280 lm
    • Nominal Lumen Output
      2250 lm
    • IP
      IP67
    • Dimension
      180x250mm / Recessing Box 154x228x80mm (ANI 4)
    • LED
      Linear LEDs
  • Compare
    ANI 4 - Drive Over
    • Product Name
      ANI 4 - Drive Over
    • Code Number
      450813
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      36W
    • Kelvin
      2700K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      3420 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP67
    • Dimension
      180x250mm / Recessing Box 154x228x80mm (ANI 4)
    • LED
      Linear LEDs
  • Compare
    ANI 4 - Drive Over
    • Product Name
      ANI 4 - Drive Over
    • Code Number
      450801
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      24W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      2280 lm
    • Nominal Lumen Output
      2250 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x250mm / Recessing Box 154x228x80mm (ANI 4)
  • Compare
    ANI 4 - Drive Over
    • Product Name
      ANI 4 - Drive Over
    • Code Number
      450802
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      24W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      2320 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x250mm / Recessing Box 154x228x80mm (ANI 4)
  • Compare
    ANI 4 - Drive Over
    • Product Name
      ANI 4 - Drive Over
    • Code Number
      450811
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      36W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      3420 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP67
    • LED
      Linear LEDs
    • Dimension
      180x250mm / Recessing Box 154x228x80mm (ANI 4)
  • Compare
    ANI 4 - Drive Over
    • Product Name
      ANI 4 - Drive Over
    • Code Number
      450812
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      36W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      3520 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP67
    • Dimension
      180x250mm / Recessing Box 154x228x80mm (ANI 4)
    • LED
      Linear LEDs
Emfa 2025 © All Rights Reserved.
KVKK Politikası | ONKV Politikası
web design grimor
