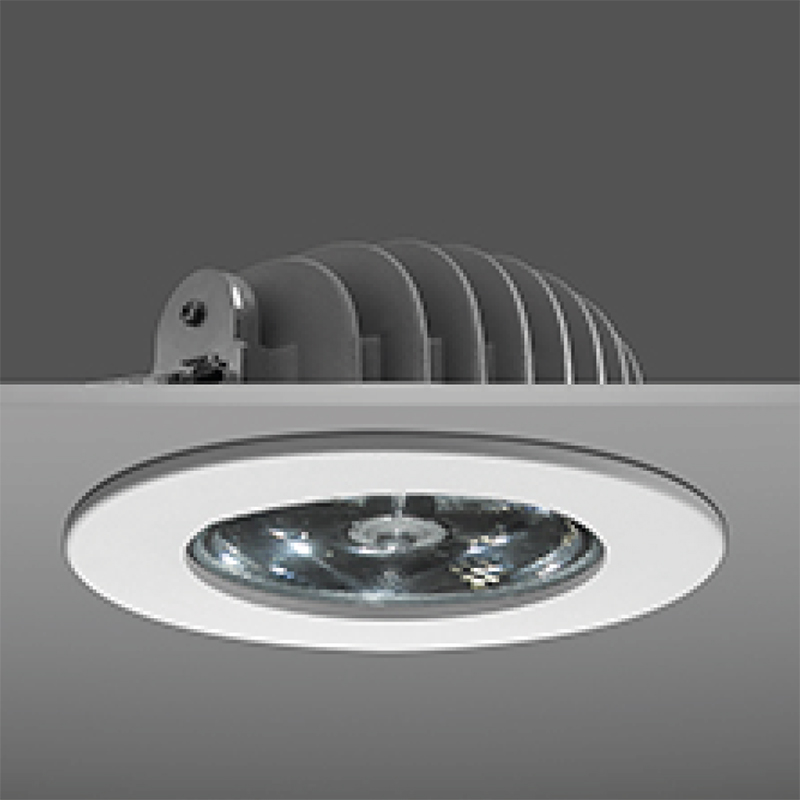

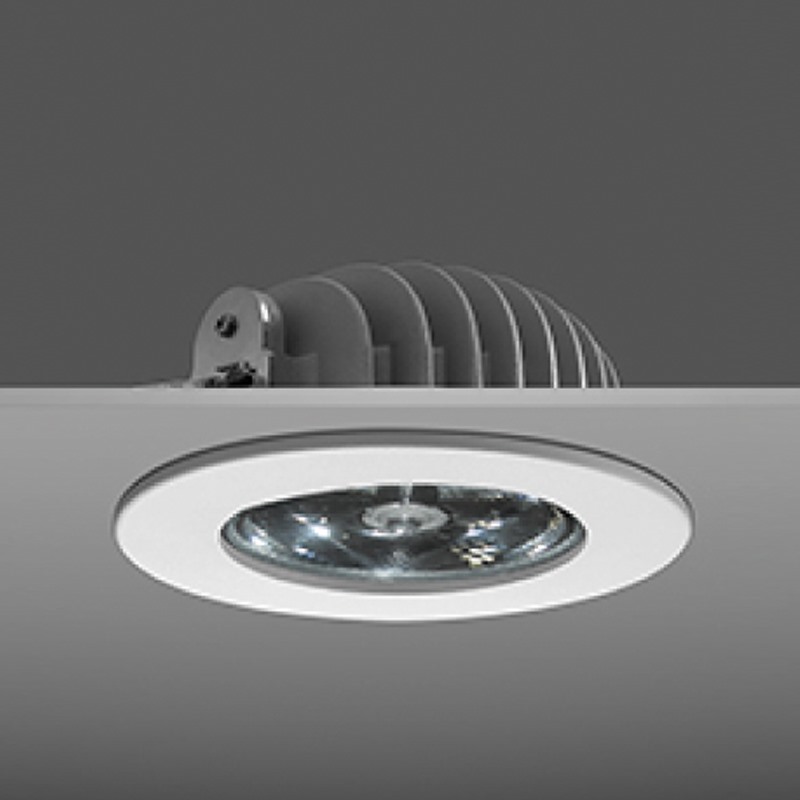

MARATHON 4

Technical Specifications
Body

Die cast aluminium
Gaskets

Silicone
Diffusers

Tempered glass or acrylic
Paint

Electrostatic powder
Bracket

Die cast aluminium
Connection

IP connection box

MARATHON 4

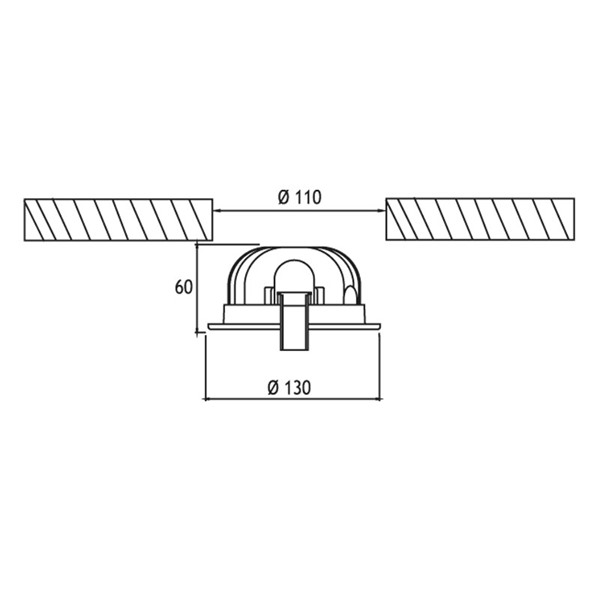

PRODUCT DRAWINGS

MARATHON 4

PRODUCT LIST & DOWNLOAD

Compare
262001
- Product Name

  MARATHON 4 - Downlight
- Color

  3000 K
- Lens

  10°, 20°, 30° Mirror Tir Lens
- Lumen

  1645 lm
- IP

  IP65
- LED

  1 x 350 mA (25W) COB LED
- Datasheet
- Mounting File
Compare
262002
- Product Name

  MARATHON 4 - Downlight
- Color

  4000 K
- Lens

  10°, 20°, 30° Mirror Tir Lens
- Lumen

  1645 lm
- IP

  IP65
- LED

  1 x 350 mA (25W) COB LED
Compare
262021
- Product Name

  MARATHON 4 - Downlight
- Color

  3000 K
- Lens

  10°, 20°, 30° Mirror Tir Lens
- Lumen

  1645 lm
- IP

  IP65
- LED

  1 x 500 mA (32W) COB LED
Compare
262022
- Product Name

  MARATHON 4 - Downlight
- Color

  4000 K
- Lens

  10°, 20°, 30° Mirror Tir Lens
- Lumen

  1645 lm
- IP

  IP65
- LED

  1 x 500 mA (32W) COB LED
- Datasheet
- Mounting File
