KARIA

  • Technical Specifications
  • Body
    Anodized Aluminium profile with polyamid 66 side covers
  • Gaskets
    Silicone
  • Diffusers
    4 mm Tempered glass
  • Screws
    Stainless steel
  • Glands
    2x cable Gland for 5-8mm cable
  • Mounting Brackets
    Polyamide 66 (Stainless Steel on request)

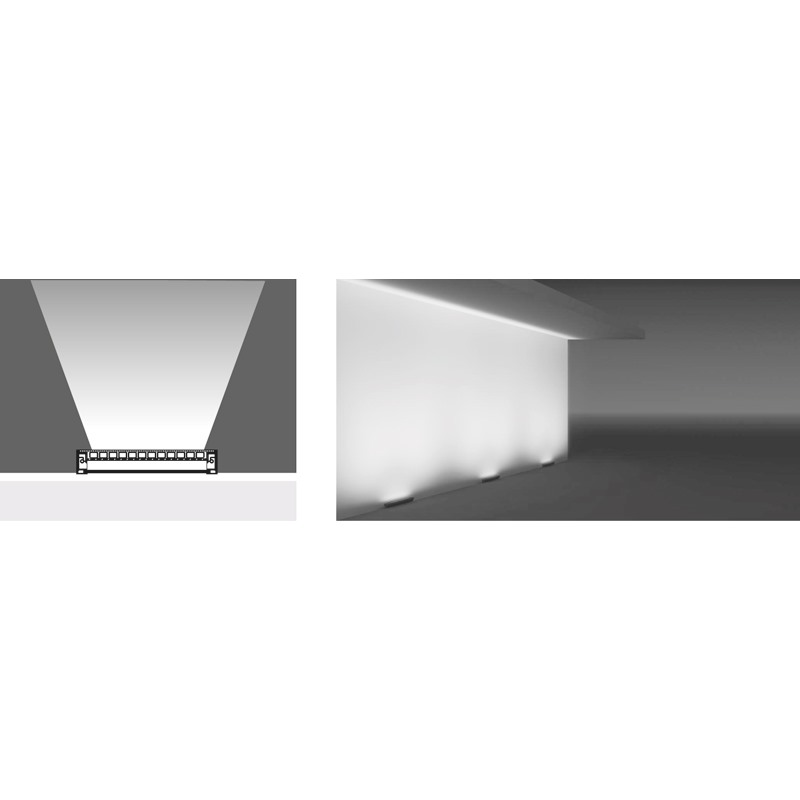

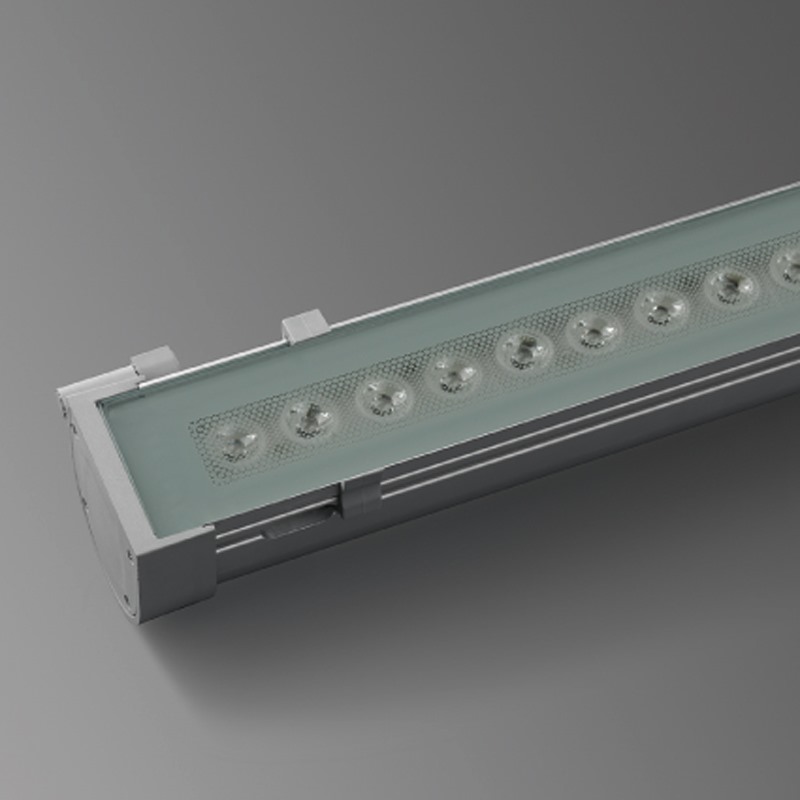

The Karia series consists of a range of LED and fluorescent sources to deliver the desired light effect to facades, columns, bridges, monuments, and signs. The series is made of an anodized extrusion aluminium body with polyamid side covers. Polyamid brackets are used to mount the fixtures. Stainless steel brackets are also available to increase the distance from the mounting surface if necessary. The fixtures come with integrated electronic ballasts and LEDs used come in 3 different tones of white, as well as blue, red, green, amber and RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired the light effect.

PRODUCT LIST & DOWNLOAD

  • Compare
    431111
    • Product Name
      KARIA Class 1
    • Power - Current
      12 W LED
    • Color
      RGB LED
    • Lens
      10°, 25°, 40°, 6x25° elliptic
    • Lumen
      1224 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    431211
    • Body
      KARIA Class 1
    • Power - Current
      24 W LED
    • Color
      4500 K
    • Kelvin
      3000K
    • Lens
      10°, 25°, 40°, 6x25° elliptic
    • Lumen
      2040 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Real Lumen Output
      2280 lm
    • IP
      IP65
  • Compare
    KARIA
    • Body
      KARIA Class 1
    • Power - Current
      24 W LED
    • Color
      3000 K
    • Kelvin
      3000 K
    • Lens
      10°, 25°, 40°, 6x25° elliptic
    • Lumen
      2280 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    KARIA Class 1
    • Product Name
      KARIA Class 1
    • Power - Current
      12 W LED
    • Color
      3000 K
    • Kelvin
      3000K
    • Lens
      10°, 25°, 40°, 6x25° elliptic
    • Lumen
      1020 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Real Lumen Output
      1140 lm
    • IP
      IP67
  • Compare
    KARIA Class 1
    • Product Name
      KARIA Class 1
    • Power - Current
      12 W LED
    • Color
      4500 K
    • Kelvin
      4000K
    • Lens
      10°, 25°, 40°, 6x25° elliptic
    • Lumen
      1020 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Real Lumen Output
      1162 lm
    • IP
      IP67
  • Compare
    KARIA Class 1
    • Product Name
      KARIA Class 1
    • Power - Current
      12 W LED
    • Color
      6000 K
    • Kelvin
      6000K
    • Lens
      10°, 25°, 40°, 6x25° elliptic
    • Lumen
      1224 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Real Lumen Output
      1186 lm
    • IP
      IP67
  • Compare
    KARIA Class 1
    • Product Name
      KARIA Class 1
    • Power - Current
      24 W LED
    • Color
      4500 K
    • Kelvin
      4000K
    • Lens
      10°, 25°, 40°
    • Lumen
      2040 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Real Lumen Output
      2325 lm
    • IP
      IP67
  • Compare
    KARIA Class 1
    • Product Name
      KARIA Class 1
    • Power - Current
      24 W LED
    • Color
      6000 K
    • Kelvin
      6000K
    • Lens
      10°, 25°, 40°
    • Lumen
      2448 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Real Lumen Output
      2372 lm
    • IP
      IP67
  • Compare
    KARIA Class 1
    • Product Name
      KARIA Class 1
    • Power - Current
      36 W LED
    • Color
      3000 K
    • Kelvin
      3000K
    • Lens
      10°, 25°, 40°
    • Lumen
      3060 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Real Lumen Output
      3420 lm
    • IP
      IP67
  • Compare
    KARIA Class 1
    • Product Name
      KARIA Class 1
    • Power - Current
      36 W LED
    • Color
      4500 K
    • Kelvin
      4000K
    • Lens
      10°, 25°, 40°
    • Lumen
      3060 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Real Lumen Output
      3488 lm
    • IP
      IP67
  • Compare
    KARIA Class 1
    • Product Name
      KARIA Class 1
    • Power - Current
      36 W LED
    • Color
      6000 K
    • Kelvin
      6000K
    • Lens
      10°, 25°, 40°
    • Lumen
      3672 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Real Lumen Output
      3558 lm
    • IP
      IP67
  • Compare
    KARIA Class 1
    • Product Name
      KARIA Class 1
    • Power - Current
      27 W LED
    • Color
      RGB LED
    • Lens
      10°, 25°, 40°, 6x25° elliptic
    • Lumen
      3672 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
