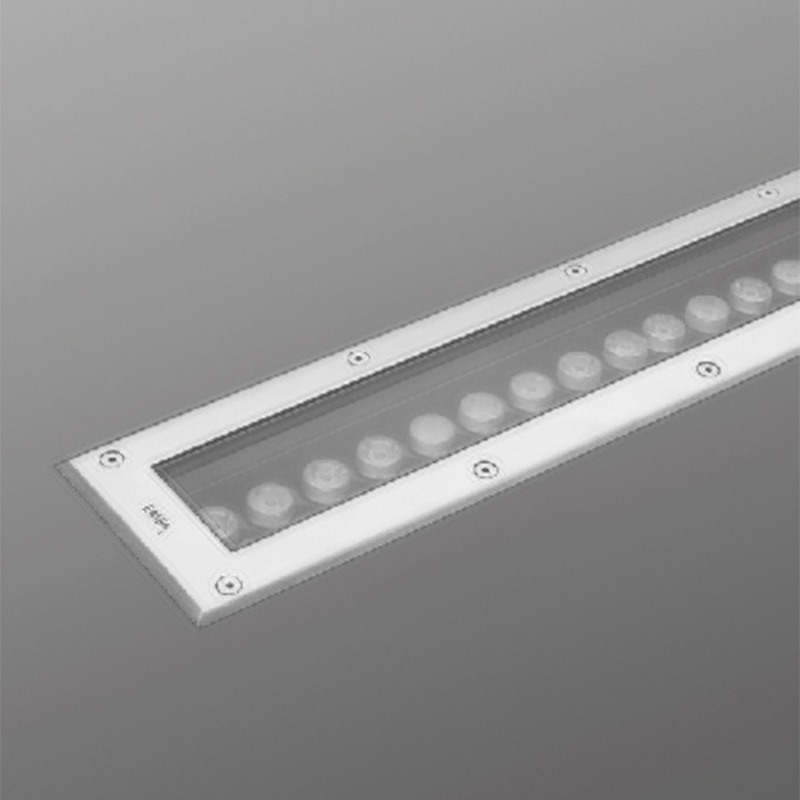

MIRA 5 - Walk Over

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    12 mm Tempered Glass
  • Screws
    316L Stainless Steel
  • Cover
    316L Stainless steel
  • Recessing Box
    Steel
Customization” is EMFA’s standard

The Mira series consists of a range of LED sources to deliver the desired light effect to facades, columns, bridges, monuments, and signs. The series is made of a die cast aluminium body with electrostatic powder paint finished with a 316L stainless steel cover. The recessed versions are for Walk over up to 20 kN including a stainless steel recessing box. The surface mounted versions come with a heavy-duty 316L stainless steel bracket. The fixtures come with integrated electronic ballasts and a specially developed potted power cable to effectively bond with the cast resin and stop any water ingress. The LEDs used come in 3 different tones of white, as well as blue,red, green, amber and RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired the light effect.

PRODUCT LIST & DOWNLOAD

  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441002
    • Power - Current
      9 W
    • Kelvin
      4000 K
    • Real Lumen Output
      872 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67

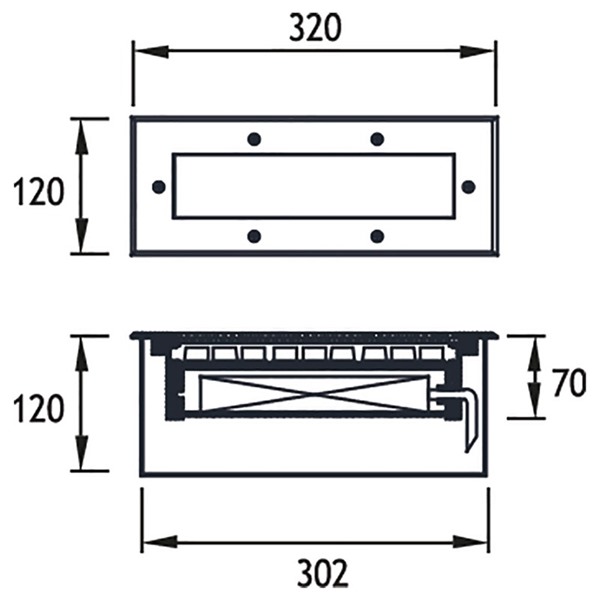

    • Dimension
      340 x 140 x 70 mm / Recessing Box 302 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441003
    • Power - Current
      9 W
    • Kelvin
      6000 K
    • Real Lumen Output
      890 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      340 x 140 x 70 mm / Recessing Box 302 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441004
    • Power - Current
      27 W
    • Color
      RGB
    • Lens
      25° / 40°
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      340 x 140 x 70 mm / Recessing Box 302 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441101
    • Power - Current
      18 W
    • Kelvin
      3000 K
    • Real Lumen Output
      1710 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      644 x 140 x 70 mm / Recessing Box 606 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441102
    • Power - Current
      18 W
    • Kelvin
      4000 K
    • Real Lumen Output
      1744 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      644 x 140 x 70 mm / Recessing Box 606 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441103
    • Power - Current
      18 W
    • Kelvin
      6000 K
    • Real Lumen Output
      1779 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      644 x 140 x 70 mm / Recessing Box 606 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441104
    • Power - Current
      54 W
    • Color
      RGB
    • Lens
      25° / 40°
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      644 x 140 x 70 mm / Recessing Box 606 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441201
    • Power - Current
      36 W
    • Kelvin
      3000 K
    • Real Lumen Output
      3420 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      1040 x 140 x 70 mm / Recessing Box 1002 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441202
    • Power - Current
      36 W
    • Kelvin
      4000 K
    • Real Lumen Output
      3488 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      1040 x 140 x 70 mm / Recessing Box 1002 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441203
    • Power - Current
      36 W
    • Kelvin
      6000 K
    • Real Lumen Output
      3557 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      1040 x 140 x 70 mm / Recessing Box 1002 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441204
    • Power - Current
      81 W
    • Color
      RGB
    • Lens
      25° / 40°
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      1040 x 140 x 70 mm / Recessing Box 1002 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441301
    • Power - Current
      45 W
    • Kelvin
      3000 K
    • Real Lumen Output
      4275 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      1275 x 140 x 70 mm / Recessing Box 1237 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441302
    • Power - Current
      45 W
    • Kelvin
      4000 K
    • Real Lumen Output
      4360 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      1275 x 140 x 70 mm / Recessing Box 1237 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441303
    • Power - Current
      45 W
    • Kelvin
      6000 K
    • Real Lumen Output
      4360 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      1275 x 140 x 70 mm / Recessing Box 1237 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441304
    • Power - Current
      45 W
    • Kelvin
      2700 K
    • Real Lumen Output
      4275 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      1275 x 140 x 70 mm / Recessing Box 1237 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441005
    • Power - Current
      9 W
    • Kelvin
      2700 K
    • Real Lumen Output
      855 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      340 x 140 x 70 mm / Recessing Box 302 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441001
    • Power - Current
      9 W
    • Kelvin
      3000 K
    • Real Lumen Output
      855 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      340 x 140 x 70 mm / Recessing Box 302 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441105
    • Power - Current
      18 W
    • Kelvin
      2700 K
    • Real Lumen Output
      1710 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      644 x 140 x 70 mm / Recessing Box 606 x 102 x 120 mm
  • Compare
    MIRA 5 - Led - Walk Over
    • Product Name
      MIRA 5 - Led - Walk Over
    • Code Number
      441205
    • Power - Current
      36 W
    • Kelvin
      2700 K
    • Real Lumen Output
      3420 lm
    • Lens
      10° / 25° / 40°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • LED
      Power LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      1040 x 140 x 70 mm / Recessing Box 1002 x 102 x 120 mm
