BELKIS 3

  • Technical Specifications
  • Body
    Die cast aluminium or aluminium profile with die cast aluminium bottom and connection box.
  • Gaskets
    Silicone
  • Diffusers
    5 mm ribbed tempered Glass
  • Glands
    2 x PG 13.5
  • Cover
    316L Stainless steel
  • Recessing Tube
    Polyamide 6
Customization” is EMFA’s standard

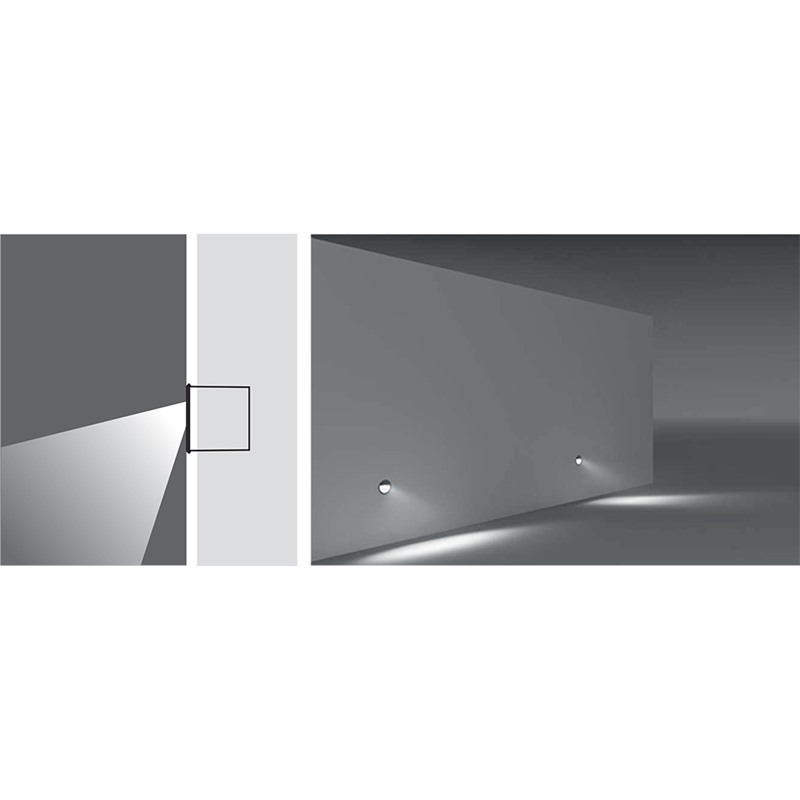

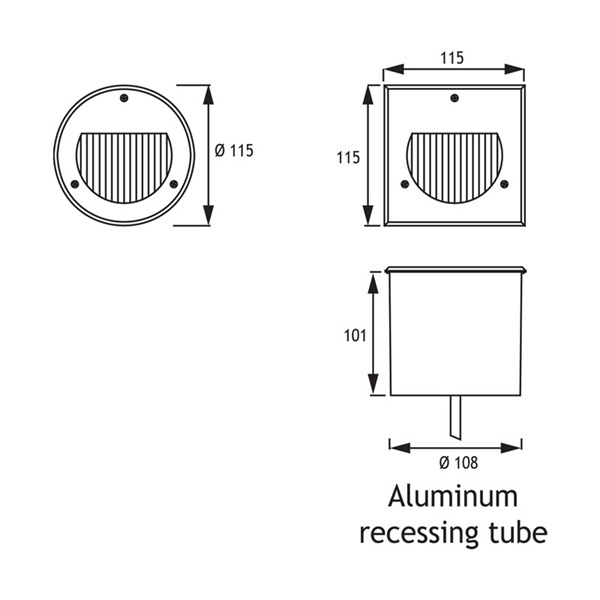

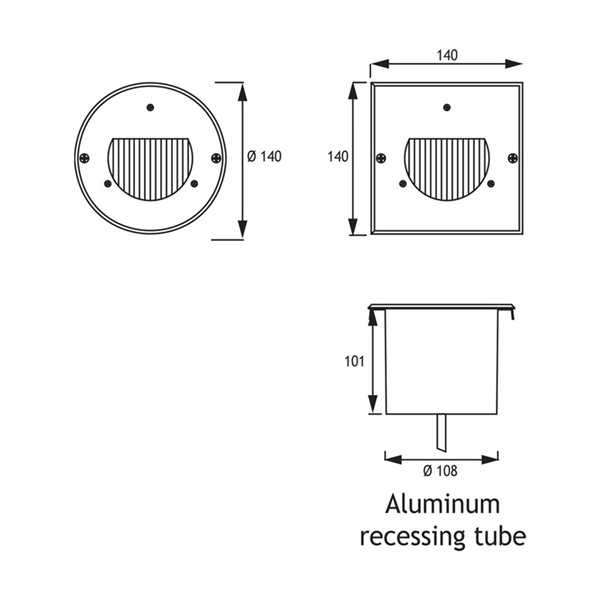

EMFA’s Belkıs 3 Wall Recessed Fixture is specially designed to deliver glare-free lighting in open areas and pathways. The combination of the ribbed glass, which creates a horizontal elliptical light output and the lamp cover, which hides the source of light, allows for an unobtrusive comfortable lighting effect. The fixture is made of a combination of 316L stainless steel and aluminium. The narrow depth of 101 mm allows the fixture to be installed in most walls. The electronic ballast is housed in the thermally separated base of the fixture.

PRODUCT LIST & DOWNLOAD

  • Compare
    BELKIS 3
    • Product Name
      BELKIS 3
    • Mounting
      Fix to recessing Tube with Silicone
    • Power - Current
      250 Ma (7W) LED
    • Color
      3000 K
    • Kelvin
      3000K
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Product Type

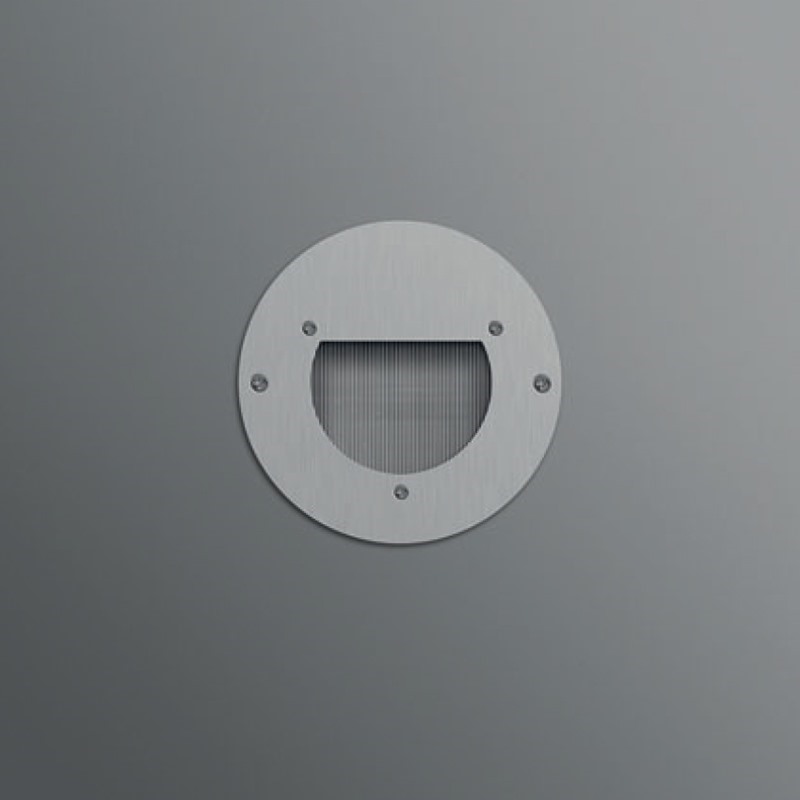

      Round
    • Real Lumen Output
      665 lm
    • IP
      IP65
  • Compare
    BELKIS 3
    • Product Name
      BELKIS 3
    • Mounting
      Fix to recessing Tube with Silicone
    • Power - Current
      250 Ma (7W) LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Product Type
      Round
    • Real Lumen Output
      678 lm
    • IP
      IP65
  • Compare
    BELKIS 3
    • Product Name
      BELKIS 3
    • Mounting
      Fix to recessing Tube with Silicone
    • Power - Current
      27W
    • Color
      3000 K
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Product Type

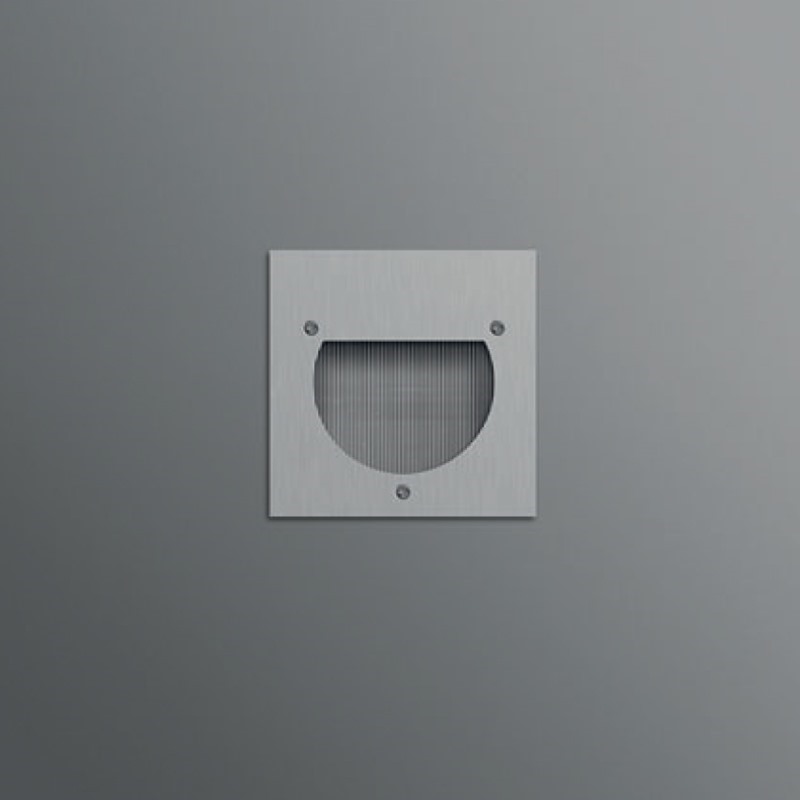

      Square
    • IP
      IP67
  • Compare
    BELKIS 3
    • Product Name
      BELKIS 3
    • Mounting
      Fix to recessing Tube with Silicone
    • Power - Current
      250 Ma (7W) LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Product Type
      Square
    • Real Lumen Output
      678 lm
    • IP
      IP65
  • Compare
    BELKIS 3
    • Product Name
      BELKIS 3
    • Mounting
      Fix to recessing Tube with Screws
    • Power - Current
      250 Ma (7W) LED
    • Color
      3000 K
    • Kelvin
      3000K
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Product Type
      Round
    • Real Lumen Output
      665 lm
    • IP
      IP65
  • Compare
    BELKIS 3
    • Product Name
      BELKIS 3
    • Mounting
      Fix to recessing Tube with Screws
    • Power - Current
      250 Ma (7W) LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Product Type
      Round
    • Real Lumen Output
      678 lm
    • IP
      IP65
  • Compare
    BELKIS 3
    • Product Name
      BELKIS 3
    • Mounting
      Fix to recessing Tube with Screws
    • Power - Current
      250 Ma (7W) LED
    • Color
      3000 K
    • Kelvin
      3000K
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Product Type
      Square
    • Real Lumen Output
      665 lm
    • IP
      IP65
  • Compare
    BELKIS 3
    • Product Name
      BELKIS 3
    • Mounting
      Fix to recessing Tube with Screws
    • Power - Current
      250 Ma (7W) LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Product Type
      Square
    • Real Lumen Output
      678 lm
    • IP
      IP65
