ANI 4 SIDE POLE

  • Technical Specifications
  • Pole
    Aluminium Profile
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    4 mm Tempered Glass
  • Screws
    316L Stainless Steel
  • Glands
    PG 11
ORDER FORM

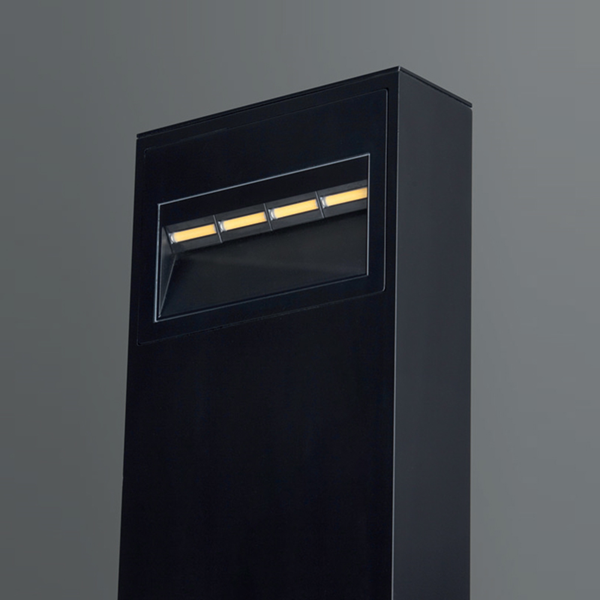

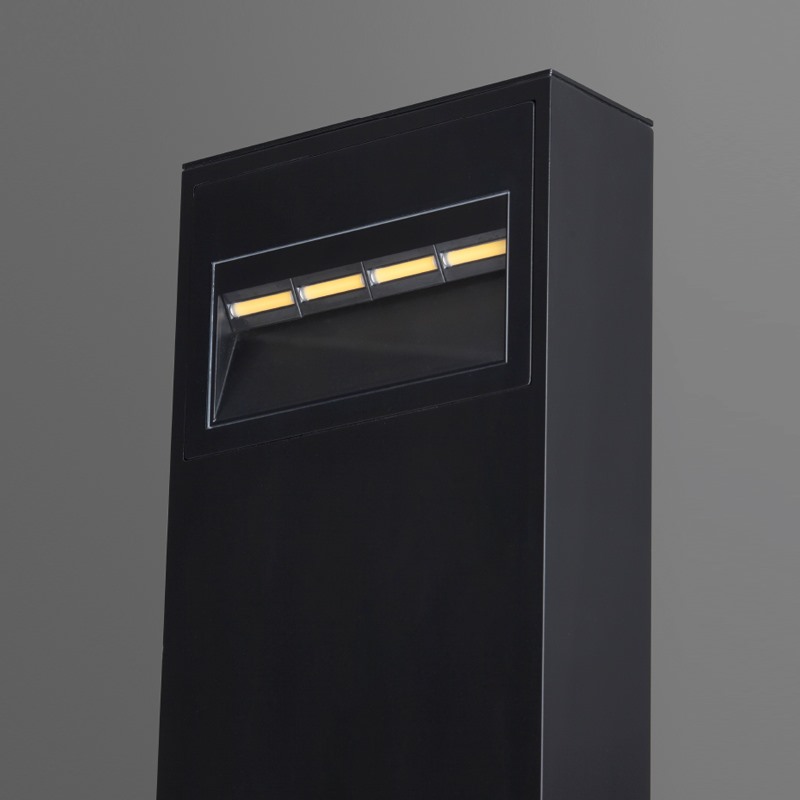

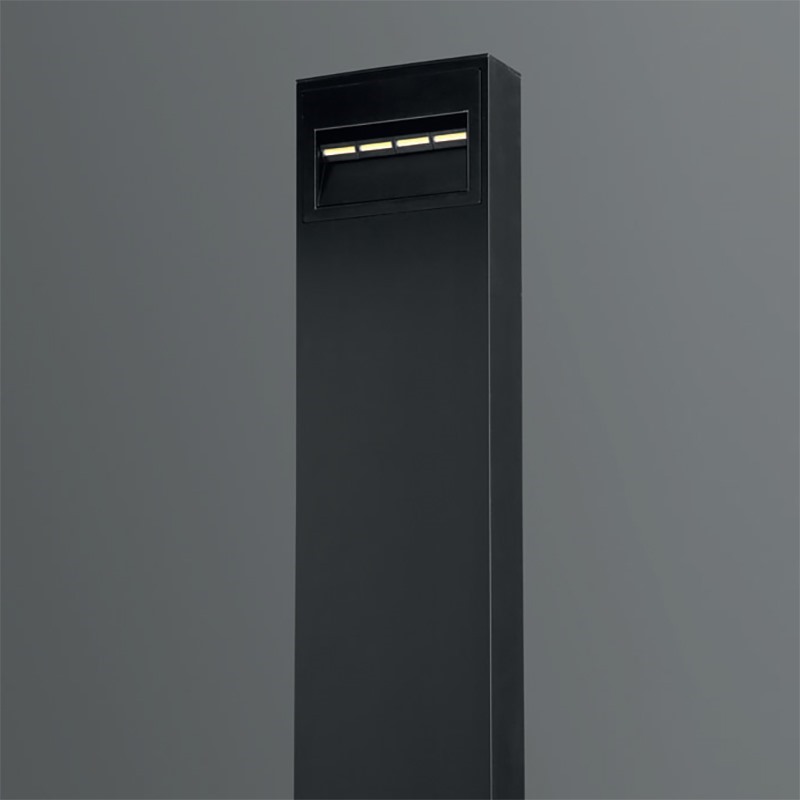

EMFA’s ANI pole mounted series have been designed for high efficiency and ease of installation incorporating the latest in LED technology and control systems. The special lens directs the light flow precisely and makes the whole luminaire system efficient. This compact and essential design is made of a combination of aluminium profile and die cast aluminium.

ACCESSORIES & IMAGES

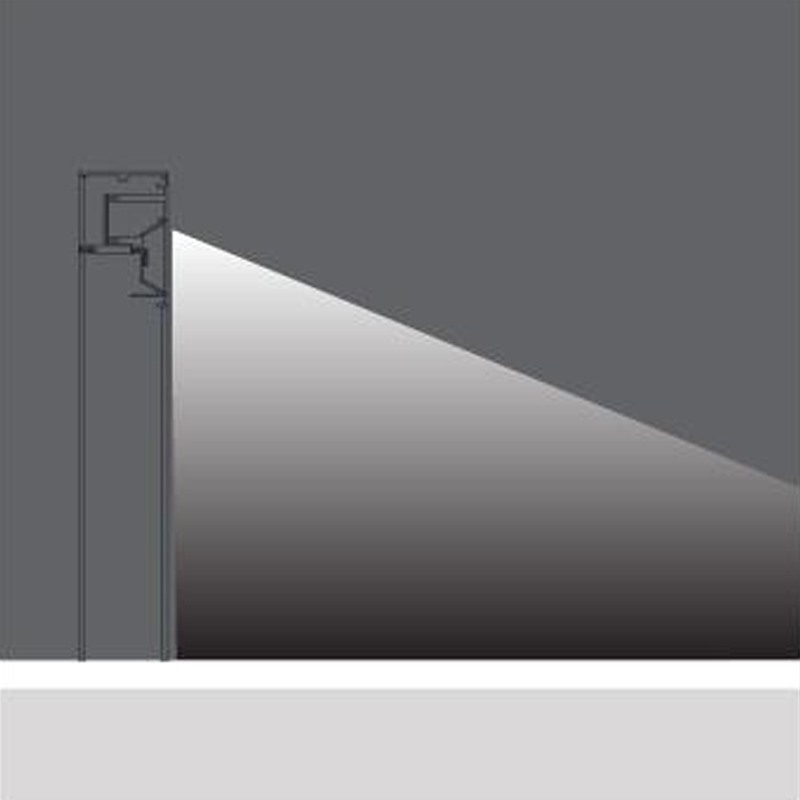

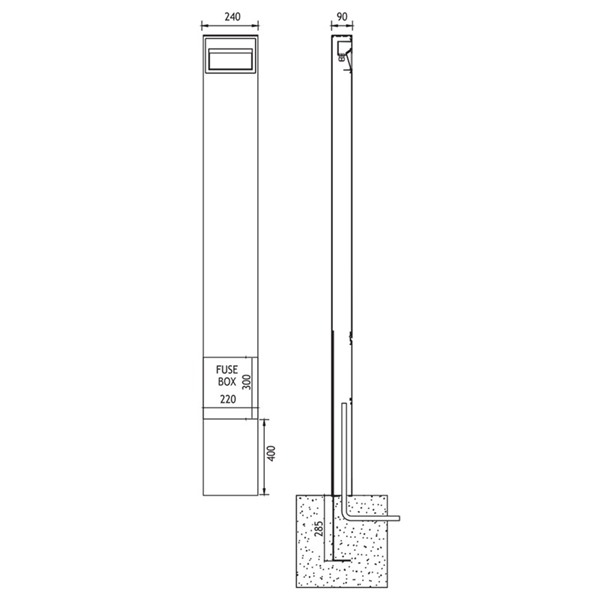

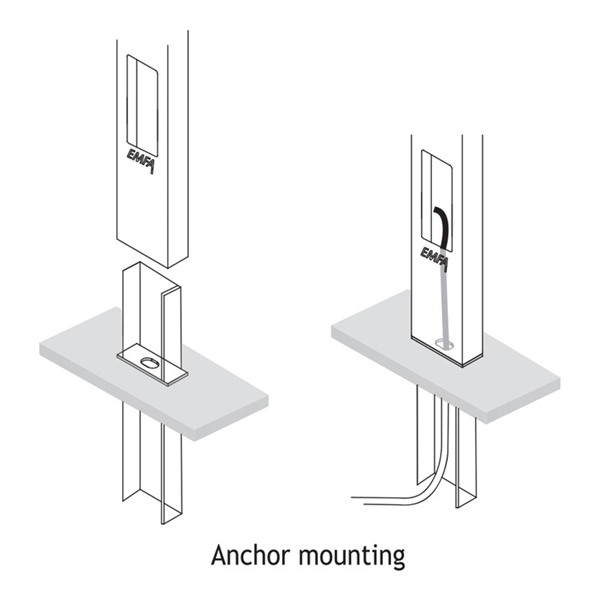

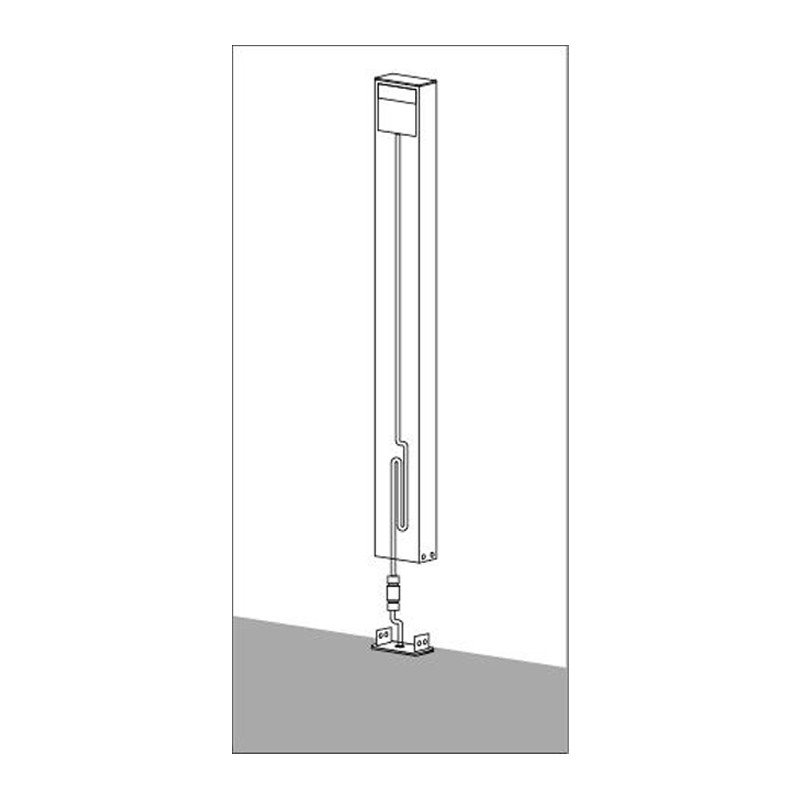

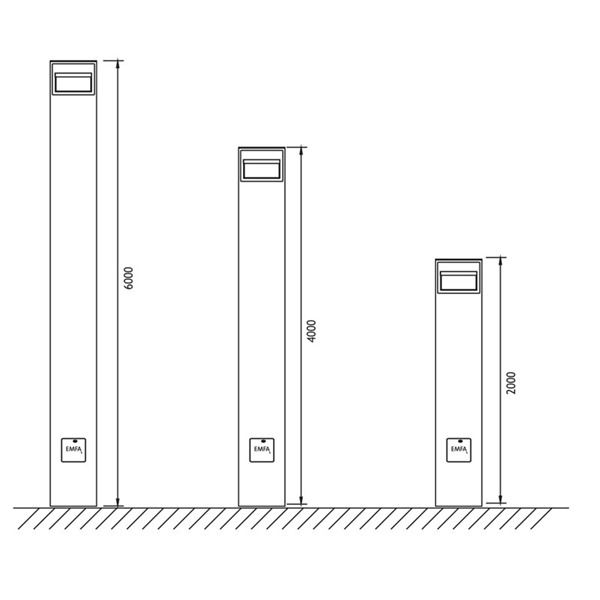

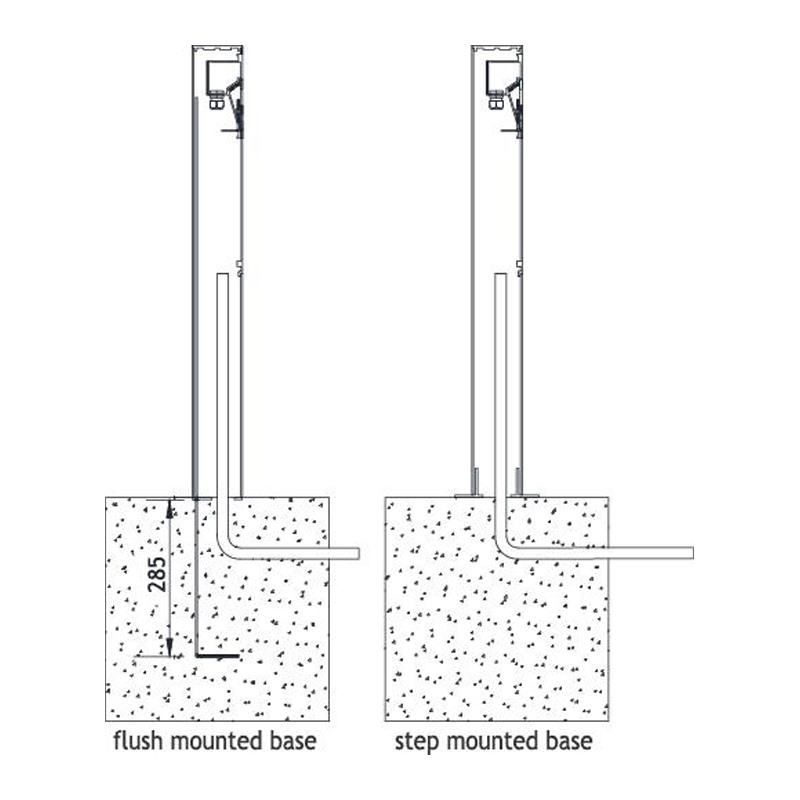

PRODUCT DRAWINGS

  • ANI 4 SIDE POLE
  • ANI 4 SIDE POLE
  • ANI 4 SIDE POLE
  • ANI 4 SIDE POLE
  • ANI 4 SIDE POLE
  • ANI 4 SIDE POLE

PRODUCT LIST & DOWNLOAD

  • Compare
    460001
    • Product Name
      Ani 4 Side Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    460002
    • Product Name
      Ani 4 Side Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    460011
    • Product Name
      Ani 4 Side Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    460012
    • Product Name
      Ani 4 Side Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    460101
    • Product Name
      Ani 4 Side Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • LED
      Linear LEDs
  • Compare
    460102
    • Product Name
      Ani 4 Side Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    460111
    • Product Name
      Ani 4 Side Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    460112
    • Product Name
      Ani 4 Side Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    460201
    • Product Name
      Ani 4 Side Pole (6000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    460211
    • Product Name
      Ani 4 Side Pole (6000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    460212
    • Product Name
      Ani 4 Side Pole (6000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP65
    • LED
      Linear LEDs
