LEON

  • Technical Specifications
  • Head
    Die cast aluminium
  • Pipe
    Extrusion aluminium
  • Diffusers
    Frosted polyamide 6.6
  • Paint
    Electrostatic powder

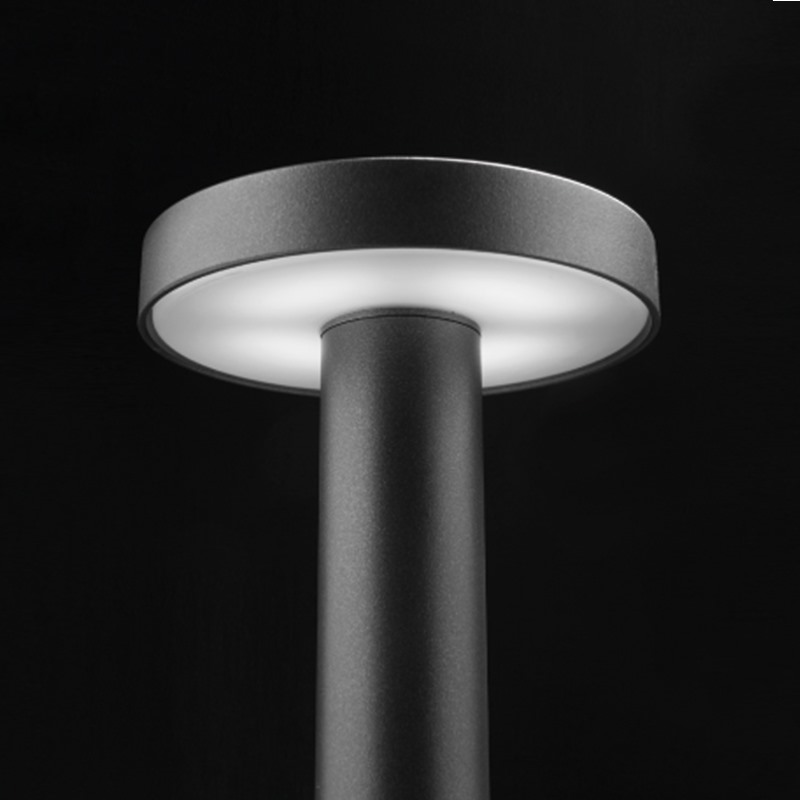

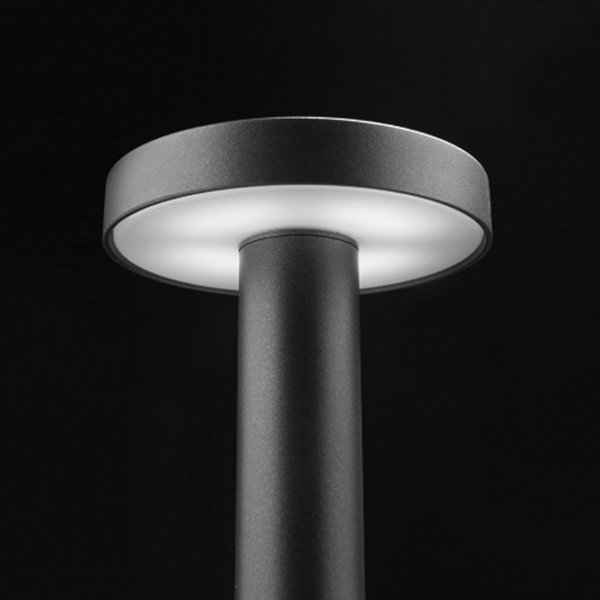

EMFA’s Leon Bollard combines a die-cast aluminium head housing an LED unit with an extrusion aluminium pipe. The bollard is designed to light pathways, landscapes and open spaces. The Leon bollard gives light only in the downward direction. This avoids any kind of glare and light pollution. The head and pipe are connected by a hidden screw within the pipe. The head contains LEDs that can be powered up to 12W. An optional galvanized steel anchorage kit is available for mounting into concrete. An alternative option is sleave anchors for mounting onto existing concrete or a picket to mount into the earth.

PRODUCT LIST & DOWNLOAD

  • Compare
    CIRCULAR LED
    • Product Name
      LEON (350 mm)
    • CRI
      >80
    • Power - Current
      6W
    • Color
      3000 K
    • Kelvin
      3000K
    • Lumen
      720 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      570 lm
    • IP
      IP65
    • Lamp
      350 mA (6W) CIRCULAR LED
    • LED
      Circular LEDs (6W or 12W)
  • Compare
    CIRCULAR LED
    • Product Name
      LEON (350 mm)
    • CRI
      >80
    • Power - Current
      6W
    • Color
      4000 K
    • Kelvin
      4000K
    • Lumen
      790 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      581 lm
    • IP
      IP65
    • Lamp
      350 mA (6W) CIRCULAR LED
    • LED
      Circular LEDs (6W or 12W)
  • Compare
    CIRCULAR LED
    • Product Name
      LEON (350 mm)
    • CRI
      >80
    • Power - Current
      12W
    • Color
      3000 K
    • Kelvin
      3000K
    • Lumen
      1390 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1140 lm
    • IP
      IP65
    • Lamp
      700 mA (12W) CIRCULAR LED
    • LED
      Circular LEDs (6W or 12W)
  • Compare
    CIRCULAR LED
    • Product Name
      LEON (350 mm)
    • CRI
      >80
    • Power - Current
      12W
    • Color
      4000 K
    • Kelvin
      4000K
    • Lumen
      1380 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1162 lm
    • IP
      IP65
    • Lamp
      700 mA (12W) CIRCULAR LED
    • LED
      Circular LEDs (6W or 12W)
  • Compare
    CIRCULAR LED
    • Product Name
      LEON (500 mm)
    • CRI
      >80
    • Power - Current
      6W
    • Color
      3000 K
    • Kelvin
      3000K
    • Lumen
      720 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      570 lm
    • IP
      IP65
    • Lamp
      350 mA (6W) CIRCULAR LED
    • LED
      Circular LEDs (6W or 12W)
  • Compare
    CIRCULAR LED
    • Product Name
      LEON (500 mm)
    • CRI
      >80
    • Power - Current
      12W
    • Color
      3000 K
    • Kelvin
      3000K
    • Lumen
      1380 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1140 lm
    • IP
      IP65
    • Lamp
      700 mA (12W) CIRCULAR LED
    • LED
      Circular LEDs (6W or 12W)
  • Compare
    CIRCULAR LED
    • Product Name
      LEON (500 mm)
    • CRI
      >80
    • Power - Current
      12W
    • Color
      4000 K
    • Kelvin
      4000K
    • Lumen
      1380 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1162 lm
    • IP
      IP65
    • Lamp
      700 mA (12W) CIRCULAR LED
    • LED
      Circular LEDs (6W or 12W)
  • Compare
    CIRCULAR LED
    • Product Name
      LEON (700 mm)
    • CRI
      >80
    • Power - Current
      6W
    • Color
      3000 K
    • Kelvin
      3000K
    • Lumen
      720 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      570 lm
    • IP
      IP65
    • Lamp
      350 mA (6W) CIRCULAR LED
    • LED
      Circular LEDs (6W or 12W)
  • Compare
    CIRCULAR LED
    • Product Name
      LEON (700 mm)
    • CRI
      >80
    • Power - Current
      6W
    • Color
      4000 K
    • Kelvin
      4000K
    • Lumen
      790 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      581 lm
    • IP
      IP65
    • Lamp
      350 mA (6W) CIRCULAR LED
    • LED
      Circular LEDs (6W or 12W)
  • Compare
    CIRCULAR LED
    • Product Name
      LEON (700 mm)
    • CRI
      >80
    • Power - Current
      12W
    • Color
      3000 K
    • Kelvin
      3000K
    • Lumen
      1380 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1140 lm
    • IP
      IP65
    • Lamp
      700 mA (12W) CIRCULAR LED
    • LED
      Circular LEDs (6W or 12W)
  • Compare
    CIRCULAR LED
    • Product Name
      LEON (700 mm)
    • CRI
      >80
    • Power - Current
      12W
    • Color
      4000 K
    • Kelvin
      4000K
    • Lumen
      1380 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1162 lm
    • IP
      IP65
    • Lamp
      700 mA (12W) CIRCULAR LED
    • LED
      Circular LEDs (6W or 12W)
  • Compare
    LEON 187001 (27W LED 2700K - Single)
    • Code Number
      187001
    • Power - Current
      27W
    • Kelvin
      2700 K
    • Lumen
      2050 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2050 lm
    • IP
      IP65
    • Dimension
      Çap: Ø400 mm
  • Compare
    LEON 187002 (27W LED 3000K - Single)
    • Code Number
      187002
    • Power - Current
      27W
    • Kelvin
      3000 K
    • Lumen
      2050 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2050 lm
    • IP
      IP65
    • Dimension
      Çap: Ø400 mm
  • Compare
    LEON 187003 (27W LED 4000K - Single)
    • Code Number
      187003
    • Power - Current
      27W
    • Kelvin
      4000 K
    • Lumen
      2180 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2180 lm
    • IP
      IP65
    • Dimension
      Çap: Ø400 mm
  • Compare
    LEON 187101 (27W LED 2700K - Twin)
    • Code Number
      187101
    • Power - Current
      27W
    • Kelvin
      2700 K
    • Lumen
      2050 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2050 lm
    • IP
      IP65
    • Dimension
      Çap: Ø400 mm
  • Compare
    LEON 187102 (27W LED 3000K - Twin)
    • Code Number
      187102
    • Power - Current
      27W
    • Kelvin
      3000 K
    • Lumen
      2050 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2050 lm
    • IP
      IP65
    • Dimension
      Çap: Ø400 mm
  • Compare
    LEON 187103 (27W LED 4000K - Twin)
    • Code Number
      187103
    • Power - Current
      27W
    • Kelvin
      4000 K
    • Lumen
      2180 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2180 lm
    • IP
      IP65
    • Dimension
      Çap: Ø400 mm
  • Compare
    LEON 187201 (27W LED 2700K - Triple)
    • Code Number
      187201
    • Power - Current
      27W
    • Kelvin
      2700 K
    • Lumen
      2050 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2050 lm
    • IP
      IP65
    • Dimension
      Çap: Ø400 mm
  • Compare
    LEON 187202 (27W LED 3000K - Triple)
    • Code Number
      187202
    • Power - Current
      27W
    • Kelvin
      3000 K
    • Lumen
      2050 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2050 lm
    • IP
      IP65
    • Dimension
      Çap: Ø400 mm
  • Compare
    LEON 187203 (27W LED 4000K - Triple)
    • Code Number
      187203
    • Power - Current
      27W
    • Kelvin
      4000 K
    • Lumen
      2180 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2180 lm
    • IP
      IP65
    • Dimension
      Çap: Ø400 mm
