DION 5

  • Technical Specifications
  • Head
    Die cast aluminium, With Screwless lock system (Electrical lock on request)
  • Pipe
    Extrusion aluminium
  • Diffusers
    Clear polycarbonate
  • Paint
    Electrostatic powder
  • Outer Protective Grill
    Die cast aluminium
  • Inner Asymmetrical Grill
    Polycarbonate

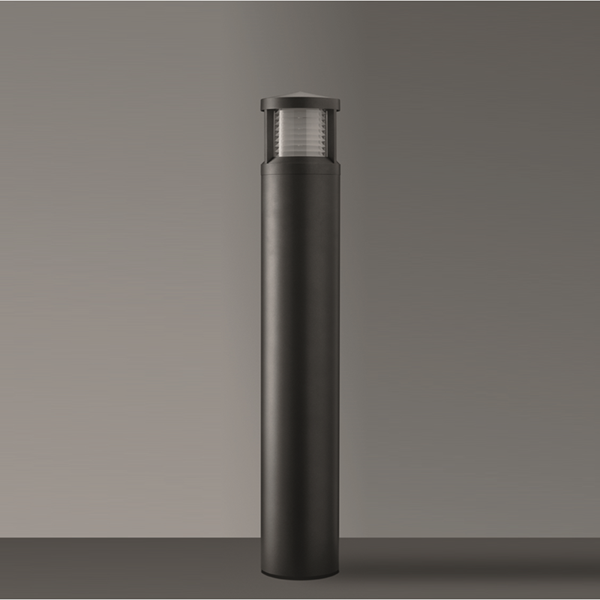

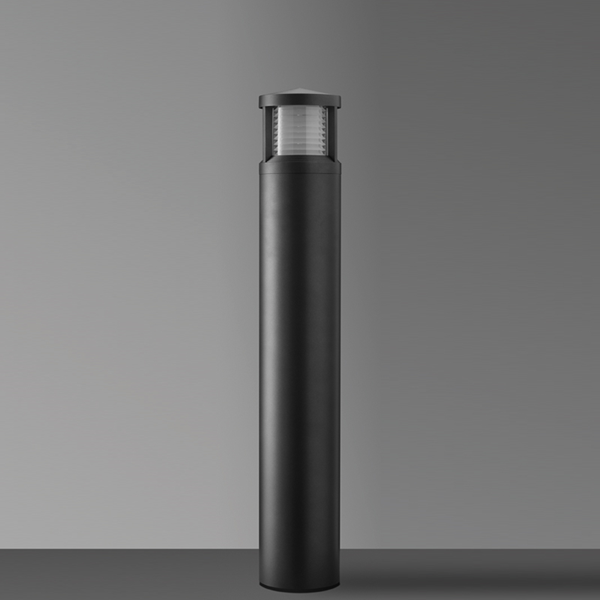

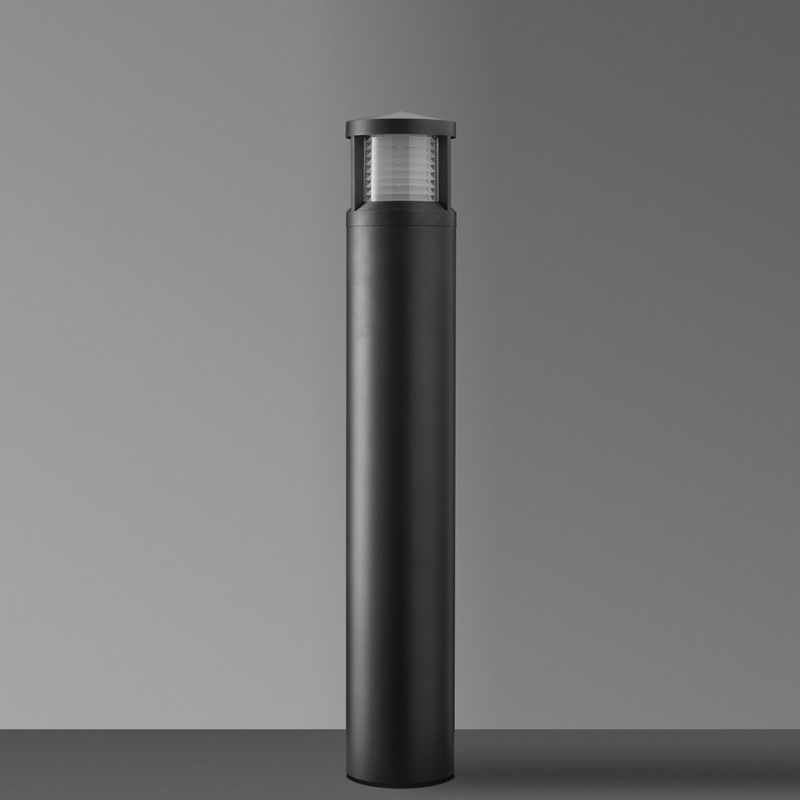

EMFA’s Dion series combines a die-cast aluminium head with an extrusion aluminium pipe to provide a sturdy, outdoor bollard. The bollards are designed to light pathways, landscapes and open spaces. The unit comes with 5 different heads for various light outputs and applications. A screwless bayonet lock system allows for easy dismounting of the head. The unit comes in 4 sizes: 300mm, 450mm, 700mm, and 1100mm, as well as with 3 lamp options: LED, Fluorescent, Metal Halide. In combination with the fluorescent lamp, an optional LED pilot lamp is available to light the bollard when the primary light source is off to continue marking a path while saving energy. An optional galvanized steel anchorage kit is available for mounting into concrete. An alternative option is sleeve anchors for mounting onto existing concrete.

PRODUCT LIST & DOWNLOAD

  • Compare
    147101
    • Product Name

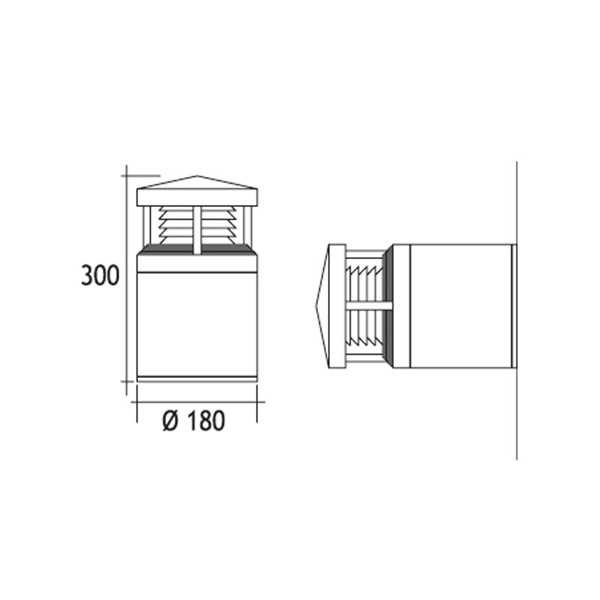

      Dion 5 Wall (30cm)
    • Power - Current
      10W
    • Voltage
      240 V A.C
    • IP
      IP65
    • Lamp
      FLUO. 10W
    • Lampholder
      G24 q-1
  • Compare
    147201
    • Product Name

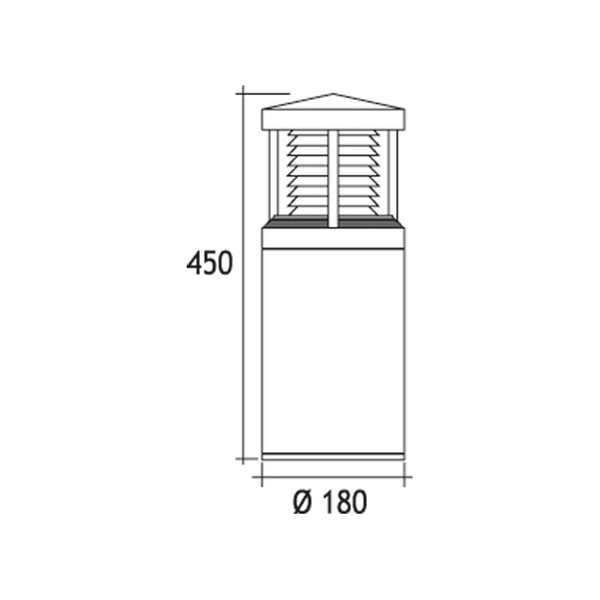

      Dion 5 Ground (45cm)
    • Power - Current
      23W
    • Voltage
      240 V A.C
    • IP
      IP65
    • Lamp
      ELECTRONİC FLUO. 23W E27
    • Lampholder
      -
  • Compare
    147211
    • Product Name
      Dion 5 Ground (45cm)
    • Power - Current
      26W
    • Voltage
      240 V A.C
    • IP
      IP65
    • Lamp
      FLUO. 26W
    • Lampholder
      G24 q-3
  • Compare
    147221
    • Product Name
      Dion 5 Ground (45cm)
    • Power - Current
      35W
    • Voltage
      240 V A.C
    • IP
      IP65
    • Lamp
      LINEAR LED 4 x 350 mA (12W)
    • Lampholder
      -
  • Compare
    147301
    • Product Name

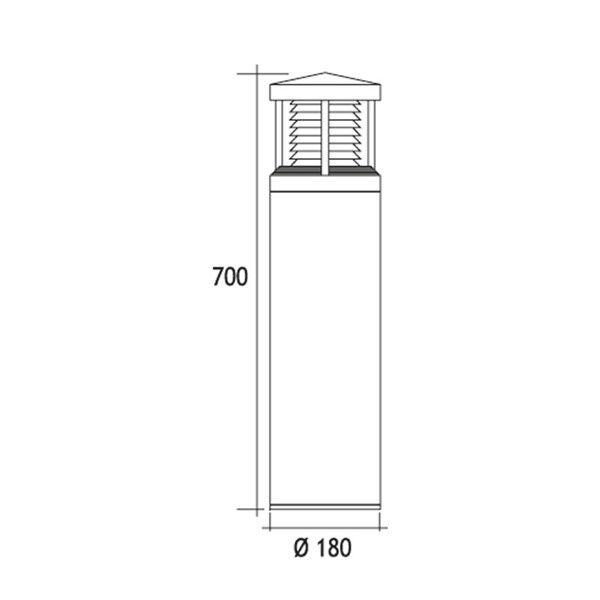

      Dion 5 Ground (70cm)
    • Power - Current
      23W
    • Voltage
      240 V A.C
    • IP
      IP65
    • Lamp
      ELECTRONİC FLUO. 23W E27
    • Lampholder
      -
  • Compare
    147311
    • Product Name
      Dion 5 Ground (70cm)
    • Power - Current
      26W
    • Voltage
      240 V A.C
    • IP
      IP65
    • Lamp
      FLUO. 26W
    • Lampholder
      G24 q-3
  • Compare
    147321
    • Product Name
      Dion 5 Ground (70cm)
    • Power - Current
      35W
    • Voltage
      240 V A.C
    • IP
      IP65
    • Lamp
      LINEAR LED 4 x 350 mA (12W)
    • Lampholder
      -
  • Compare
    147401
    • Product Name

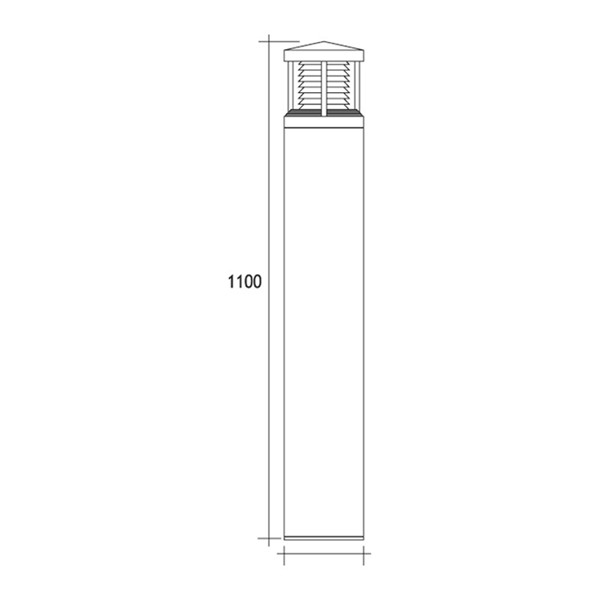

      Dion 5 Ground (110 cm)
    • Power - Current
      23W
    • Voltage
      240 V A.C
    • IP
      IP65
    • Lamp
      ELECTRONIC FLUO. 23W 3 E27
    • Lampholder
      -
  • Compare
    147411
    • Product Name
      Dion 5 Ground (110 cm)
    • Power - Current
      26W
    • Voltage
      240 V A.C
    • IP
      IP65
    • Lamp
      FLUO. 26W
    • Lampholder
      G24 q-3
  • Compare
    147421
    • Product Name
      Dion 5 Ground (110cm)
    • Power - Current
      35W
    • Voltage
      240 V A.C
    • IP
      IP65
    • Lamp
      LINEAR LED 4 x 350 mA (12W)
    • Lampholder
      -
