TEOS

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    Polycarbonate
  • Screws
    316L Stainless steel
  • Glands
    2 x PG 13.5
  • Cover
    Die cast aluminium
  • Cable
    0.5m 3x0,75 mm H05VV-F
  • Recessing Tube
    Electrostatic powder paint
EMFA’s Teos 3 Recessed Drive Over LED Fixture is specially designed to deliver high output LED light to ground surfaces of roads, carparks and pathways. This heavy duty fixture is designed to withstand the weight of large vehicles. Its robust construction allows for a maximum static load of 5000kg. The body and head of the fixture are made of die cast aluminium, while the recessing tube is made of steel to withstand the repeated impact of driving vehicles’ tires. The high power LEDs are positioned and angled to provide maximum light output. The electronic LED driver is housed in the base of the fixture. The fixture comes with 2 x PG13.5 cable glands and 0.5m cable.

PRODUCT LIST & DOWNLOAD

  • Compare
    180101
    • Product Name

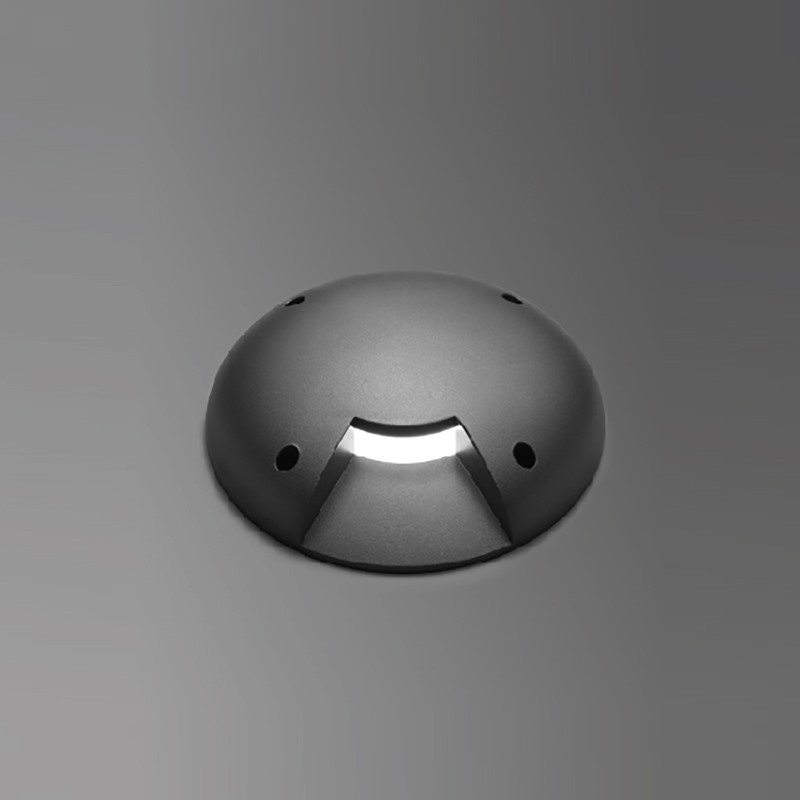

      Teos - Mono
    • Power - Current
      1x350 mA (4W) LED
    • Color
      3000 K
    • Lumen
      165 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    180102
    • Product Name
      Teos - Mono
    • Power - Current
      1x350 mA (4W) LED
    • Color
      5000 K
    • Lumen
      192 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    180111
    • Product Name

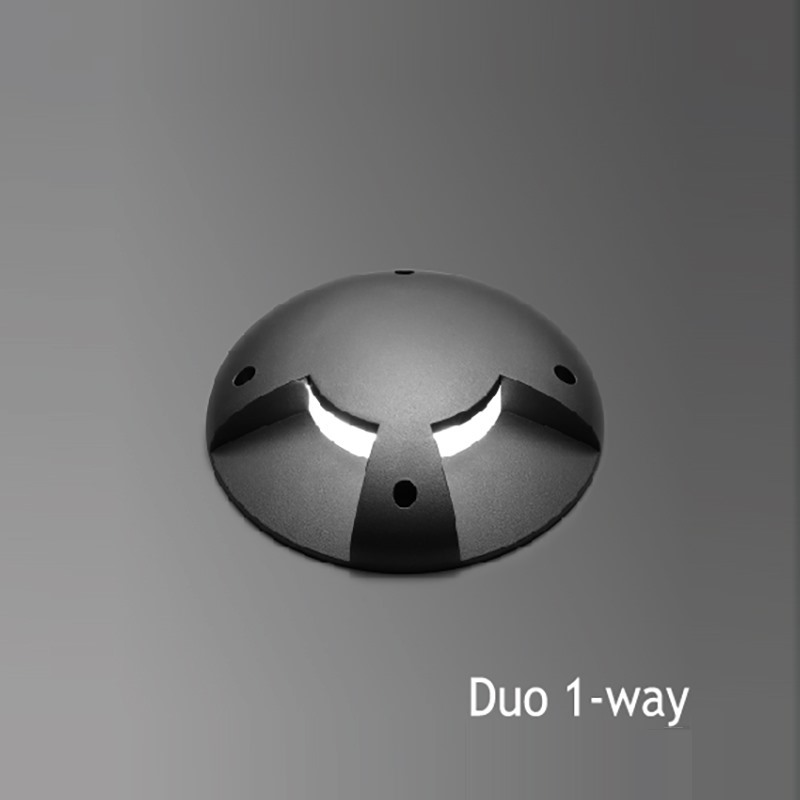

      Teos - Duo 1-way
    • Power - Current
      2x350 mA (8W) LED
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Lumen
      330 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    180112
    • Product Name
      Teos - Duo 1-way
    • Power - Current
      2x350 mA (8W) LED
    • Color
      5000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Lumen
      384 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    180121
    • Product Name
      Teos - Duo 1-way
    • Power - Current
      2x350 mA (8W) LED
    • Color
      3000 K
    • Lumen
      330 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    180122
    • Product Name
      Teos - Duo 1-way
    • Power - Current
      2x350 mA (8W) LED
    • Color
      5000 K
    • Lumen
      384 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    180131
    • Product Name

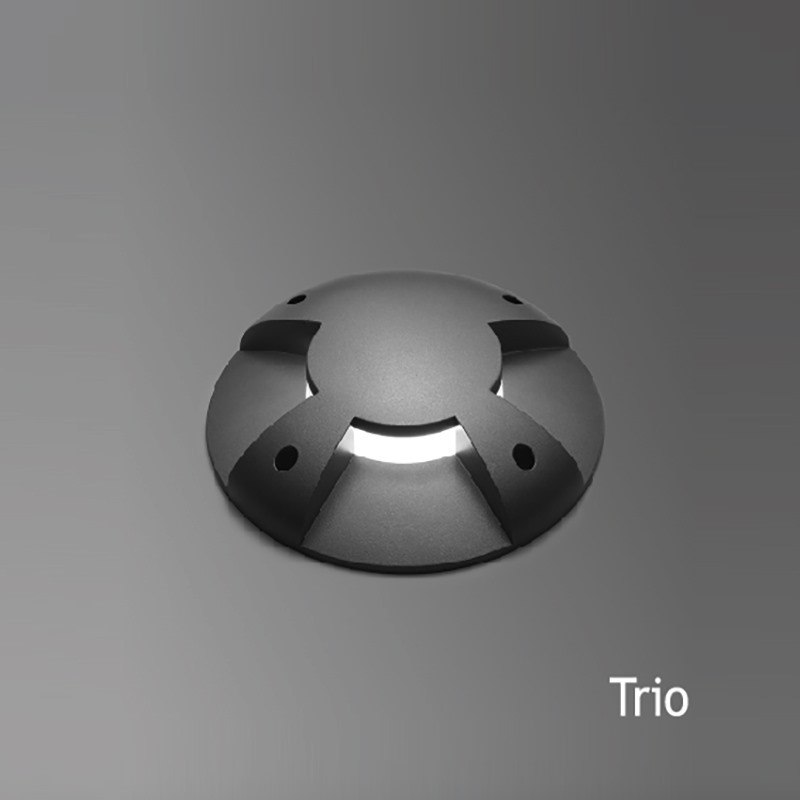

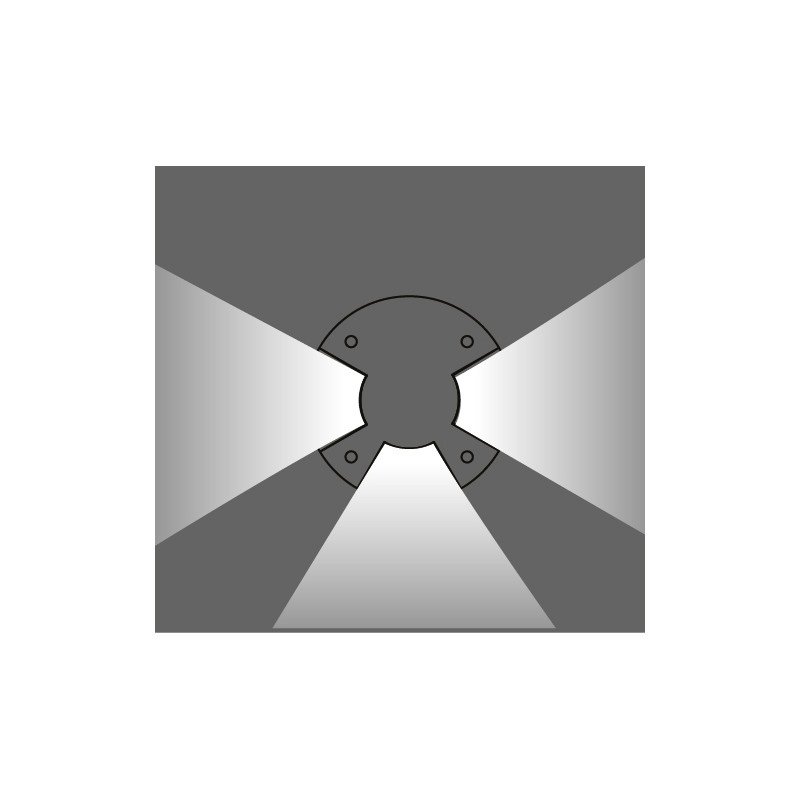

      Teos - Trio
    • Power - Current
      3x350 mA (12W) LED
    • Color
      3000 K
    • Lumen
      495 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    180132
    • Product Name
      Teos - Trio
    • Power - Current
      3x350 mA (12W) LED
    • Color
      5000 K
    • Lumen
      576 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    180141
    • Product Name

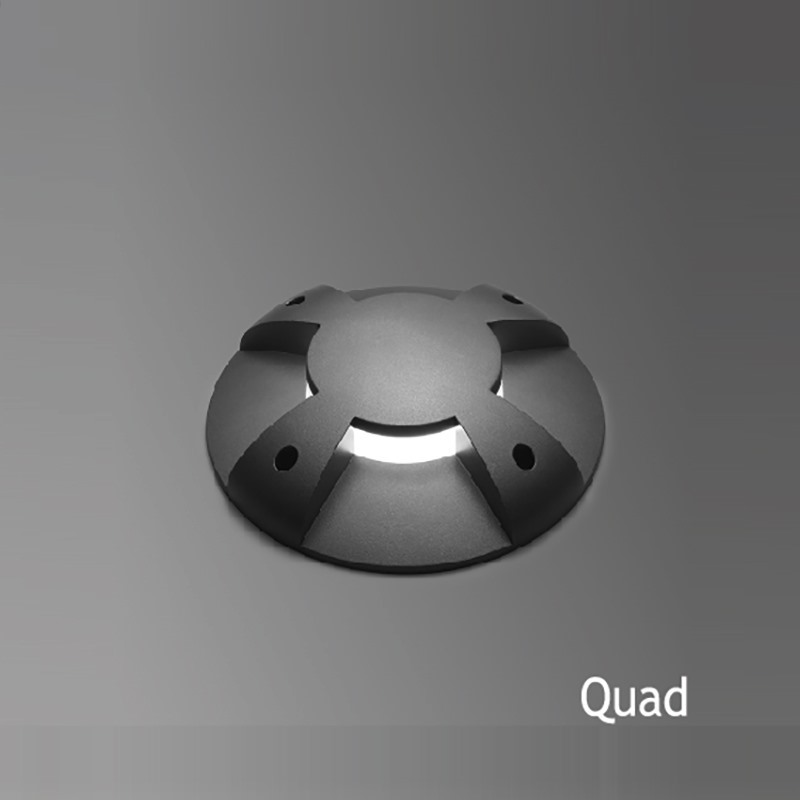

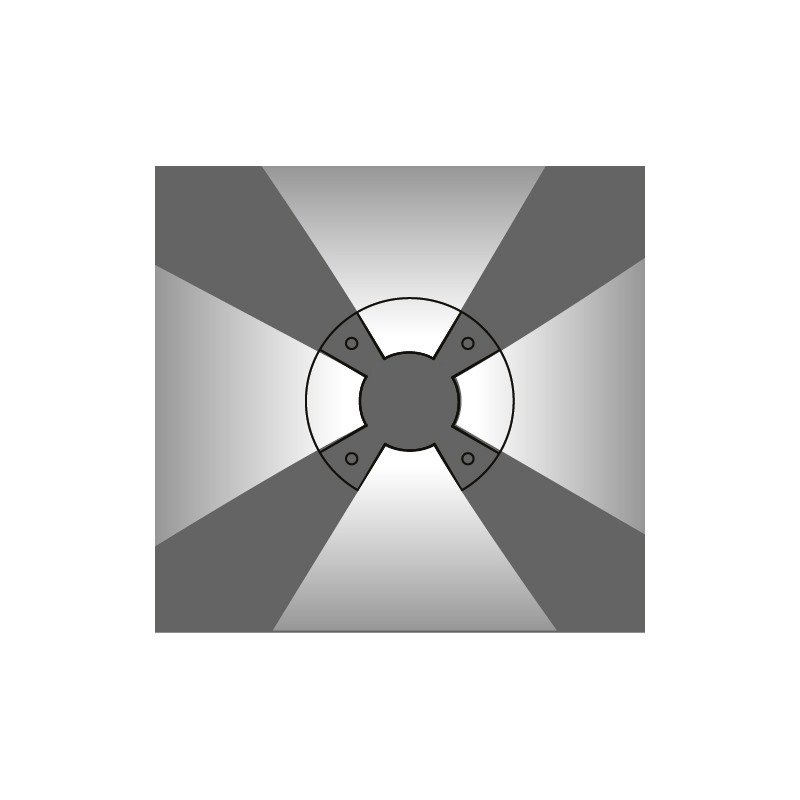

      Teos - Quad
    • Power - Current
      4x350 mA (16W) LED
    • Color
      3000 K
    • Lumen
      660 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    180142
    • Product Name
      Teos - Quad
    • Power - Current
      4x350 mA (16W) LED
    • Color
      5000 K
    • Lumen
      768 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • LED
      Linear LEDs
