DARA 4 - Spots

  • Technical Specifications
  • Body
    Die cast aluminium
  • Product Name
    DARA 4 - Spots
  • Pipe
    Aluminium Profile
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Paint
    Electrostatic powder
ORDER FORM
"Customization" is EMFA's standard
EMFA offers many combinations for each fixture, ass all fixtures are made in house. A combination of 6 standard paint colors, 8 LED colors, 2 wattages, and 5 or more lenses and reflectors are available to make the fixture suitable for the required application. This is done without increasing lead-time and is available for large as well as small quantities.

ACCESSORIES & IMAGES

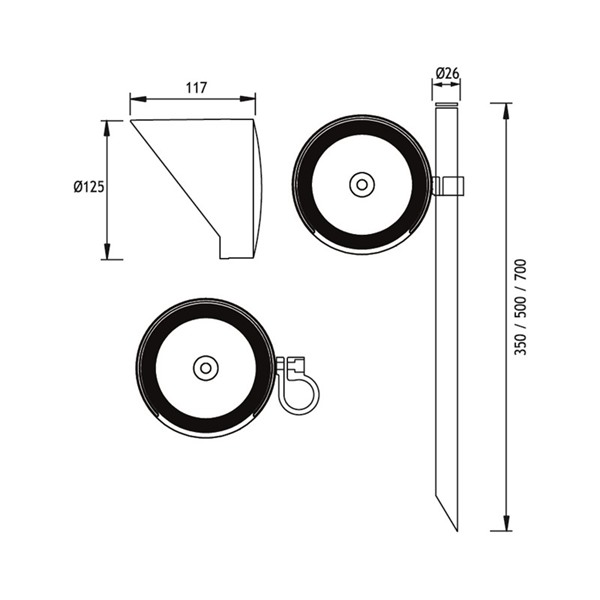

PRODUCT DRAWINGS

  • DARA 4 - Spots
  • DARA 4 - Spots

PRODUCT LIST & DOWNLOAD

  • Compare
    DARA 4 - Single (350 mm)
    • Product Name
      DARA 4 - Single (350 mm)
    • Code Number
      557001
    • Power - Current
      16W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1520 lm
    • IP
      IP65
  • Compare
    DARA 4 - Single (350 mm)
    • Product Name
      DARA 4 - Single (350 mm)
    • Code Number
      557002
    • Power - Current
      16W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1590 lm
    • IP
      IP65
  • Compare
    DARA 4 - Single (500 mm)
    • Product Name
      DARA 4 - Single (500 mm)
    • Code Number
      557101
    • Power - Current
      16W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1520 lm
    • IP
      IP65
  • Compare
    DARA 4 - Single (500 mm)
    • Product Name
      DARA 4 - Single (500 mm)
    • Code Number
      557102
    • Power - Current
      16W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1590 lm
    • IP
      IP65
  • Compare
    DARA 4 - Single (700 mm)
    • Product Name
      DARA 4 - Single (700 mm)
    • Code Number
      557201
    • Power - Current
      16W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1520 lm
    • IP
      IP65
  • Compare
    DARA 4 - Single (700 mm)
    • Product Name
      DARA 4 - Single (700 mm)
    • Code Number
      557202
    • Power - Current
      16W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1590 lm
    • IP
      IP65
  • Compare
    DARA 4 - Twin (350 mm)
    • Product Name
      DARA 4 - Twin (350 mm)
    • Code Number
      558001
    • Power - Current
      2x16W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1520 lm
    • IP
      IP65
  • Compare
    DARA 4 - Twin (350 mm)
    • Product Name
      DARA 4 - Twin (350 mm)
    • Code Number
      558002
    • Power - Current
      2x16W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1590 lm
    • IP
      IP65
  • Compare
    DARA 4 - Twin (500 mm)
    • Product Name
      DARA 4 - Twin (500 mm)
    • Code Number
      558101
    • Power - Current
      2x16W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1520 lm
    • IP
      IP65
  • Compare
    DARA 4 - Twin (500 mm)
    • Product Name
      DARA 4 - Twin (500 mm)
    • Code Number
      558102
    • Power - Current
      2x16W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1590 lm
    • IP
      IP65
  • Compare
    DARA 4 - Twin (700 mm)
    • Product Name
      DARA 4 - Twin (700 mm)
    • Code Number
      558201
    • Power - Current
      2x16W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1520 lm
    • IP
      IP65
  • Compare
    DARA 4 - Twin (700 mm)
    • Product Name
      DARA 4 - Twin (700 mm)
    • Code Number
      558202
    • Power - Current
      2x16W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1590 lm
    • IP
      IP65
