SANTOS 4 - Drive Over

  • Technical Specifications
  • Product Name
    SANTOS 4 - Drive Over
  • Body
    Die cast aluminium or aluminium profile with die cast aluminium bottom and connection box.
  • Gaskets
    Silicone
  • Diffusers
    8 mm Tempered Glass
  • Screws
    316L Stainless steel
  • Glands
    2 x PG 13.5
  • Cover
    316L Stainless steel
  • Recessing Tube
    Polyamide 6
"Customization” is EMFA’s standard"

EMFA’s Santos flush mounted series is specially designed to deliver low-glare lighting to facades, columns, monuments and trees with minimal installation depth and narrow trim. The fixture is made of a combination of 316L stainless steel and die cast aluminium. A shield above the lamp reduces the glare of the metal halide lamps. A mirror finish reflector allows for a narrow to wide beam light output. An anti-slip glass is available upon request.

PRODUCT LIST & DOWNLOAD

  • Compare
    SANTOS 4 - Led - Drive Over
    • Product Name
      SANTOS 4 - Led - Drive Over
    • Code Number
      550201
    • Power - Current
      18 W
    • Kelvin
      3000 K
    • Real Lumen Output
      1710 lm
    • Lens
      10° / 23° / 36°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      Ø 208 x 299.5 mm
  • Compare
    SANTOS 4 - Led - Drive Over
    • Product Name
      SANTOS 4 - Led - Drive Over
    • Code Number
      550202
    • Power - Current
      18 W
    • Kelvin
      4000 K
    • Real Lumen Output
      1744 lm
    • Lens
      10° / 23° / 36°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      Ø 208 x 299.5 mm
  • Compare
    SANTOS 4 - Led - Drive Over
    • Product Name
      SANTOS 4 - Led - Drive Over
    • Code Number
      550212
    • Power - Current
      9 W
    • Kelvin
      3000 K
    • Real Lumen Output
      855 lm
    • Lens
      10° / 23° / 36°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      Ø 208 x 299.5 mm
  • Compare
    SANTOS 4 - Led - Drive Over
    • Product Name
      SANTOS 4 - Led - Drive Over
    • Code Number
      550211
    • Power - Current
      9 W
    • Kelvin
      2700 K
    • Real Lumen Output
      855 lm
    • Lens
      10° / 23° / 36°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      Ø 208 x 299.5 mm
  • Compare
    SANTOS 4 - Led - Drive Over
    • Product Name
      SANTOS 4 - Led - Drive Over
    • Code Number
      550213
    • Power - Current
      9 W
    • Kelvin
      4000 K
    • Real Lumen Output
      872 lm
    • Lens
      10° / 23° / 36°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      Ø 208 x 299.5 mm
  • Compare
    SANTOS 4 - Led - Drive Over
    • Product Name
      SANTOS 4 - Led - Drive Over
    • Code Number
      550203
    • Power - Current
      18 W
    • Kelvin
      2700 K
    • Real Lumen Output
      1710 lm
    • Lens
      10° / 23° / 36°
    • CRI
      >80 or >90
    • Mac Adam
      3
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      Ø 208 x 299.5 mm
  • Compare
    SANTOS 4 - Led Lamp - Drive Over
    • Product Name
      SANTOS 4 - Led Lamp - Drive Over
    • Code Number
      550101
    • Power - Current
      PAR30 Led Lamp
    • Lampholder
      E27 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67

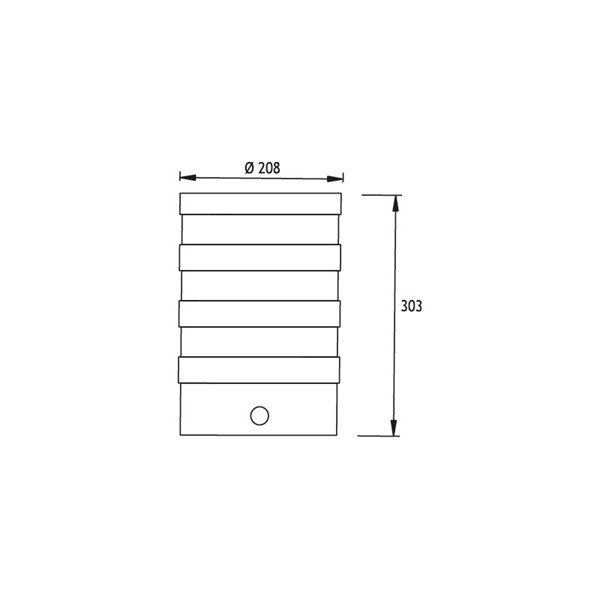

    • Dimension
      Ø 208 x 303 mm
  • Compare
    SANTOS 4 - Metal Halide - Drive Over
    • Product Name
      SANTOS 4 - Metal Halide - Drive Over
    • Code Number
      550111
    • Power - Current
      20 W Metal Halide
    • Lampholder
      G 8.5 Fixed
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67

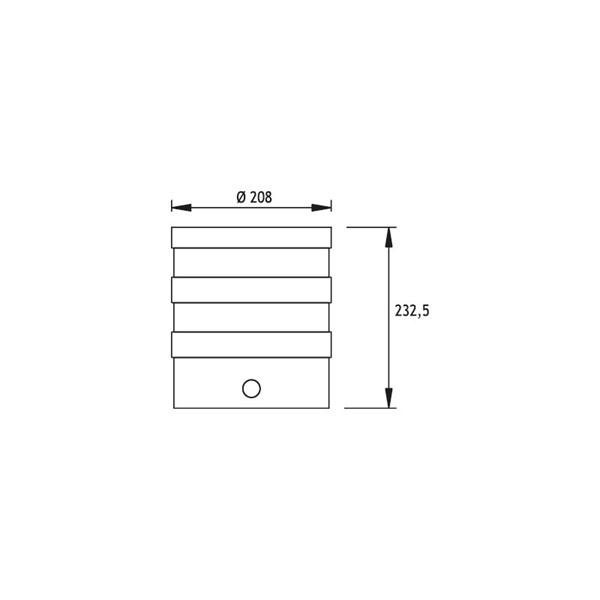

    • Dimension
      Ø 208 x 232.5 mm
  • Compare
    SANTOS 4 - Metal Halide - Drive Over
    • Product Name
      SANTOS 4 - Metal Halide - Drive Over
    • Code Number
      550121
    • Power - Current
      35 W Metal Halide
    • Lampholder
      G 8.5 Fixed
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      Ø 208 x 232.5 mm
  • Compare
    SANTOS 4 - Metal Halide - Drive Over
    • Product Name
      SANTOS 4 - Metal Halide - Drive Over
    • Code Number
      550131
    • Power - Current
      70 W Metal Halide
    • Lampholder
      G 8.5 Fixed
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      Ø 208 x 232.5 mm
  • Compare
    SANTOS 4 - Metal Halide - Drive Over
    • Product Name
      SANTOS 4 - Metal Halide - Drive Over
    • Code Number
      550151
    • Power - Current
      35 W Metal Halide
    • Lampholder
      Gx8.5 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      Ø 208 x 303 mm
  • Compare
    SANTOS 4 - Metal Halide - Drive Over
    • Product Name
      SANTOS 4 - Metal Halide - Drive Over
    • Code Number
      550161
    • Power - Current
      70 W Metal Halide
    • Lampholder
      Gx8.5 Adjustable
    • Voltage
      240 VAC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      Ø 208 x 303 mm
