DARA 3 - Spots

  • Technical Specifications
  • Body
    Die cast aluminium
  • Product Name
    DARA 3 - Spots
  • Pipe
    Aluminium Profile
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Paint
    Electrostatic powder
ORDER FORM
"Customization" is EMFA's standard
EMFA offers many combinations for each fixture, ass all fixtures are made in house. A combination of 6 standard paint colors, 8 LED colors, 2 wattages, and 5 or more lenses and reflectors are available to make the fixture suitable for the required application. This is done without increasing lead-time and is available for large as well as small quantities.

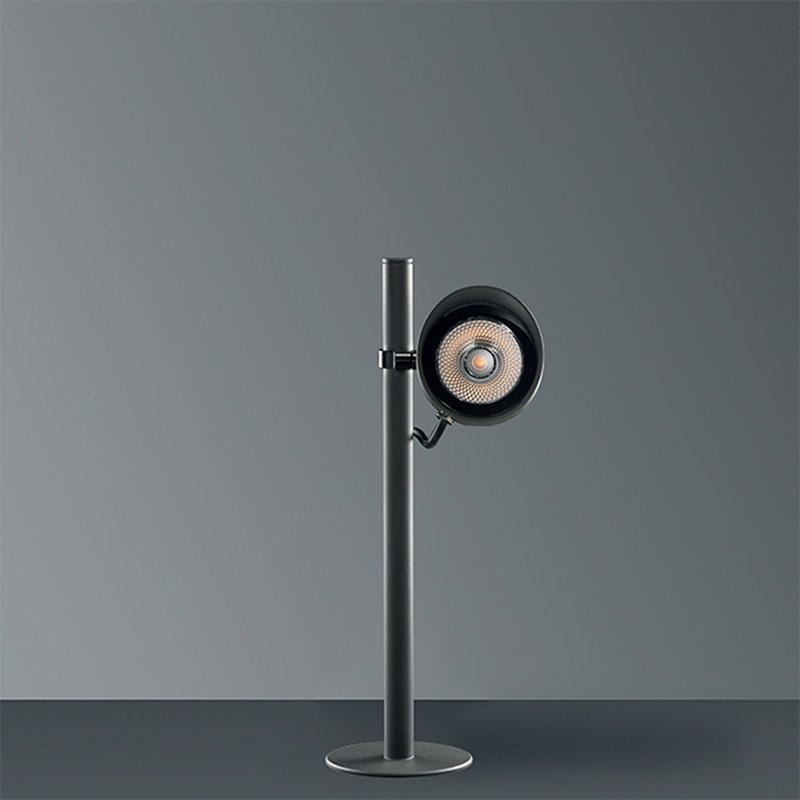

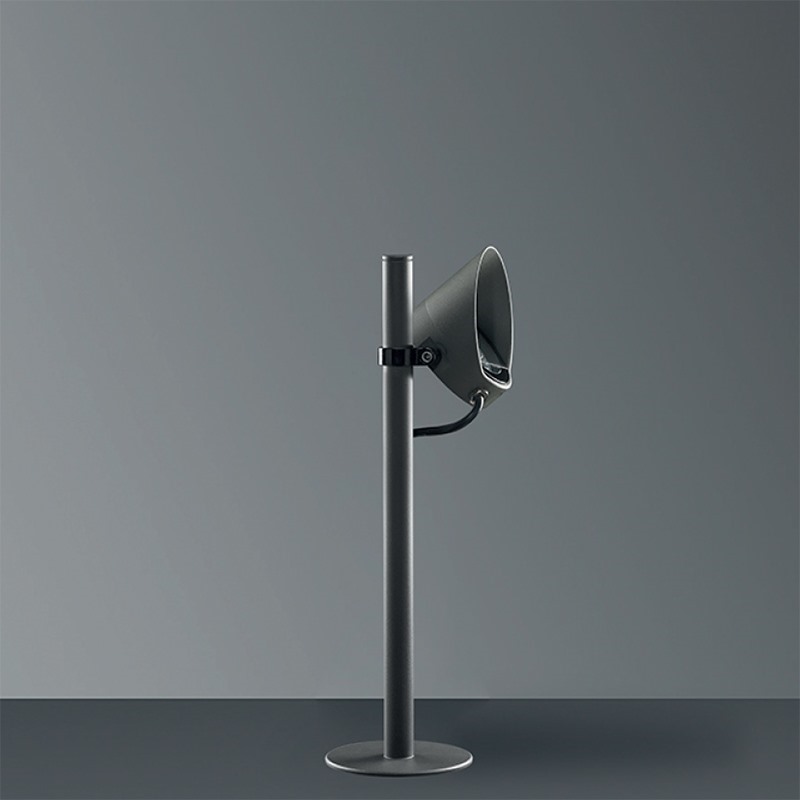

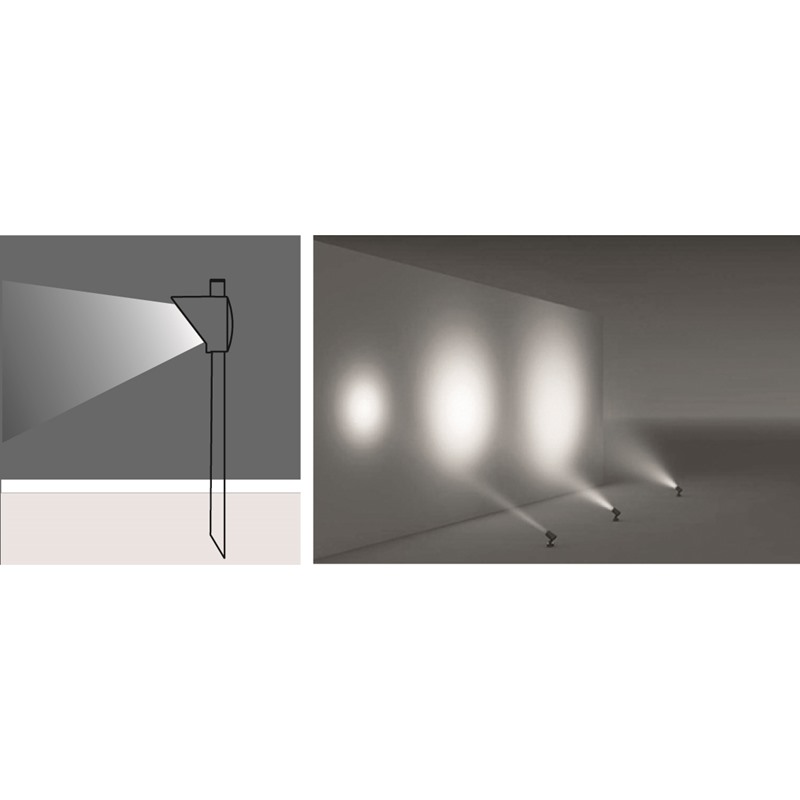

ACCESSORIES & IMAGES

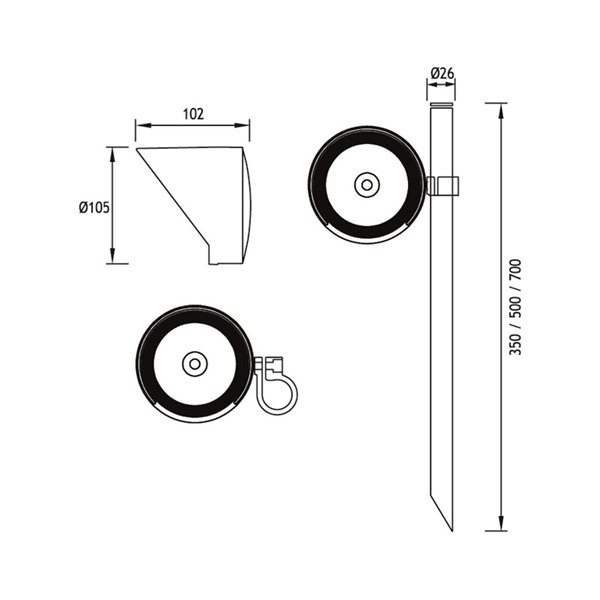

PRODUCT DRAWINGS

  • DARA 3 - Spots
  • DARA 3 - Spots

PRODUCT LIST & DOWNLOAD

  • Compare
    DARA 3 - Single (350 mm)
    • Product Name
      DARA 3 - Single (350 mm)
    • Code Number
      555001
    • Power - Current
      11W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1045 lm
    • IP
      IP65
  • Compare
    DARA 3 - Single (350 mm)
    • Product Name
      DARA 3 - Single (350 mm)
    • Code Number
      555002
    • Power - Current
      11W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1070 lm
    • IP
      IP65
  • Compare
    DARA 3 - Single (500 mm)
    • Product Name
      DARA 3 - Single (500 mm)
    • Code Number
      555101
    • Power - Current
      11W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1045 lm
    • IP
      IP65
  • Compare
    DARA 3 - Single (500 mm)
    • Product Name
      DARA 3 - Single (500 mm)
    • Code Number
      555102
    • Power - Current
      11W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1070 lm
    • IP
      IP65
  • Compare
    DARA 3 - Single (700 mm)
    • Product Name
      DARA 3 - Single (700 mm)
    • Code Number
      555201
    • Power - Current
      11W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1045 lm
    • IP
      IP65
  • Compare
    DARA 3 - Single (700 mm)
    • Product Name
      DARA 3 - Single (700 mm)
    • Code Number
      555202
    • Power - Current
      11W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1070 lm
    • IP
      IP65
  • Compare
    DARA 3 - Twin (350 mm)
    • Product Name
      DARA 3 - Twin (350 mm)
    • Code Number
      556001
    • Power - Current
      2x11W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1045 lm
    • IP
      IP65
  • Compare
    DARA 3 - Twin (350 mm)
    • Product Name
      DARA 3 - Twin (350 mm)
    • Code Number
      556002
    • Power - Current
      2x11W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1070 lm
    • IP
      IP65
  • Compare
    DARA 3 - Twin (500 mm)
    • Product Name
      DARA 3 - Twin (500 mm)
    • Code Number
      556101
    • Power - Current
      2x11W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1045 lm
    • IP
      IP65
  • Compare
    DARA 3 - Twin (500 mm)
    • Product Name
      DARA 3 - Twin (500 mm)
    • Code Number
      556102
    • Power - Current
      2x11W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1070 lm
    • IP
      IP65
  • Compare
    DARA 3 - Twin (700 mm)
    • Product Name
      DARA 3 - Twin (700 mm)
    • Code Number
      556201
    • Power - Current
      2x11W LED
    • Color
      2700/3000 K
    • Kelvin
      3000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1045 lm
    • IP
      IP65
  • Compare
    DARA 3 - Twin (700 mm)
    • Product Name
      DARA 3 - Twin (700 mm)
    • Code Number
      556202
    • Power - Current
      2x11W LED
    • Color
      4000 K
    • Kelvin
      4000K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Voltage
      240V A.C (24V AC or DC on request)
    • Cable
      Potted 2m 2x0,75 H03 VV-F
    • Real Lumen Output
      1070 lm
    • IP
      IP65
