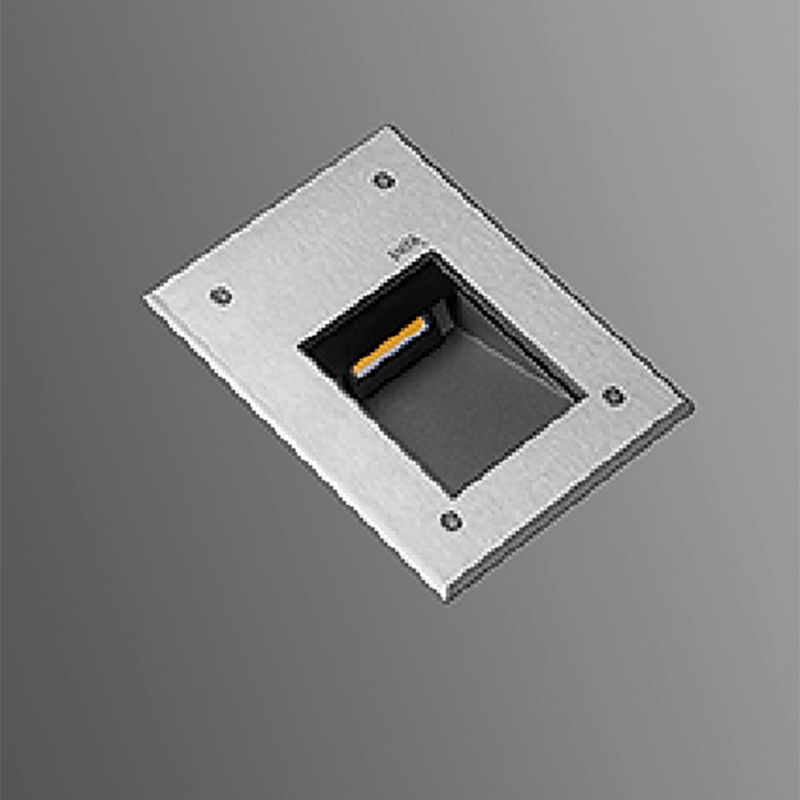

ANI 1-2-3-4 Asym - Walk Over

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    8 mm Tempered Glass
  • Screws
    316L Stainless Steel
  • Cover
    316L Stainless steel
ORDER FORM
Customization” is EMFA’s standard

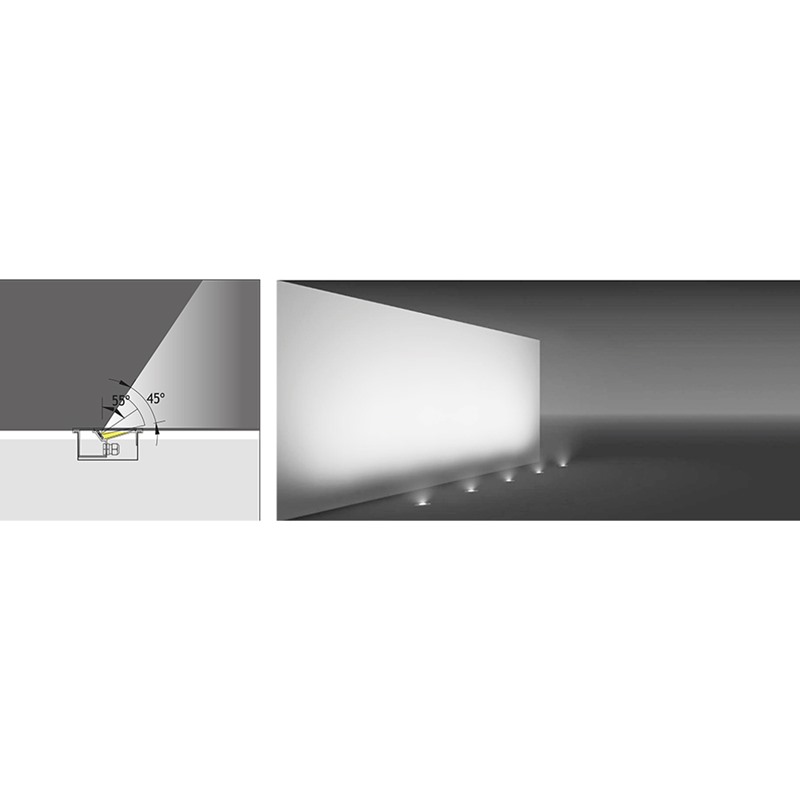

EMFA’s Ani step mounted series is specially designed to deliver low-glare lighting to facades, columns, monuments, and trees with minimal installation depth and narrow trim. The fixture is made of a combination of 316L stainless steel and die cast aluminium. The tilted design reduces the glare of the LED’s The Linear LEDs with special lenseS gives excellent wallwashing effect. An anti-slip glass is available upon request.

ACCESSORIES & IMAGES

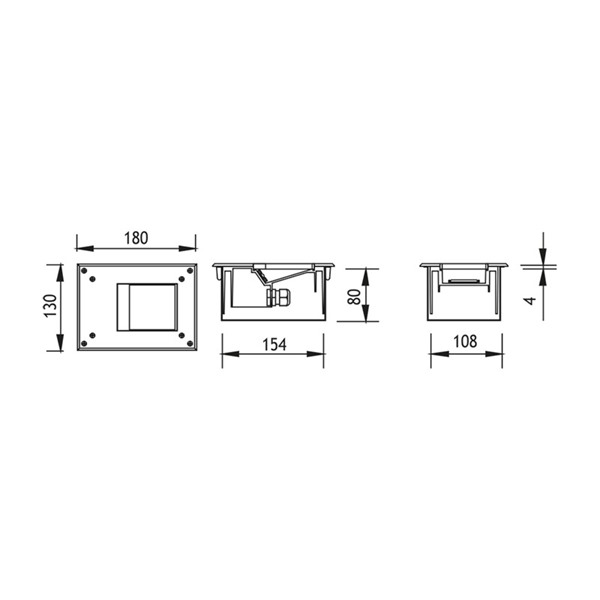

PRODUCT DRAWINGS

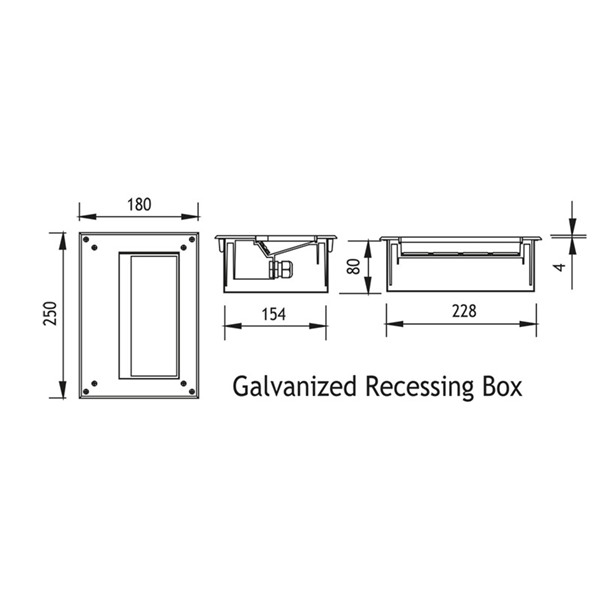

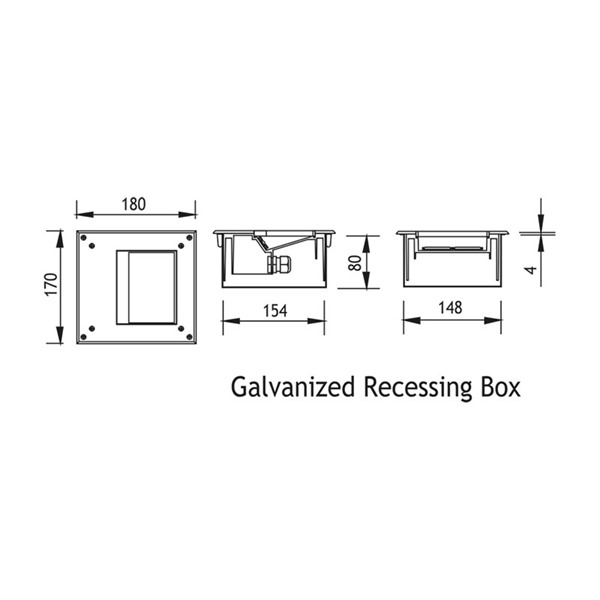

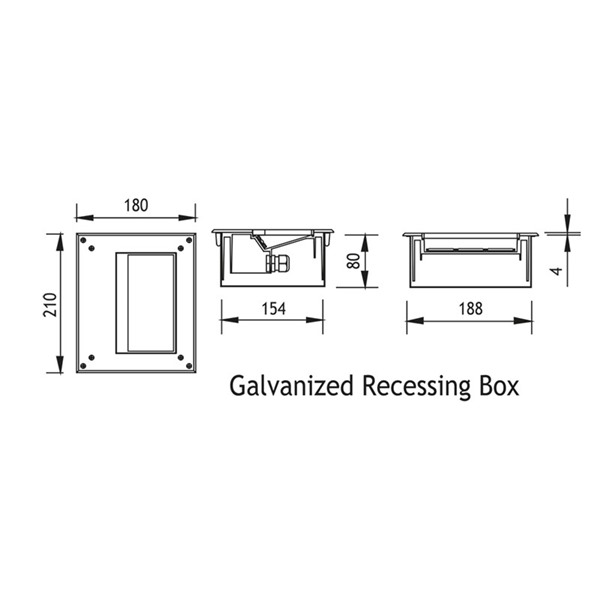

  • Galvanized Recessing Box
  • Asym. Glass
  • Trenched Glass
  • Milky Glass
  • Clear Glass
  • ANI 1

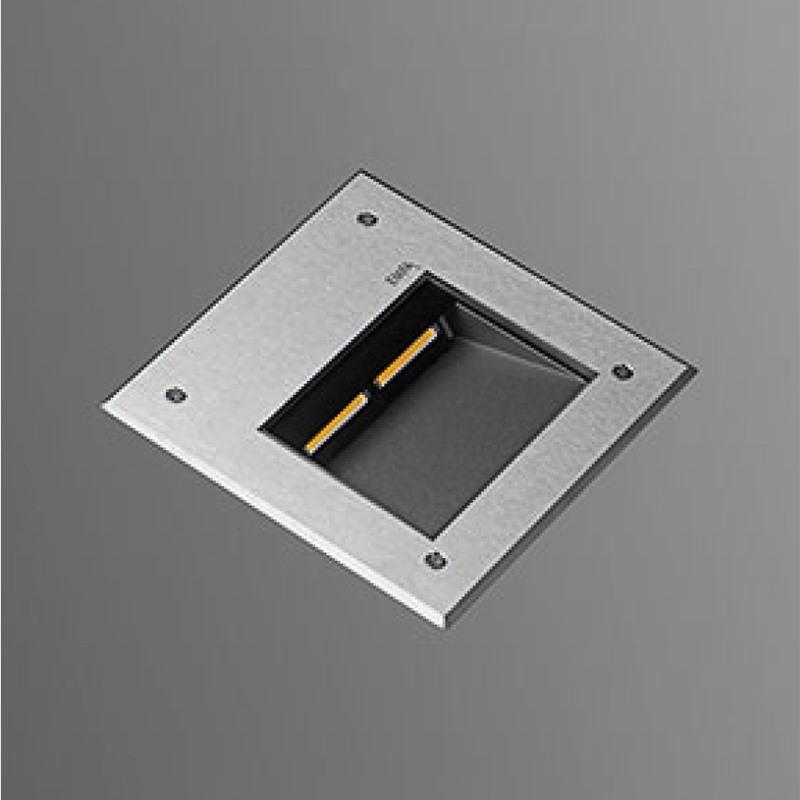

  • ANI 2

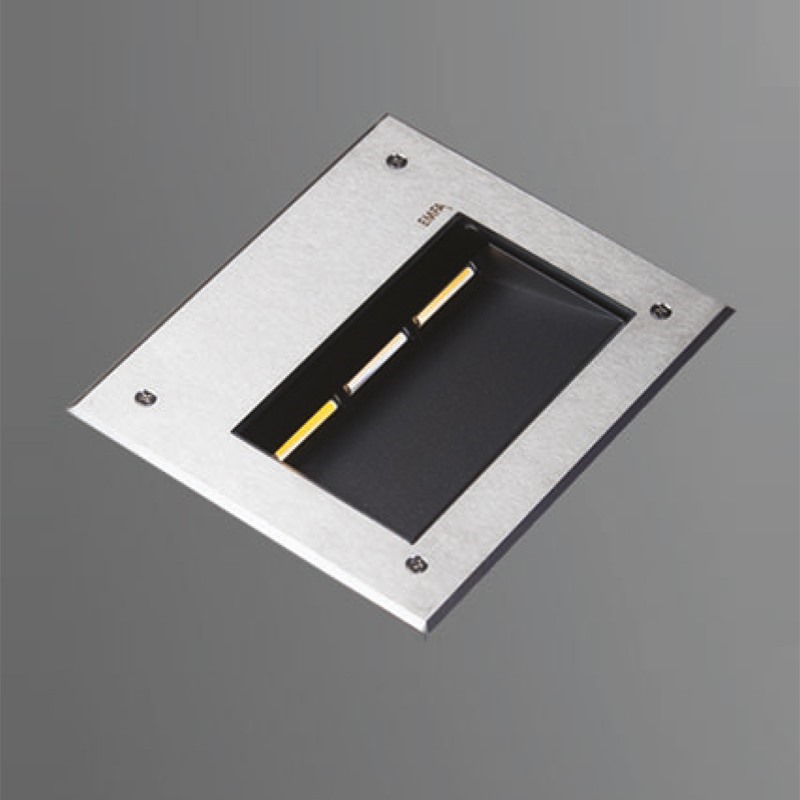

  • ANI 3

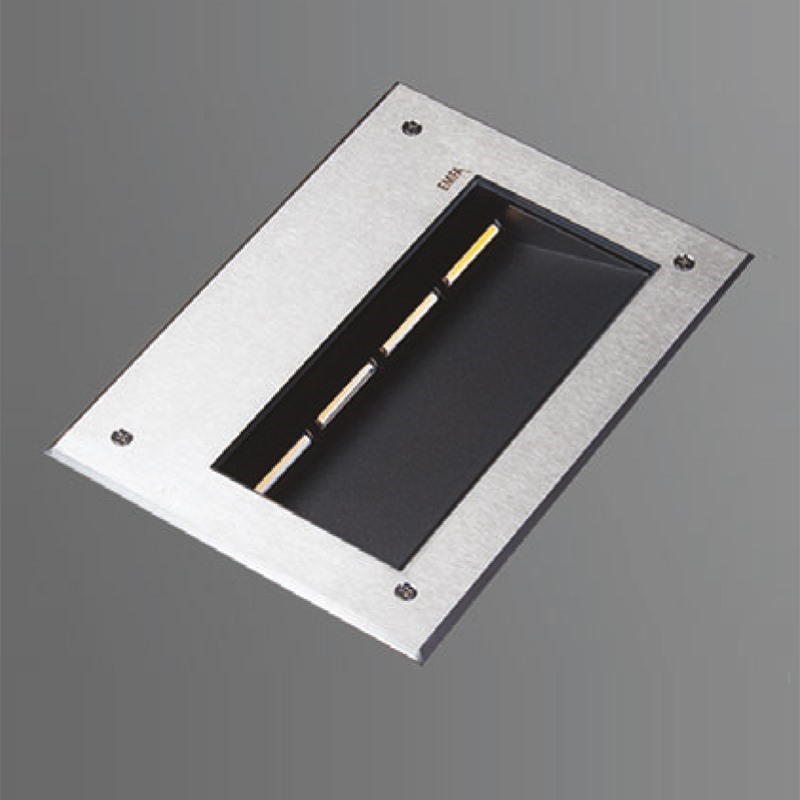

  • ANI 4

PRODUCT LIST & DOWNLOAD

  • Compare
    ANI 1 - Asym - Walk Over
    • Product Name
      ANI 1 - Asym - Walk Over
    • Code Number
      451501
    • Power - Current
      6 W
    • Kelvin
      3000 K
    • Real Lumen Output
      570 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 1 - Asym - Walk Over
    • Product Name
      ANI 1 - Asym - Walk Over
    • Code Number
      451511
    • Power - Current
      12 W
    • Kelvin
      3000 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 1 - Asym - Walk Over
    • Product Name
      ANI 1 - Asym - Walk Over
    • Code Number
      451502
    • Power - Current
      6 W
    • Kelvin
      4000 K
    • Real Lumen Output
      581 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 1 - Asym - Walk Over
    • Product Name
      ANI 1 - Asym - Walk Over
    • Code Number
      451512
    • Power - Current
      12 W
    • Kelvin
      4000 K
    • Real Lumen Output
      1195 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 1 - Asym - Walk Over
    • Product Name
      ANI 1 - Asym - Walk Over
    • Code Number
      451503
    • Power - Current
      6 W
    • Kelvin
      2700 K
    • Real Lumen Output
      570 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 1 - Asym - Walk Over
    • Product Name
      ANI 1 - Asym - Walk Over
    • Code Number
      451513
    • Power - Current
      12 W
    • Kelvin
      2700 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 130 mm / Recessing Box 154 x 108 x 80 mm
  • Compare
    ANI 2 - Asym - Walk Over
    • Product Name
      ANI 2 - Asym - Walk Over
    • Code Number
      451603
    • Power - Current
      6 W
    • Kelvin
      2700 K
    • Real Lumen Output
      570 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare
    ANI 2 - Asym - Walk Over
    • Product Name
      ANI 2 - Asym - Walk Over
    • Code Number
      451613
    • Power - Current
      12 W
    • Kelvin
      2700 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare

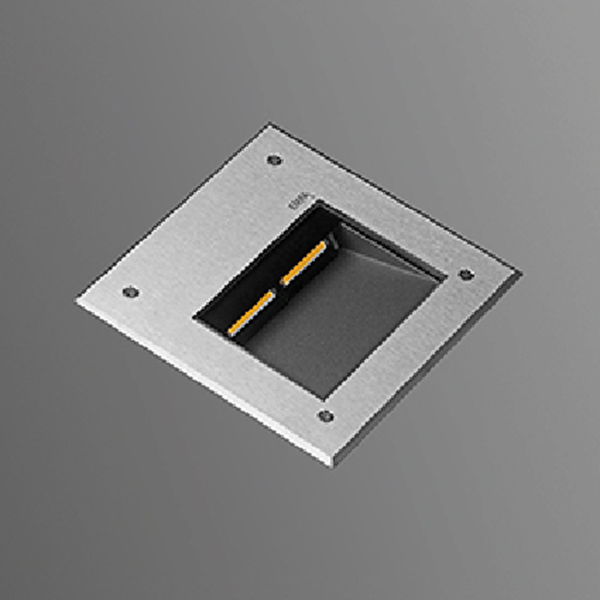

    ANI 2 - Asym - Walk Over
    • Product Name
      ANI 2 - Asym - Walk Over
    • Code Number
      451601
    • Power - Current
      6 W
    • Kelvin
      3000 K
    • Real Lumen Output
      570 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare
    ANI 2 - Asym - Walk Over
    • Product Name
      ANI 2 - Asym - Walk Over
    • Code Number
      451611
    • Power - Current
      12 W
    • Kelvin
      3000 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare
    ANI 2 - Asym - Walk Over
    • Product Name
      ANI 2 - Asym - Walk Over
    • Code Number
      451602
    • Power - Current
      6 W
    • Kelvin
      4000 K
    • Real Lumen Output
      581 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare
    ANI 2 - Asym - Walk Over
    • Product Name
      ANI 2 - Asym - Walk Over
    • Code Number
      451612
    • Power - Current
      12 W
    • Kelvin
      4000 K
    • Real Lumen Output
      1195 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 170 mm / Recessing Box 154 x 148 x 80 mm
  • Compare
    ANI 3 - Asym - Walk Over
    • Product Name
      ANI 3 - Asym - Walk Over
    • Code Number
      451701
    • Power - Current
      12 W
    • Kelvin
      3000 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare

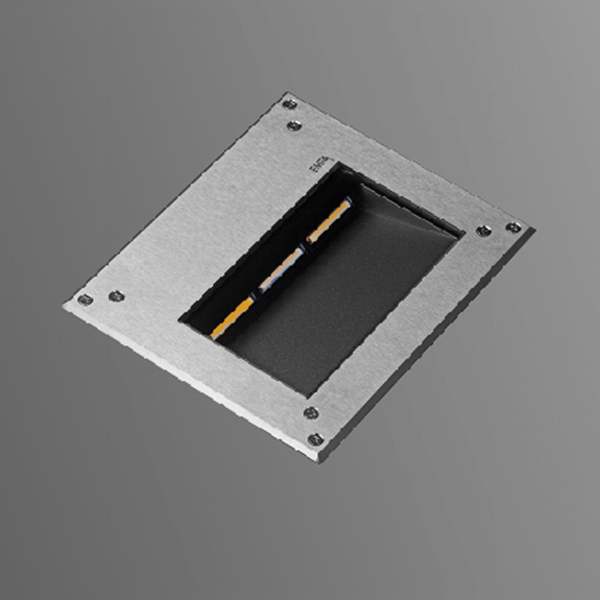

    ANI 3 - Asym - Walk Over
    • Product Name
      ANI 3 - Asym - Walk Over
    • Code Number
      451711
    • Power - Current
      24 W
    • Kelvin
      3000 K
    • Real Lumen Output
      2280 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare
    ANI 3 - Asym - Walk Over
    • Product Name
      ANI 3 - Asym - Walk Over
    • Code Number
      451702
    • Power - Current
      12 W
    • Kelvin
      4000 K
    • Real Lumen Output
      1195 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare
    ANI 3 - Asym - Walk Over
    • Product Name
      ANI 3 - Asym - Walk Over
    • Code Number
      451712
    • Power - Current
      24 W
    • Kelvin
      4000 K
    • Real Lumen Output
      2320 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare
    ANI 3 - Asym - Walk Over
    • Product Name
      ANI 3 - Asym - Walk Over
    • Code Number
      451703
    • Power - Current
      12 W
    • Kelvin
      2700 K
    • Real Lumen Output
      1140 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare
    ANI 3 - Asym - Walk Over
    • Product Name
      ANI 3 - Asym - Walk Over
    • Code Number
      451713
    • Power - Current
      24 W
    • Kelvin
      2700 K
    • Real Lumen Output
      2280 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 210 mm / Recessing Box 154 x 188 x 80 mm
  • Compare
    ANI 4 - Asym - Walk Over
    • Product Name
      ANI 4 - Asym - Walk Over
    • Code Number
      451821
    • Power - Current
      24 W
    • Kelvin
      2700 K
    • Real Lumen Output
      2280 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
  • Compare
    ANI 4 - Asym - Walk Over
    • Product Name
      ANI 4 - Asym - Walk Over
    • Code Number
      451831
    • Power - Current
      24 W
    • Kelvin
      3000 K
    • Real Lumen Output
      2280 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
  • Compare
    ANI 4 - Asym - Walk Over
    • Product Name
      ANI 4 - Asym - Walk Over
    • Code Number
      451801
    • Power - Current
      24 W
    • Kelvin
      4000 K
    • Real Lumen Output
      2320 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
  • Compare

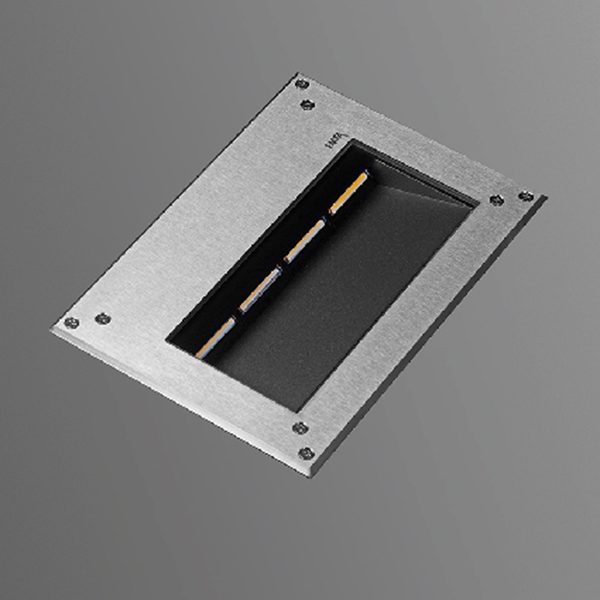

    ANI 4 - Asym - Walk Over
    • Product Name
      ANI 4 - Asym - Walk Over
    • Code Number
      451811
    • Power - Current
      36 W
    • Kelvin
      2700 K
    • Real Lumen Output
      3420 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
  • Compare
    ANI 4 - Asym - Walk Over
    • Product Name
      ANI 4 - Asym - Walk Over
    • Code Number
      451802
    • Power - Current
      36 W
    • Kelvin
      3000 K
    • Real Lumen Output
      3420 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
  • Compare
    ANI 4 - Asym - Walk Over
    • Product Name
      ANI 4 - Asym - Walk Over
    • Code Number
      451812
    • Power - Current
      36 W
    • Kelvin
      4000 K
    • Real Lumen Output
      3520 lm
    • Tilt
      Asymmetrical
    • Beam Angle
      45° / 60° / 90°
    • CRI
      >80
    • Mac Adam
      3
    • LED
      Linear LEDs
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Cable
      Potted 1m 3x1 H03 VV-F
    • IP
      IP67
    • Dimension
      180 x 250 mm / Recessing Box 154 x 228 x 80 mm
Emfa 2025 © All Rights Reserved.
KVKK Politikası | ONKV Politikası
web design grimor
