Gordion 2

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass with painted circumference
  • Recessing Tube
    316L Stainless steel
Customization” is EMFA’s standard

The Gordion series is an adaption of the Belkis Recessed series without the stainless steel cover. Merely a painted glass finishes the look of the fixture. Once placed inside the stainless steel tube, the fixture can only be removed with a special tool. The Gordion series is designed to light walls, facades, columns, monuments, and trees. The fixtures are made of die cast aluminium body painted with electrostatic powder paint. Tempered glass, silicone gaskets and cast resin complete the fixture to make it IP67 IK10 and withstand rough environments. A specially developed potted power cable is used to effectively bond with the cast resin and stop any water ingress. The LEDs used come in 3 different tones of white, as well as blue, red, green, amber and RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired light effect.

PRODUCT LIST & DOWNLOAD

  • Compare
    170101
    • Product Name
      Gordion 2
    • Power - Current
      3x350 mA (3W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Tilt

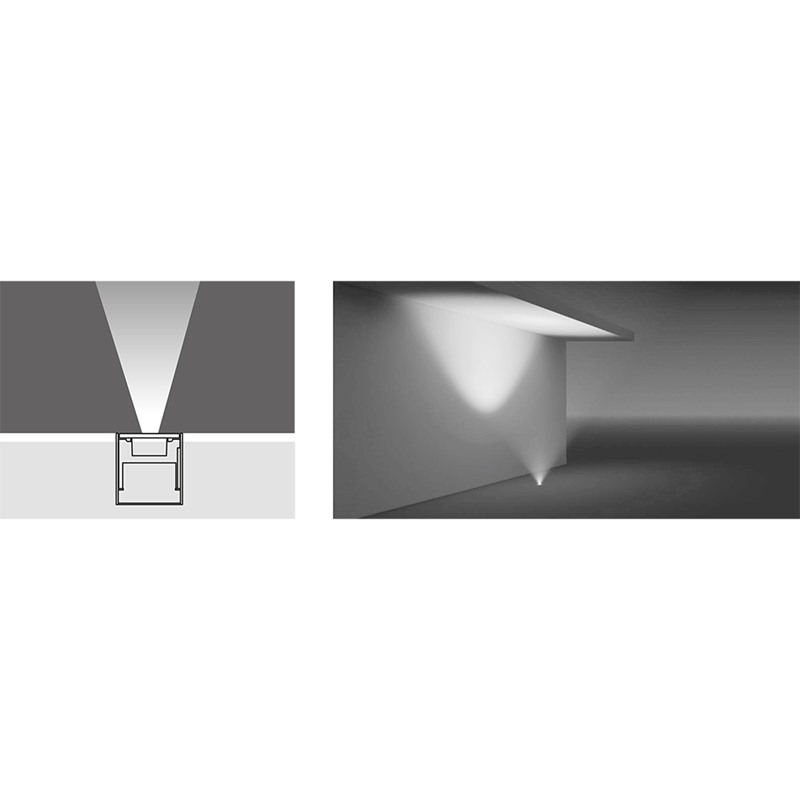

      Symmetrical
    • IP
      IP67
  • Compare
    170102
    • Product Name
      Gordion 2
    • Power - Current
      3x350 mA (3W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Tilt
      Symmetrical
    • IP
      IP67
  • Compare
    170103
    • Product Name
      Gordion 2
    • Power - Current
      3x350 mA (3W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      306 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Tilt
      Symmetrical
    • IP
      IP67
  • Compare
    170111
    • Product Name
      Gordion 2
    • Power - Current
      3x350 mA (3W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      -
    • Tilt

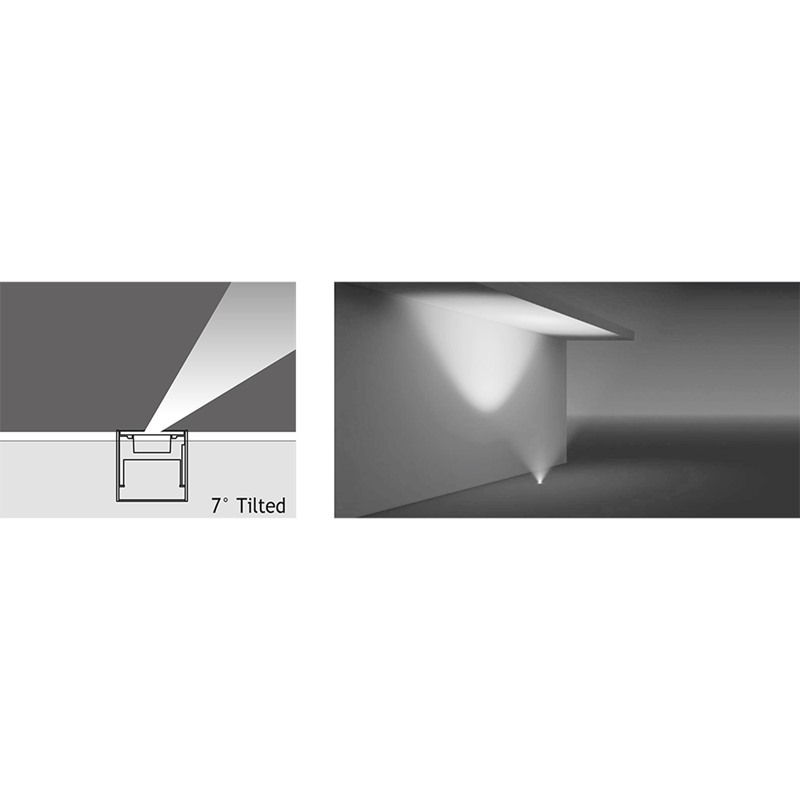

      Asymmetrical 7° Tilted
    • IP
      IP67
  • Compare
    170112
    • Product Name
      Gordion 2
    • Power - Current
      3x350 mA (3W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      -
    • Tilt
      Asymmetrical 7° Tilted
    • IP
      IP67
  • Compare
    170113
    • Product Name
      Gordion 2
    • Power - Current
      3x350 mA (3W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      306 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      -
    • Tilt
      Asymmetrical 7° Tilted
    • IP
      IP67
  • Compare
    170121
    • Product Name
      Gordion 2
    • Power - Current
      3x350 mA (3W) LED
    • Color
      -
    • Lens
      10°, 25°, 40°
    • Lumen
      -
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Tilt
      Symmetrical
    • IP
      IP67
  • Compare
    170131
    • Product Name
      Gordion 2
    • Power - Current
      3x350 mA (3W) LED
    • Color
      -
    • Lens
      10°, 25°, 40°
    • Lumen
      -
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      -
    • Tilt
      Asymmetrical 7° Tilted
    • IP
      IP67
