ANI L TYPE POLE

  • Technical Specifications
  • Pole
    Aluminium profile
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    4 mm Tempered Glass
  • Screws
    316L Stainless Steel
  • Glands
    PG 11
ORDER FORM

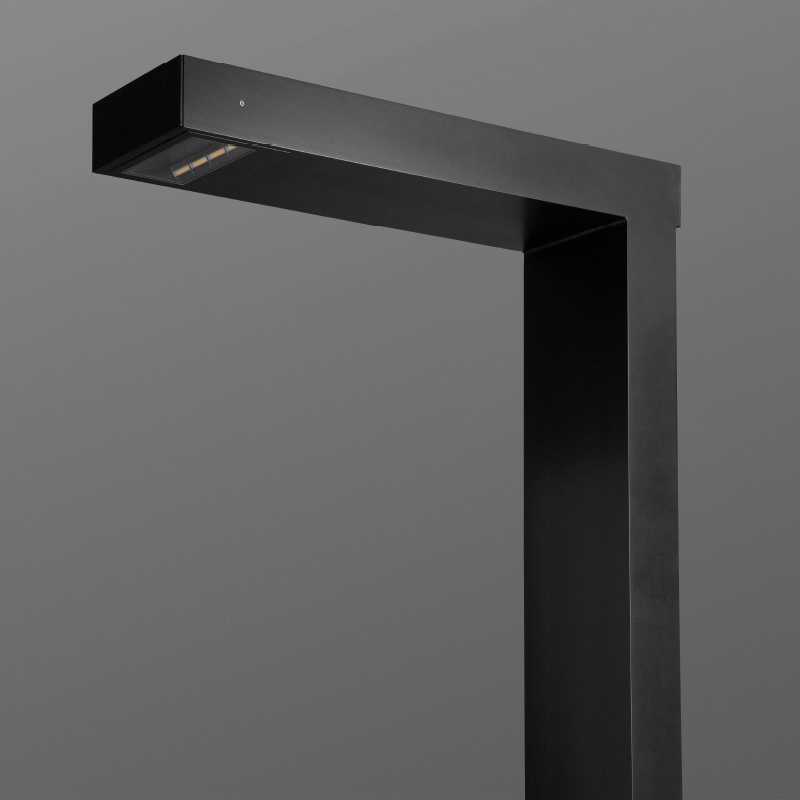

EMFA’s ANI pole mounted series have been designed for high efficiency and ease of installation incorporating the latest in LED technology and control systems. The special lens directs the light flow precisely and makes the whole luminaire system efficient. This compact and essential design is made of a combination of aluminium profile and die cast aluminium.

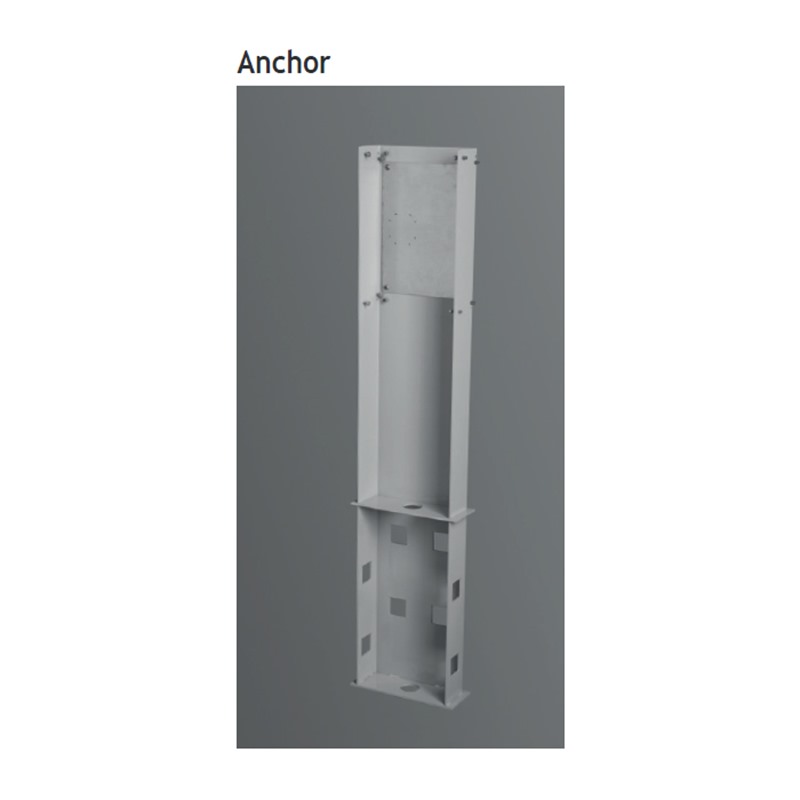

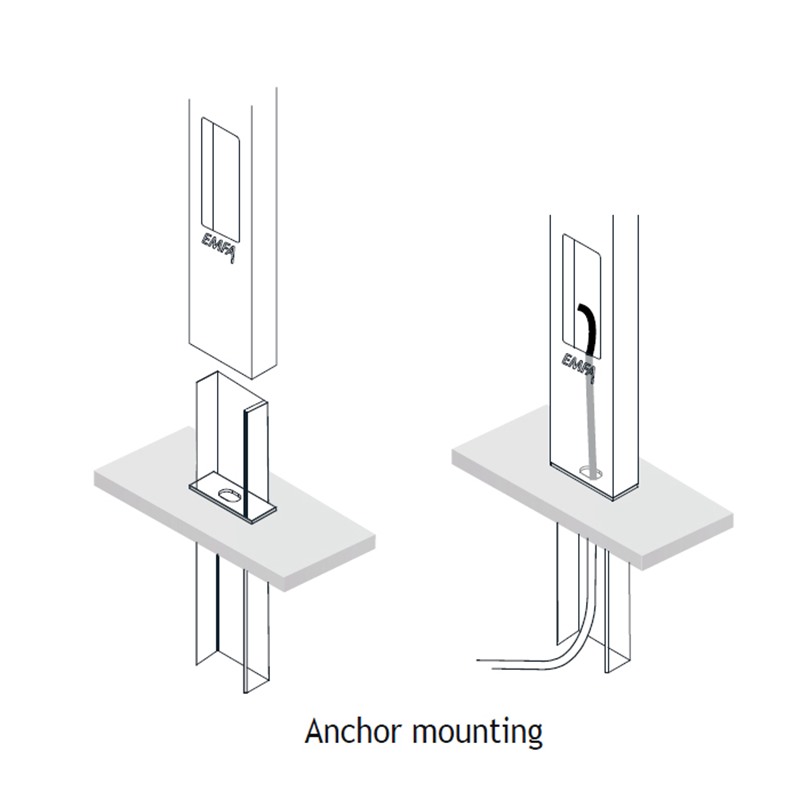

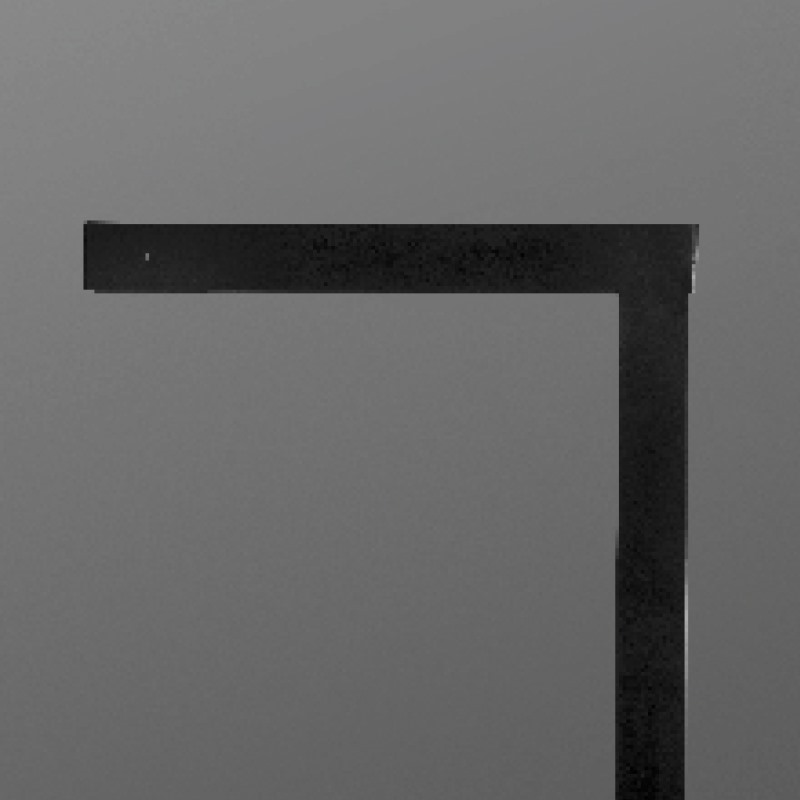

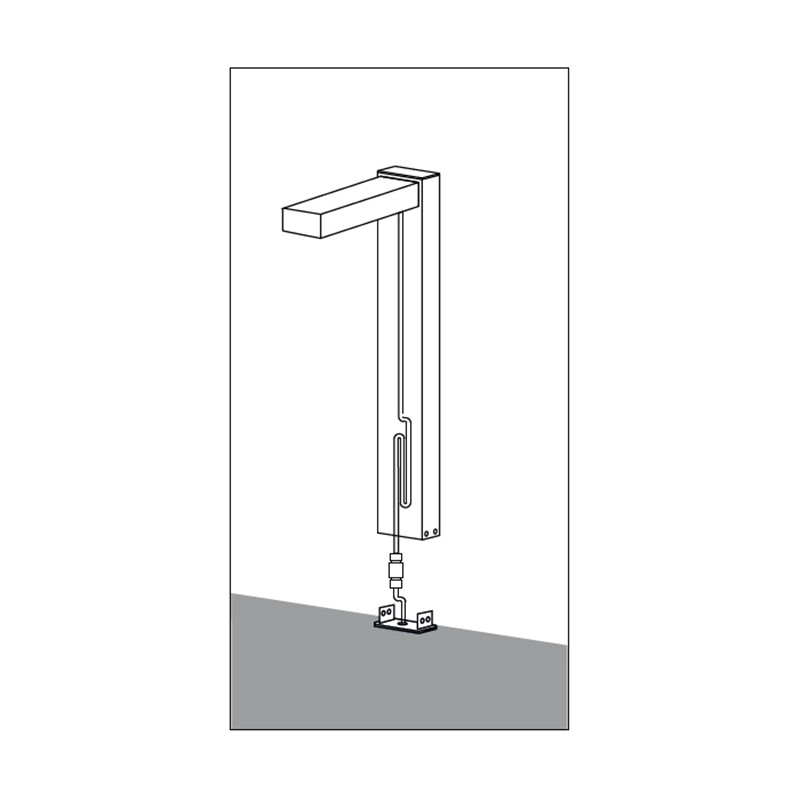

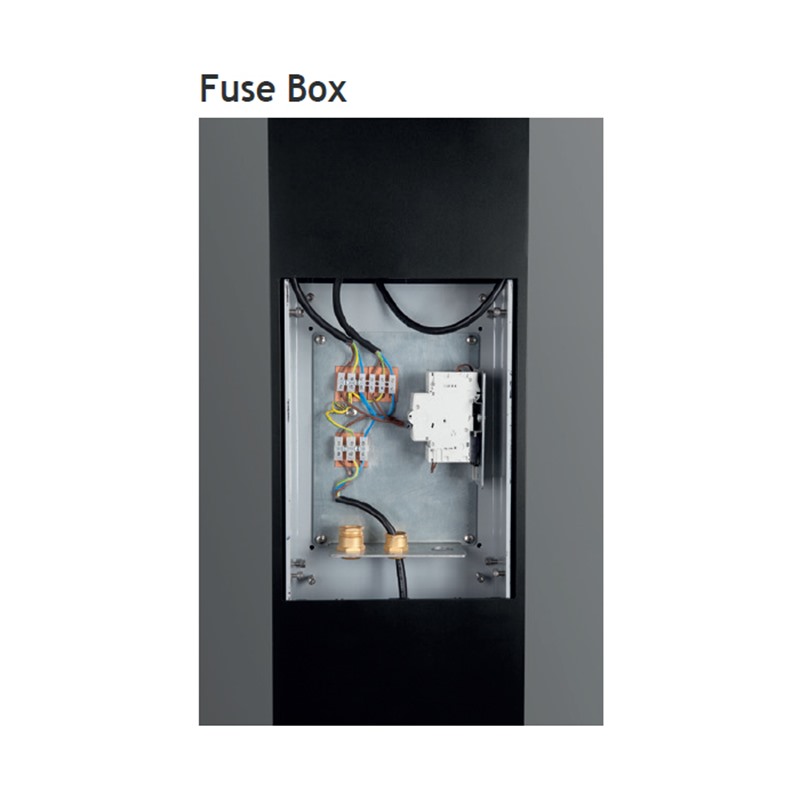

ACCESSORIES & IMAGES

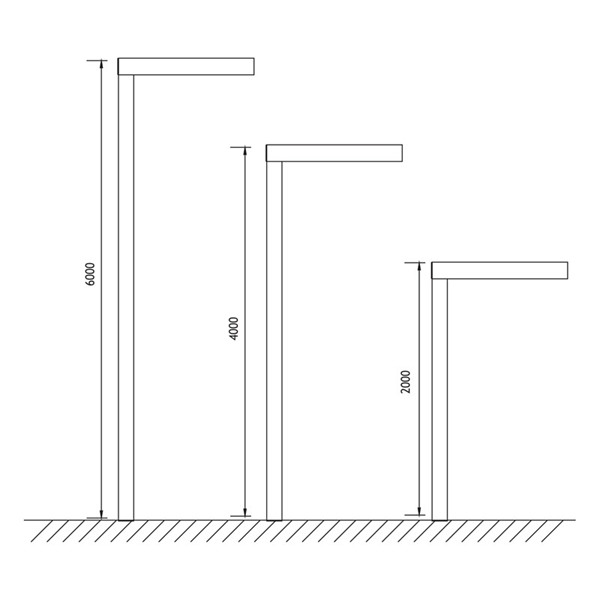

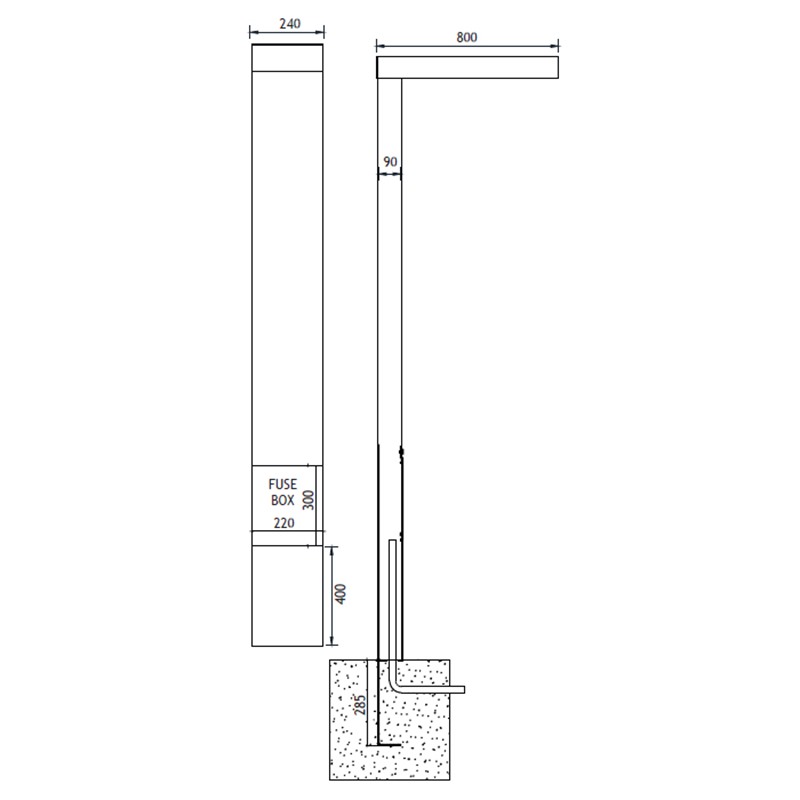

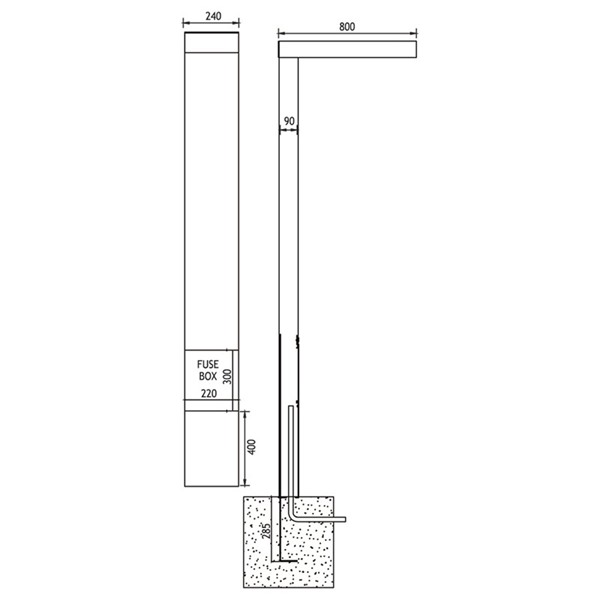

PRODUCT DRAWINGS

  • ANI L TYPE POLE
  • ANI L TYPE POLE
  • ANI L TYPE POLE
  • ANI L TYPE POLE
  • ANI L TYPE POLE
  • ANI L TYPE POLE
  • ANI L TYPE POLE

PRODUCT LIST & DOWNLOAD

  • Compare
    461001
    • Product Name
      Ani L Type Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    461002
    • Product Name
      Ani L Type Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24 W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    461011
    • Product Name
      Ani L Type Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080
    • Nominal Lumen Output
      4300
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    461012
    • Product Name
      Ani L Type Pole (2000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    461101
    • Product Name
      Ani L Type Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    461102
    • Product Name
      Ani L Type Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    461111
    • Product Name
      Ani L Type Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    461112
    • Product Name
      Ani L Type Pole (4000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    461201
    • Product Name
      Ani L Type Pole (6000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    461202
    • Product Name
      Ani L Type Pole (6000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    461211
    • Product Name
      Ani L Type Pole (6000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP65
    • LED
      Linear LEDs
  • Compare
    461212
    • Product Name
      Ani L Type Pole (6000 mm)
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48 W
    • Kelvin
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP65
    • LED
      Linear LEDs
