PENTATHLON Symmetrical

  • Technical Specifications
  • Body
    Die cast aluminium
  • Paint
    Electrostatic powder paint RAL 9016 (available in other RAL colors)
  • Gear
    Non-Dimmable electronic LED driver (1-10V Dimmable and DALI drivers available on request)
  • Cable
    0.5m exiting from top of fixture
  • Springs
    Steel for mounting in ceilings of 1-25mm thickness

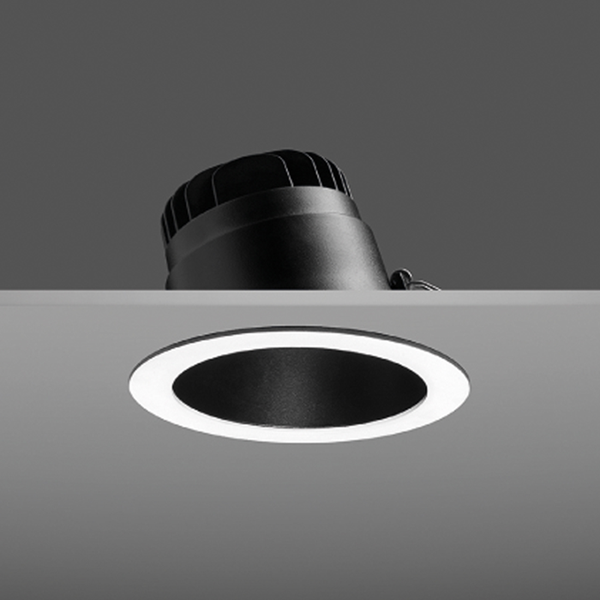

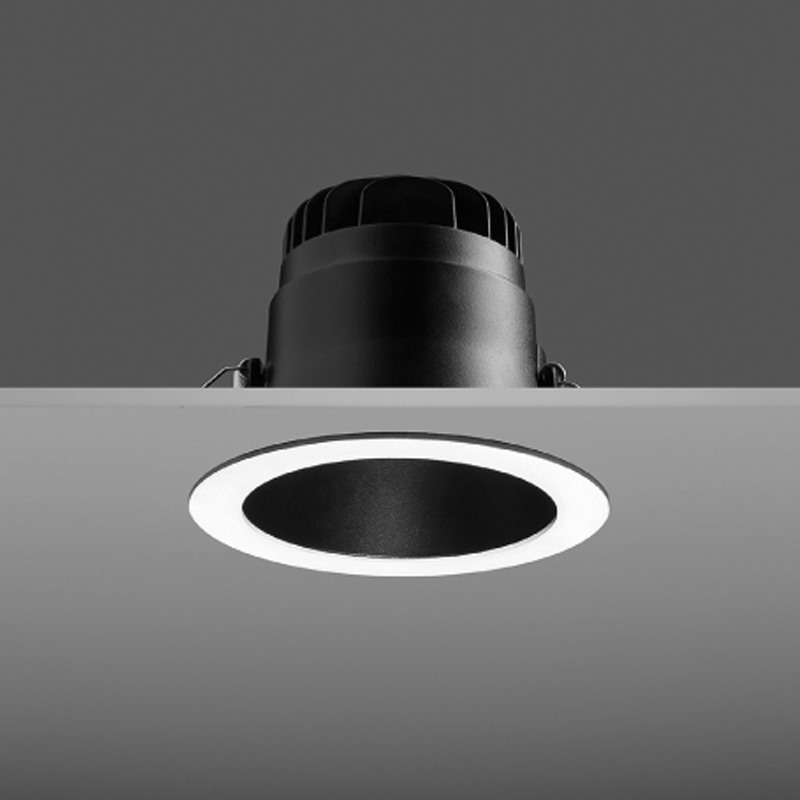

The PENTATHLON Dark Reflector LED Downlight is specially designed to provide low glare lighting in high ceiling areas. The Nichia COB chip gives out a high efficiency and high CRI (90) light. The lens that is used in the PENTATHLON allows the light to reach the ground with minimal loss from deep inside the fixture. The depth of the fixture and the clean beam of the lens is what provides the low glare of this fixture.

PRODUCT LIST & DOWNLOAD

  • Compare
    118201
    • Product Name
      PENTATHLON Symmetrical
    • Power - Current
      13W / 18W COB LED
    • Color
      3000 K
    • Lumen
      1250 lm
    • IP
      IP20
    • LED
      350 mA 13W / 500 mA 18W LED (Nichia)
  • Compare
    118202
    • Product Name
      PENTATHLON Symmetrical
    • Power - Current
      13W / 18W COB LED
    • Color
      4000 K
    • Lumen
      1375 lm
    • IP
      IP20
    • LED
      350 mA 13W / 500 mA 18W LED (Nichia)
  • Compare
    118301
    • Product Name
      PENTATHLON Symmetrical
    • Power - Current
      13W / 18W COB LED
    • Color
      3000 K
    • Lumen
      1250 lm
    • IP
      IP20
    • LED
      350 mA 13W / 500 mA 18W LED (Nichia)
  • Compare
    118302
    • Product Name
      PENTATHLON Symmetrical
    • Power - Current
      13W / 18W COB LED
    • Color
      4000 K
    • Lumen
      1375 lm
    • IP
      IP20
    • LED
      350 mA 13W / 500 mA 18W LED (Nichia)
  • Compare
    118331
    • Product Name
      PENTATHLON Symmetrical
    • Power - Current
      13W / 18W COB LED
    • Color
      3000 K
    • Lumen
      1710 lm
    • IP
      IP20
    • LED
      350 mA 13W / 500 mA 18W LED (Nichia)
  • Compare
    118332
    • Product Name
      PENTATHLON Symmetrical
    • Power - Current
      13W / 18W COB LED
    • Color
      4000 K
    • Lumen
      1880 lm
    • IP
      IP20
    • LED
      350 mA 13W / 500 mA 18W LED (Nichia)
  • Compare
    118401
    • Product Name
      PENTATHLON Symmetrical
    • Power - Current
      13W / 18W COB LED
    • Color
      3000 K
    • Lumen
      1710 lm
    • IP
      IP20
    • LED
      350 mA 13W / 500 mA 18W LED (Nichia)
  • Compare
    118402
    • Product Name
      PENTATHLON Symmetrical
    • Power - Current
      13W / 18W COB LED
    • Color
      4000 K
    • Lumen
      1880 lm
    • IP
      IP20
    • LED
      350 mA 13W / 500 mA 18W LED (Nichia)
